Central Pneumatic

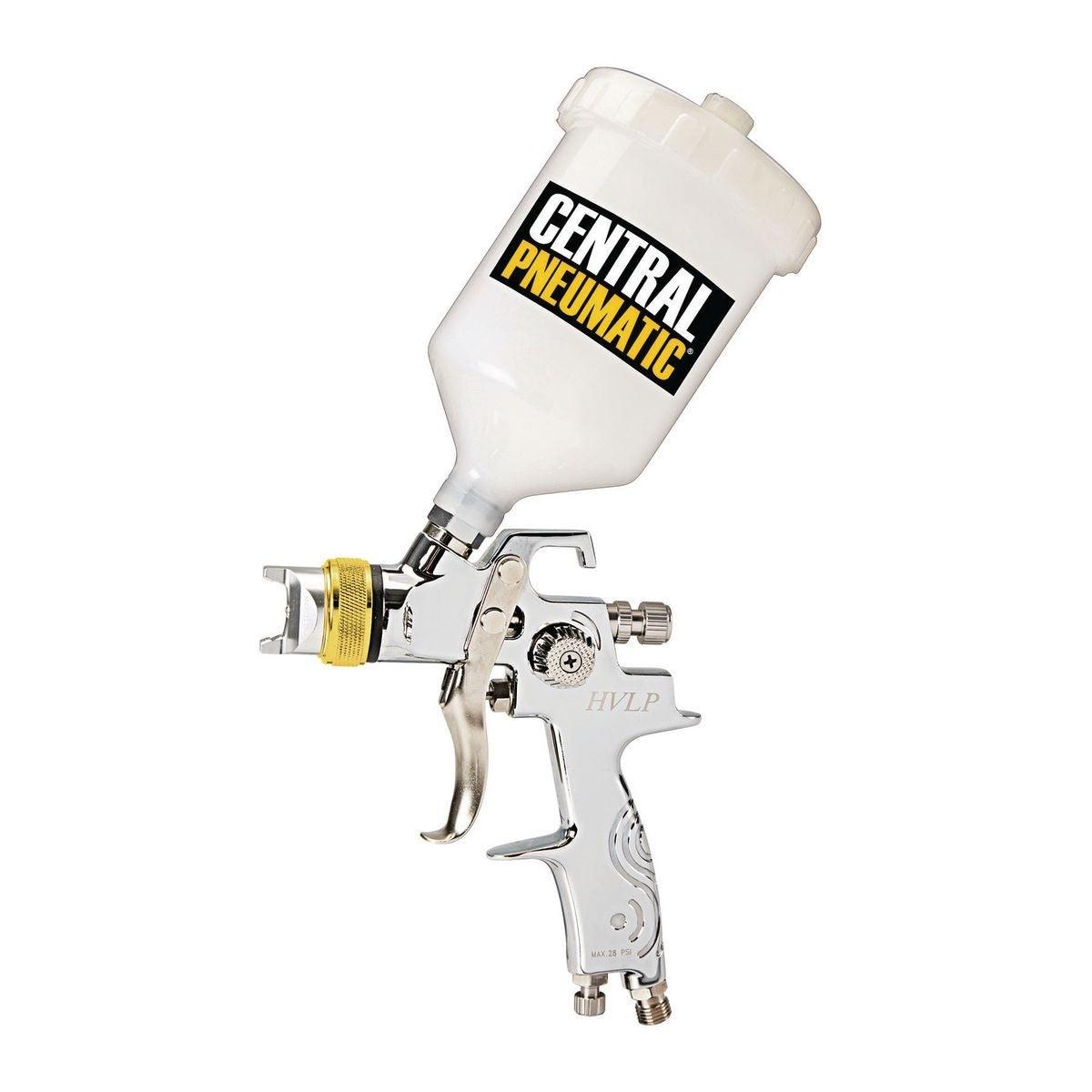

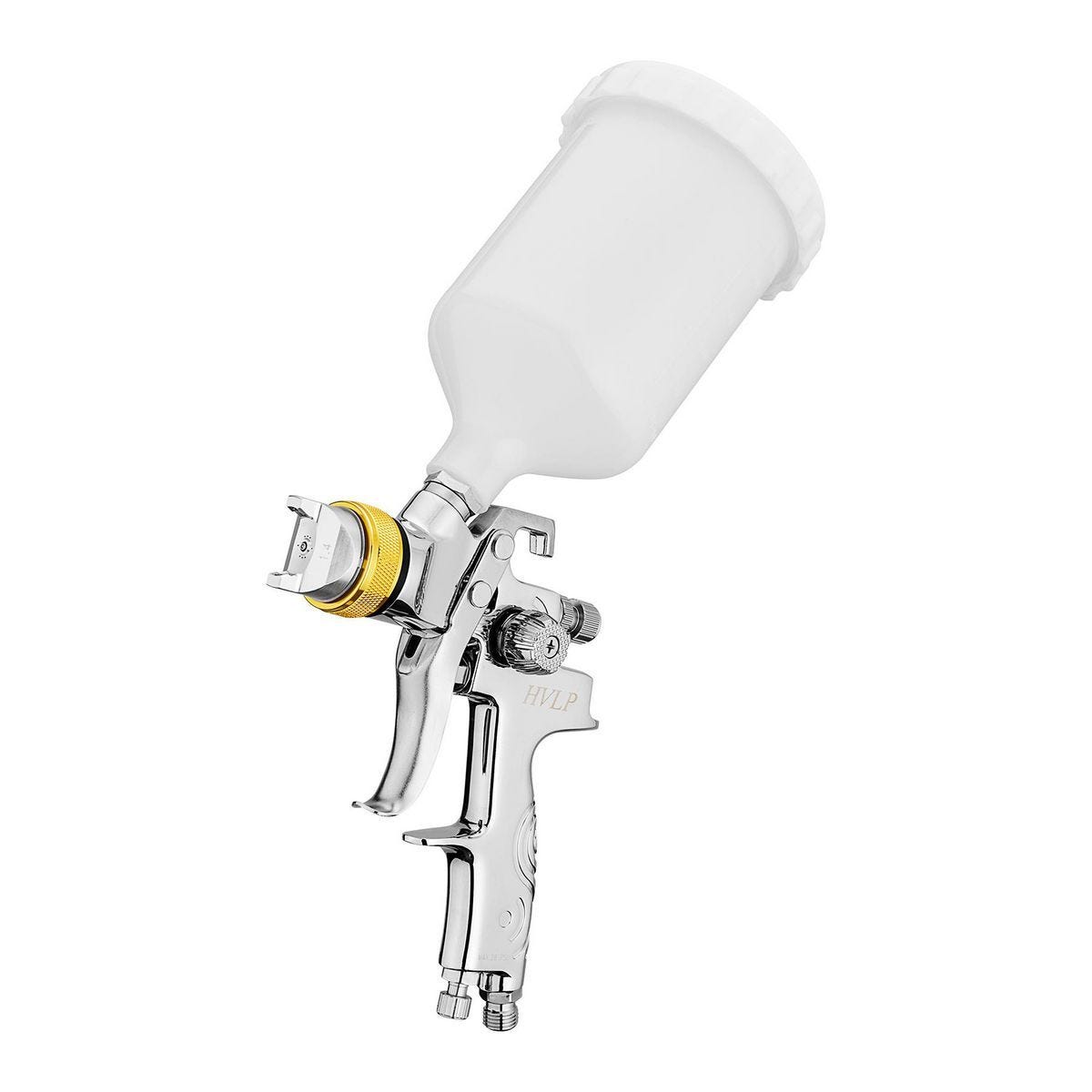

Central Pneumatic 20 oz. Professional HVLP Gravity Feed Air Spray Gun
Published price — same for everyone
In stock
SKU 68843
The price on the page is the price.
Find it, price it, order it — without a phone call. Questions on spec, quantity, or freight? Contact us.
Buying more than one thing? Start your list — however you have itFreight and delivery are calculated at checkout — no surprise charges.
Details
20 oz. HVLP Gravity-Feed Air Spray Gun
A professional-grade HVLP gravity-feed spray gun designed for smooth, controlled finishes on automotive and DIY projects. With a 20 oz. cup and precise adjustment controls, it delivers efficient atomization at lower pressures to reduce overspray and material waste.
Key Features:
- HVLP Efficiency: Achieves fine atomization at lower pressures to minimize overspray and save material
- Gravity-Feed Design: 20 oz. top-mounted cup for consistent flow and easy cleaning
- Adjustable Controls: Fine-tune fluid, air, and pattern for detailed finishing
- Durable Build: Metal body with ergonomic trigger for comfortable, long sessions
- Ready to Use: Includes filter, nozzle wrench, and cleaning brush for maintenance

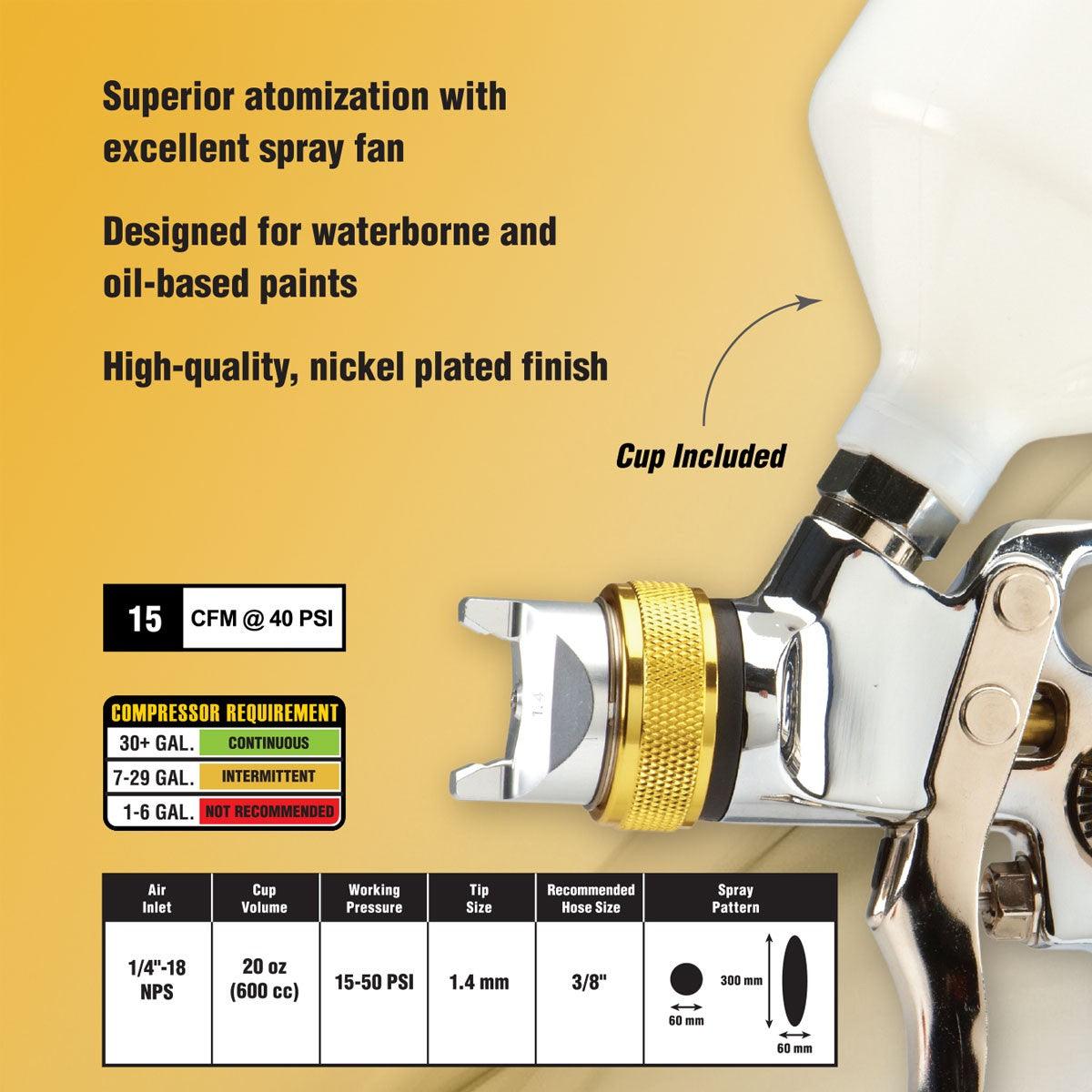

Specifications Table:
| Specification | Details |
|---|---|
| Container Size | 20 oz. |
| Recommended Hose Size | 3/8 in. |
| Accessories Included | Filter, nozzle wrench, cleaning brush |
| Air Inlet Size | 1/4 in.-18 NPS |
| Air Consumption | 15 CFM @ 40 PSI |
| Maximum Pressure | 50 PSI |
| Working Pressure | 15 to 50 PSI |
| Product Height | 12-1/2 in. |
| Product Length | 6-3/4 in. |
| Product Width | 4 in. |
| Shipping Weight | 2.75 lb. |
| Spray Pattern (dimensions) | Dot: 60 mm; fan: 300 mm x 60 mm |
Frequently Asked Questions (FAQ):
Q: What air compressor do I need?
A: The gun consumes about 15 CFM at 40 PSI; use a compressor that can supply at least this airflow.
Q: What is the working pressure range?
A: 15 to 50 PSI with a maximum pressure of 50 PSI.
Q: What hose and air inlet size does it use?
A: Recommended hose size is 3/8 in.; air inlet is 1/4 in.-18 NPS.
Q: What’s included in the box?
A: Filter, nozzle wrench, and cleaning brush.
Q: How wide is the spray pattern?
A: Dot pattern is approximately 60 mm; fan pattern is about 300 mm x 60 mm.
A Sleek, Precision Tool for Flawless Finishes
This gravity-feed HVLP spray gun brings a refined, mirror-smooth finish to cabinetry, furniture, and custom automotive pieces. The polished metal body and balanced cup echo a professional studio’s sophistication while offering intuitive control. Pair it with a satin lacquer or high-gloss enamel to transform surfaces into gallery-worthy statements. It’s a must-have for luxurious, consistent results that elevate any project.
Achieve a flawless, professional finish—add this HVLP gravity-feed spray gun to your toolkit today.
