Bosch 10 in. Worksite Table Saw with Gravity-Rise Wheeled Stand (4100XC-10)

10 in. Worksite Table Saw with Gravity-Rise Stand

Portable, pro-grade 10-in table saw with a Gravity-Rise wheeled stand for easy jobsite mobility. A 15-amp, 4.0 max HP motor with soft-start and Constant Response circuitry powers rip and cross cuts, while the Smart Guard System and SquareLock rip fence enhance safety and accuracy.

---

Key Features:

• Powerful 15-Amp Motor: Delivers 4.0 max HP and 3,650 RPM for fast rip- and cross-cutting

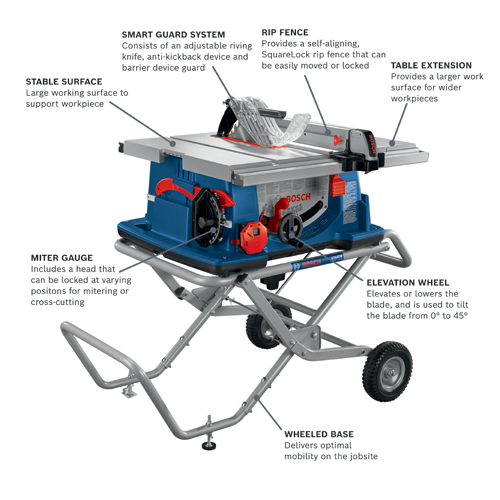

• Jobsite Portability: Gravity-Rise GTA47W wheeled stand enables single-action setup, takedown, and transport

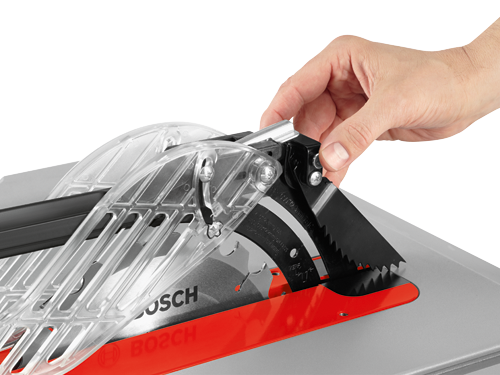

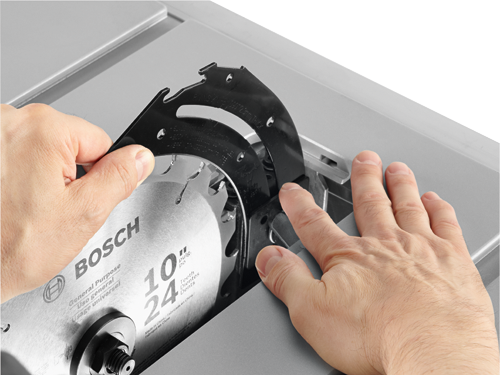

• Enhanced Safety: Smart Guard System with adjustable riving knife, anti-kickback pawls, and clear barrier guard

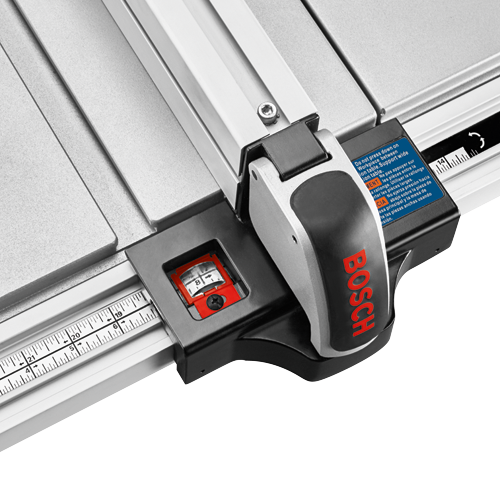

• Precision Cutting: SquareLock self-aligning rip fence with 30 in. right rip capacity and 8.5 in. left
• Large Work Surface: Cast aluminum top with 30 in. x 22-1/2 in. tabletop; onboard storage for accessories

---

Specifications Table:

Specification	Details
Model	4100XC-10
Amperage	15 A
Max Horsepower	4.0 max HP
No-Load Speed	3,650 RPM
Blade Diameter	10 in.
Blade Size	10 in.
Arbor Size	5/8 in.
Bevel Angle Range	-2° to 47°
Max Bevel Capacity	47°
Max Depth of Cut at 90°	3-1/8 in.
Max Depth of Cut at 45°	2-1/4 in.
Rip Capacity Right	30 in.
Rip Capacity Left	8.5 in.
Tabletop Size	30 in. x 22-1/2 in.
Top Material	Cast aluminum
Voltage	120 V
Dimensions (L x W x H)	27 in. x 32.5 in. x 13 in.
Weight (saw, standard equipment, and stand)	94 lb
Weight of Bare Saw	58 lb
Stand	GTA47W Gravity-Rise wheeled stand
Safety Features	Smart Guard System with adjustable riving knife, anti-kickback pawls, and clear barrier guard; restart protection; overload protection; soft-start circuitry; Constant Response circuitry
Fence	SquareLock self-aligning rip fence
Dust Collection Compatibility	Common 2-1/2 in. vacuum hoses; VAC004 adapter; Dust Bag TS1004
Works With	Zero-Clearance Insert TS1005; Dado Insert TS1007; Molding Insert TS1009; Outfeed Support TS1016; Left-Side Support TS1008
Includes	Table saw, Gravity-Rise stand, 10 in. carbide-tipped blade, SquareLock rip fence, auxiliary fence for narrow workpieces, miter gauge, Smart Guard System, push stick, throat plate insert, multi-function blade wrench, adjustment wrench

---

Frequently Asked Questions (FAQ):

Q: What blade size and arbor does it use?
A: It uses a 10 in. blade with a 5/8 in. arbor.

---

Q: What are the max cut depths?
A: 3-1/8 in. at 90° and 2-1/4 in. at 45°.

---

Q: What is the bevel range?
A: -2° to 47° with up to 47° max bevel capacity.

---

Q: Is dust collection supported?
A: Yes, it works with common 2-1/2 in. vacuum hoses and Bosch adapters; a dust bag (TS1004) is compatible.

---

Q: What’s included in the box?
A: Table saw, Gravity-Rise stand, 10 in. carbide blade, SquareLock rip fence, auxiliary fence, miter gauge, Smart Guard System, push stick, throat plate, multi-function blade wrench, and adjustment wrench.

---

Portable Power With Polished Precision

This table saw brings a refined, architectural presence to the jobsite—sleek cast aluminum meets Bosch’s signature blue for a look that feels both modern and enduring. The Gravity-Rise stand is the star, transforming from compact cart to stable workstation in one fluid motion. Pair it with a crisp outfeed table and matte-black clamps for a studio-worthy setup that moves with you. For those who value craftsmanship and efficiency, it’s a must-have foundation for elevated, luxurious builds.

---

Upgrade your jobsite with portable precision—add the Bosch 4100XC-10 to your cart today.
