Bosch
Bosch JS470E 7.0 Amp Corded Variable-Speed Top-Handle Jig Saw Kit with Carrying Case
In stock
SKU 0601513012
The price on the page is the price.
Find it, price it, order it — without a phone call. Questions on spec, quantity, or freight? Contact us.
Buying more than one thing? Start your list — however you have itFreight and delivery are calculated at checkout — no surprise charges.
Details
7.0A Corded Variable-Speed Top-Handle Jig Saw Kit
The Bosch JS470E top-handle jig saw delivers precise, low-vibration cutting with a 7.0-amp motor and variable-speed control. Its die-cast aluminum footplate, Constant Response circuitry, and multi-directional T‑shank blade clamp ensure smooth, accurate cuts across wood, metal, and laminates, all in a durable kit with carrying case.

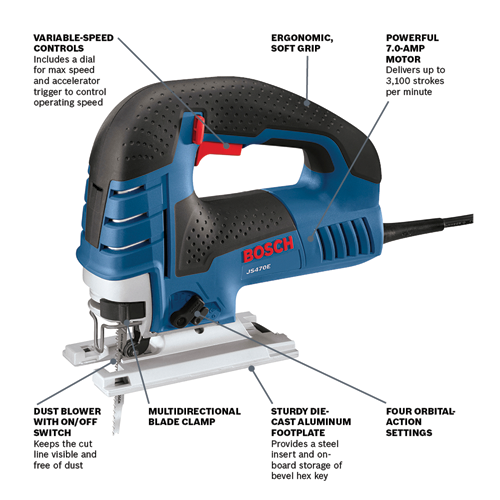

Key Features:
- Powerful 7.0A Motor: Delivers up to 3,100 SPM for fast, controlled cutting
- Precision and Control: Constant Response circuitry and low-vibration plunging for consistent speed under load
- Versatile Cutting: Four orbital settings and 45° bevel capacity for smooth to aggressive cuts
- Fast, Safe Blade Changes: Toolless T‑shank blade system with blade-ejection lever (does not accept U‑shank)
- Jobsite Ready: Large die-cast aluminum footplate, dust blower with on/off, ergonomic soft-grip handle, and hard plastic case
Specifications Table:
| Specification | Details |
|---|---|
| Model | JS470E |
| Amperage | 7.0A |
| Voltage | 120V |
| Hertz | 60 Hz |
| No Load SPM | 500–3,100 SPM |
| Stroke Length | 1 in |
| Bevel Angle Range | 0–45° |
| Max. Bevel Capacity | 45° |
| Cutting Capacity – Soft Wood | 5-7/8 in |
| Cutting Capacity – Aluminum | 7/8 in (0.875 in) |
| Cutting Capacity – Mild Steel | 3/8 in (0.375 in) |
| Jig Saw Blade Type | T‑shank (does not accept U‑shank) |
| Dust Blower | Yes, on/off switch |
| Dust Collection | Yes, compatible with attachments |
| Tool Level | Corded – variable speed intermediate |
| Variable Speed | Yes (dial + accelerator trigger) |
| Footplate | Large die-cast aluminum with steel insert; on-board bevel hex key storage |
| Gearbox | Aluminum with insulated cover |
| Handle | Ergonomic top handle with soft-grip areas |
| Lock-On | Ambidextrous lock-on button |
| Works With | Jig Saw Guide JA1010; Dust Collection Attachment JA1007; Anti-Splinter Insert JA1013 |
| Includes | JS470E jig saw; Non-Marring Overshoe (2601099183); JA1013 Anti-Splinter Insert; T‑Shank Blade; Bevel Wrench; Carrying Case |
| Dimensions (L x W x H) | 14 in x 4 in x 8.43 in |
| Weight | 5.6 lb |
| Case Type | Hard plastic |
Frequently Asked Questions (FAQ):
Q: What blades does this jig saw use?
A: It uses T‑shank jig saw blades only; U‑shank blades are not compatible.
Q: What is the stroke rate range?
A: No-load speed ranges from 500 to 3,100 SPM with variable-speed control via dial and trigger.
Q: What materials can it cut?
A: Cut capacity is up to 5-7/8 in in soft wood, 7/8 in in aluminum, and 3/8 in in mild steel, using the proper blade.
Q: Does it collect dust?
A: It includes a dust blower with on/off switch and supports dust collection attachments (e.g., JA1007, sold separately).
Q: What’s included in the kit?
A: JS470E jig saw, non-marring overshoe (2601099183), JA1013 anti-splinter insert, one T‑shank blade, bevel wrench, and carrying case.
Sculpt Your Curves with Confident Precision
This jig saw is a study in strength and finesse, shaping countertops, panels, and bespoke built-ins with silken accuracy. I adore the satin aluminum footplate and the soft, architectural grip—it’s a tool that feels tailored to the hand. Pair it with a fine-tooth blade to trace elegant radii on walnut or create seamless cutouts in stone-look laminate. For projects that demand couture-level detail, this Bosch becomes the quiet hero of a truly luxe workspace.
Elevate your cuts with pro-level precision—add the Bosch JS470E jig saw kit to your cart today.
