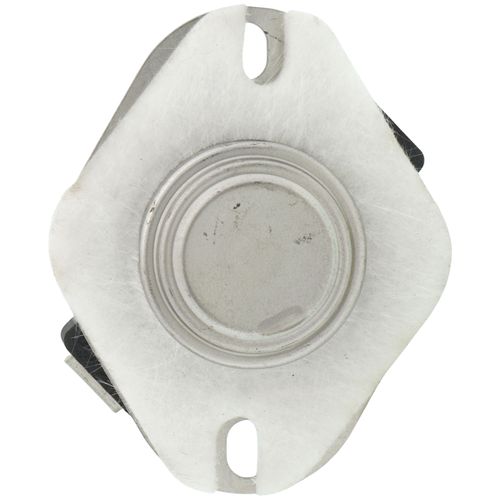

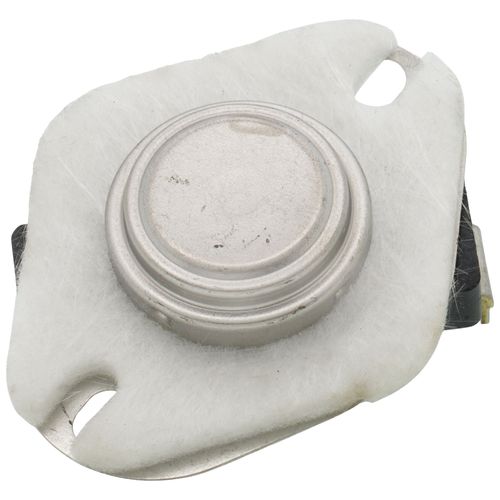

Carrier 338096-701 Limit Switch Assembly

The Carrier 338096-701 Limit Switch Assembly is a Carrier limit switch for HVAC repair and replacement work. Use it when the part number 338096-701 and the listed specifications match the equipment being serviced.

338096-701 is an official OEM Limit Switch Assembly for Carrier HVAC equipment

Key Specs

• Product Type: Limit Switch

Fitment Notes

Captured equipment fit data references models including 59MN7A060V171114, 59MN7A060V171214, 59MN7A100V211222, 59MN7B060C171114, 59SC2C040S171112, 59SC5A040S171112, 59SC5A040S171212, 59SC5A060S171114, 59SC5A060S171214, 59SC5A100S211114, 59SC5A100S211120, 59SC5A100S211214. Verify the complete unit model and service manual before installation.

Expert Verdict

Reviewed by the SuperArbor Pro Desk: choose this part when the existing component label and unit documentation match 338096-701 and the spec set above. It is best suited for targeted HVAC service repairs where exact fitment matters more than broad universal compatibility.

FAQs

What is the Carrier 338096-701 used for?

It is a limit switch for compatible Carrier HVAC equipment. Match the part number 338096-701 and the equipment service literature before ordering or installing.

Which specs should I verify before purchase?

Verify the spec set shown for this part: Product Type: Limit Switch. The replacement should match the existing component and the unit documentation.

How do I confirm this is the right replacement?

Compare the part number 338096-701, the limit switch description, and any unit model references with the original component and the service manual.

Which equipment models are referenced in the fit data?

Captured fit data references models such as 59MN7A060V171114, 59MN7A060V171214, 59MN7A100V211222, 59MN7B060C171114, 59SC2C040S171112, 59SC5A040S171112. Treat this as a fitment aid and verify the complete model list in the equipment documentation.

Who should install this HVAC component?

A qualified HVAC technician should install and test the limit switch. Disconnect power first, follow lockout procedures, and confirm safe operation after replacement.

Safety and Installation Notes

Disconnect power before service. HVAC electrical and combustion-related components should be installed and tested by a qualified technician. After installation, confirm wiring, mounting, airflow or fluid routing as applicable, and normal system operation.
