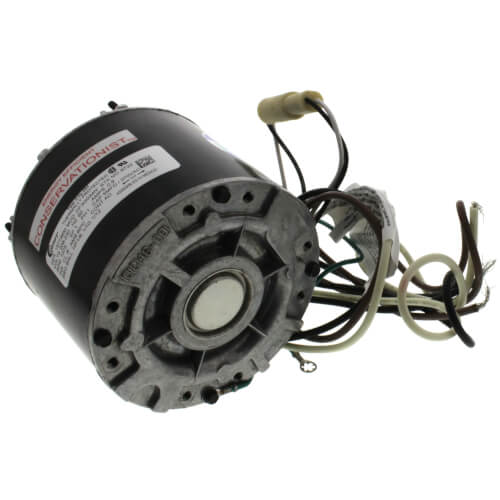

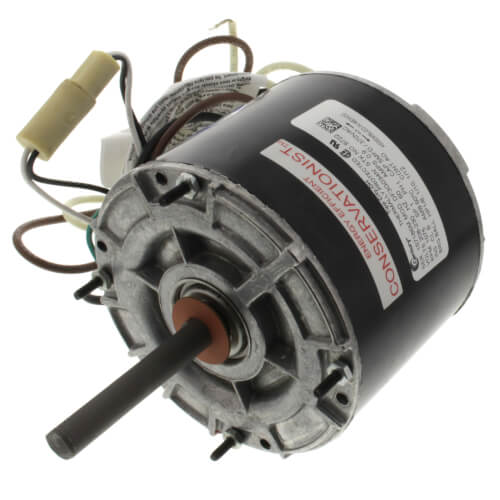

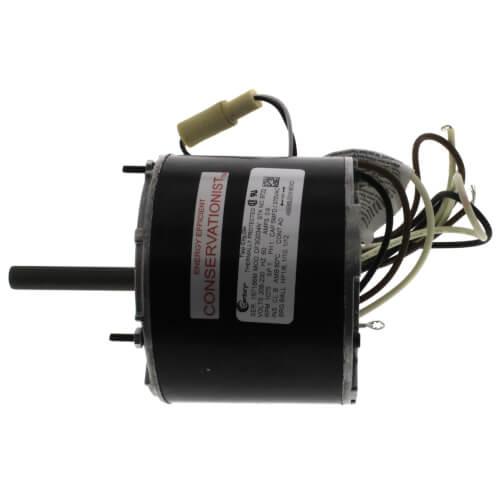

Century 9722 5" Multi Horse Power Motor (208-230V, 1075 RPM, 1/8-1/12 HP) Inducer Motor

The Century 9722 5" Multi Horse Power Motor (208-230V, 1075 RPM, 1/8-1/12 HP) Inducer Motor is a Century inducer motor for HVAC repair and replacement work. Use it when the part number 9722 and the listed specifications match the equipment being serviced.

Features: • Multi-Mounting System • Single speed multi-horsepower replacement motor uses one simple connection • Energy-efficient PSC design • Easy-to-read connection diagram attached to white lead wire • Water-resistant reversing plug • Double sealed ball bearings for dependable long life • Rubber shaft slinger keeps water and dirt out of motor • Water-resistant rubber grommet at lead opening • 60°C max ambient • Class B insulation • Lead length 36" • 60 Hertz • Totally enclosed • Continuous duty, air over • All-angle mount • UL and CSA recognized

Key Specs

• Type: Permanent Split Capacitor
• Voltage: 208/230V, 230V, 208V
• Horse Power: 1/8, 1/12, 1/10
• RPM: 1075
• Phase: 1
• Speeds: 1
• Product Type: Inducer Motor

Replacement Notes

Captured replacement references include 9722-CENTURY, MOT13265, S1-02440889000. Confirm supersession details against the manufacturer parts list.

Expert Verdict

Reviewed by the SuperArbor Pro Desk: choose this part when the existing component label and unit documentation match 9722 and the spec set above. It is best suited for targeted HVAC service repairs where exact fitment matters more than broad universal compatibility.

FAQs

What is the Century 9722 used for?

It is a inducer motor for compatible Century HVAC equipment. Match the part number 9722 and the equipment service literature before ordering or installing.

Which specs should I verify before purchase?

Verify the spec set shown for this part: Type: Permanent Split Capacitor; Voltage: 208/230V, 230V, 208V; Horse Power: 1/8, 1/12, 1/10; RPM: 1075; Phase: 1; Speeds: 1. The replacement should match the existing component and the unit documentation.

Does the electrical rating need to match exactly?

Yes. Confirm voltage rating 208/230V, 230V, 208V against the failed component label. Do not substitute a different rating unless the equipment manufacturer allows it.

Are replacement or superseded references available?

Captured cross-reference data includes 9722-CENTURY, MOT13265, S1-02440889000. Verify any supersession directly against the manufacturer parts list before installation.

Who should install this HVAC component?

A qualified HVAC technician should install and test the inducer motor. Disconnect power first, follow lockout procedures, and confirm safe operation after replacement.

Safety and Installation Notes

Disconnect power before service. HVAC electrical and combustion-related components should be installed and tested by a qualified technician. After installation, confirm wiring, mounting, airflow or fluid routing as applicable, and normal system operation.
