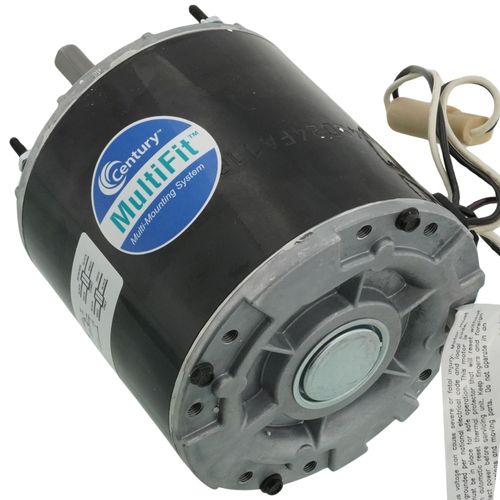

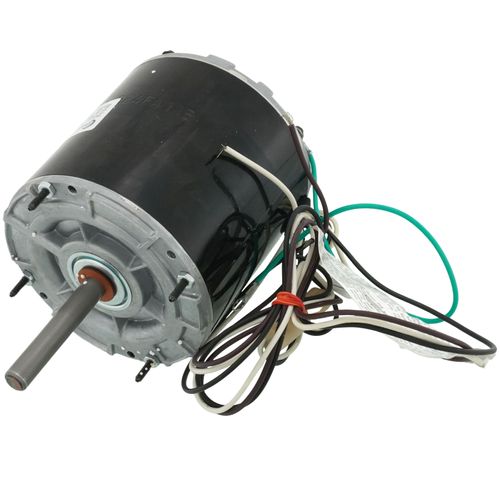

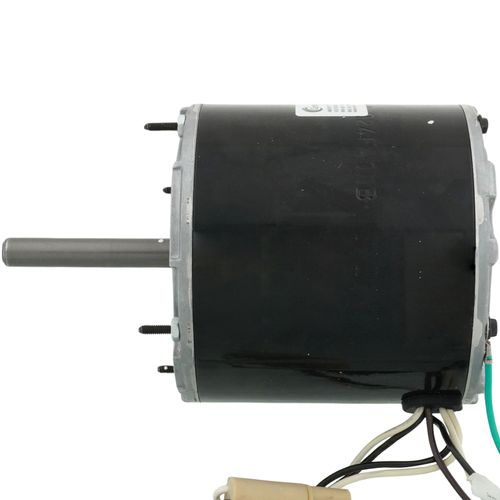

Century 9724-CENTURY 5" Multi Fit Condenser Fan Motor (208-230V, 1625 RPM, 1/4, 1/5, 1/6 HP) Inducer Motor

The Century 9724-CENTURY 5" Multi Fit Condenser Fan Motor (208-230V, 1625 RPM, 1/4, 1/5, 1/6 HP) Inducer Motor is a Century inducer motor for HVAC repair and replacement work. Use it when the part number 9724-CENTURY and the listed specifications match the equipment being serviced.

Features: • Replaces Hundreds of 1/6 - 1/4 HP Applications • All angle mount • Class B insulation • Reversing plug • Totally enclosed • 36 inch leads • 60ºC ambient • Single speed • Multi-mounting system • Double sealed ball bearings • Energy efficient PSC design • One simple connection eliminates the need to select various horsepower or change capacitor sizes

Key Specs

• Type: Permanent Split Capacitor
• Voltage: 208/230V, 230V, 208V
• Horse Power: 1/6, 1/4, 1/5
• RPM: 1625
• Phase: 1
• Speeds: 1
• Product Type: Inducer Motor

Expert Verdict

Reviewed by the SuperArbor Pro Desk: choose this part when the existing component label and unit documentation match 9724-CENTURY and the spec set above. It is best suited for targeted HVAC service repairs where exact fitment matters more than broad universal compatibility.

FAQs

What is the Century 9724-CENTURY used for?

It is a inducer motor for compatible Century HVAC equipment. Match the part number 9724-CENTURY and the equipment service literature before ordering or installing.

Which specs should I verify before purchase?

Verify the spec set shown for this part: Type: Permanent Split Capacitor; Voltage: 208/230V, 230V, 208V; Horse Power: 1/6, 1/4, 1/5; RPM: 1625; Phase: 1; Speeds: 1. The replacement should match the existing component and the unit documentation.

Does the electrical rating need to match exactly?

Yes. Confirm voltage rating 208/230V, 230V, 208V against the failed component label. Do not substitute a different rating unless the equipment manufacturer allows it.

Is this an OEM-style replacement part?

Use it as a direct replacement only when Century documentation lists 9724-CENTURY or an approved equivalent for the unit being serviced.

Who should install this HVAC component?

A qualified HVAC technician should install and test the inducer motor. Disconnect power first, follow lockout procedures, and confirm safe operation after replacement.

Safety and Installation Notes

Disconnect power before service. HVAC electrical and combustion-related components should be installed and tested by a qualified technician. After installation, confirm wiring, mounting, airflow or fluid routing as applicable, and normal system operation.
