- DIAMONDBACK 15 Amp 10 in. Wet Tile Saw with Sliding Table and Extended Rip Capacity
Diamondback

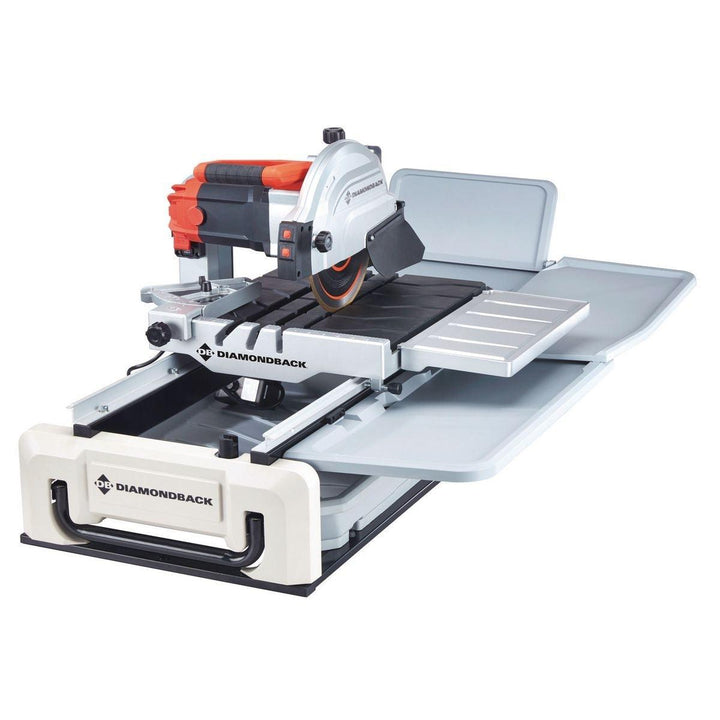

DIAMONDBACK 15 Amp 10 in. Wet Tile Saw with Sliding Table and Extended Rip Capacity
Published price — same for everyone
In stock
The price on the page is the price.
Find it, price it, order it — without a phone call. Questions on spec, quantity, or freight? Contact us.
Buying more than one thing? Start your list — however you have itFreight and delivery are calculated at checkout — no surprise charges.
Details
Expertly designed with a 2.4 HP motor and a cutting speed of 4000 RPM, the DIAMONDBACK™ 10 in. Wet Tile Saw is capable of effortlessly slicing through even the toughest materials such as porcelain, stone, and masonry up to 3-1/2 in. thick. Its 2-1/2 ft. non-slip sliding table, equipped with sealed ball bearings, allows for a generous rip capacity of 24 in. and 18 in. on the diagonal. The oversized splash tables effectively contain cutting debris, making cleanup a breeze. With an efficient water management system and a high volume industrial water pump pushing 66 gallons per hour, the blade stays cool and delivers optimal water flow for precise cuts every time. This saw also features a laser guide, LED light, and beveling head for cuts at commonly used angles of 0°, 22.5°, and 45°. Its heavy duty adjustable rip fence.
| Attribute | Value |
|---|---|
| SKU(s) | 64684 |
| Brand | DIAMONDBACK |
| Model | DB100-1 |
| AC Volts | 120 |
| Amperage | 15 |
| Arbor size | 5/8 in. |
| Blade size | 10 in. |
| Depth of cut (in.) | 3-1/2 in. |
| Horsepower | 2.4 |
| Maximum cut depth @ 45 deg | 1-1/8 in. |
| Speed (max) | 4000 RPM |
| Product Weight | 86.6 lb. |
| Product Width | 24 in. |
| Shipping Weight | 97.00 lb. |
| Bevel angle | 0° - 45° |
| Note | Specifications are approximate and subject to change |
