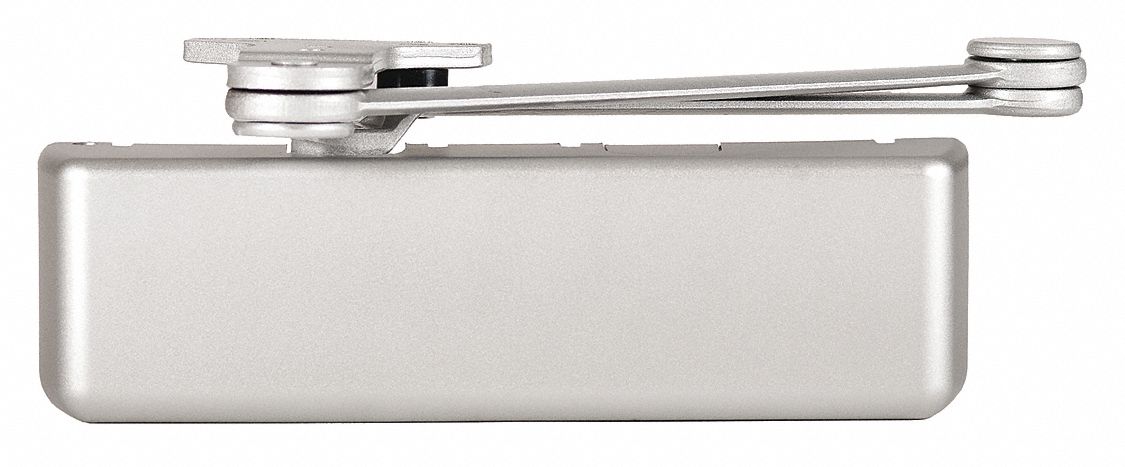

DORMAKABA Heavy Duty Grade 1 Adjustable Mount Door Closer, Aluminum

DORMAKABA Adjustable Mount Door Closer

Elevate your door control with the DORMAKABA Door Closer, an adjustable and robust solution designed to meet intense usage demands. This heavy-duty, cast iron closer offers up to a 180° door opening angle and is compatible with both interior and exterior doors, maximizing versatility and ensuring seamless operation in any context.

---

Key Features:

• Versatile Adjustability: Allows mounting as standard, top frame, or parallel closer for flexible installation.
• Durable Construction: Made from cast iron with an aluminum finish, designed to withstand heavy-duty conditions.
• Full Door Control: Supports a maximum door width of 54 inches and offers a 180° door opening angle.
• Safety Assured: Features a 3-hour fire rating and is UL and cUL listed for assured compliance.
• Convenient Installation: Includes necessary mounting screws and hardware for easy setup.

---

Specifications Table:

Specification	Details
Manufacturer Part Number	QDC113R689BF
Brand	DORMAKABA
Closer Mounting Type	Adjustable
Closer Series	QDC100
Closer Type	Non-Hold Open
Color	Gray
Display Qty	1
Display Sell UOM	EA
Max Door Opening Angle	180 °
Features	Staked Valves
Finish	Aluminum
Fire Rating	3 hr
Housing Depth	2-1/4 in
Housing Height	3-1/2 in
Energy Source	Hydraulic
Includes	Mounting Screws
Includes Hardware	Hardware Included
Door Width Campatibility	54 in
Location Use	Interior/Exterior
Standards	UL and cUL Listed
UL Fire Rating	UL10C
Spring Type	Adjustable
Height Between Mounting Holes	2-1/4 in
Spring Size - Minimum	1
Material	Cast Iron
Exterior Door Width - Maximum	54 in
Product Type	Door Closer
Projection	2-1/4 in
Spring Size	6
Hand Orientation	Non-Handed
Housing Length	12-3/16 in
Operation Style	Manual
Performance Duty Rating	1
Sub-brand	Dormakaba
Length Between Mounting Holes	4 in
Ligature Resistance	Not Ligature-Resistant
ADA Compliant	Yes
Performance Rating	Grade 1 - Heavy Duty
Finish C	Aluminum Painted ; Cast Iron ; Gray

---

Frequently Asked Questions (FAQ):

Q: Can the door closer be used on exterior doors?
A: Yes, the DORMAKABA Door Closer is suitable for both interior and exterior doors, making it a versatile choice for various applications.

---

Q: Is this door closer ADA compliant?
A: Yes, this door closer is ADA compliant, ensuring accessibility for all users.

---

Q: What is the maximum door width this closer can accommodate?
A: This door closer can handle doors up to 54 inches wide.

---

Q: Does this product include all necessary installation hardware?
A: Yes, the DORMAKABA Door Closer comes with all required mounting screws and hardware for installation.

---

Q: Is it possible to adjust the spring strength on this model?
A: Yes, the door closer features an adjustable spring, allowing you to customize the closing force.

---

Optimize Your Space with Sleek Door Efficiency

The DORMAKABA Door Closer brings a touch of industrial elegance to your living or working space, with its streamlined aluminum design blending seamlessly into any setting. This heavy-duty closer transforms functionality into art, offering not just durability but an elevated experience as it controls the flow between rooms. Consider pairing it with modern metal accents for a cohesive aesthetic that harmonizes form and function. Let this door closer redefine access with a bold yet unobtrusive sophistication, essential for any design-forward environment.

---

Enhance your door functionality today with the DORMAKABA Heavy Duty Adjustable Door Closer and enjoy unmatched performance and style.
