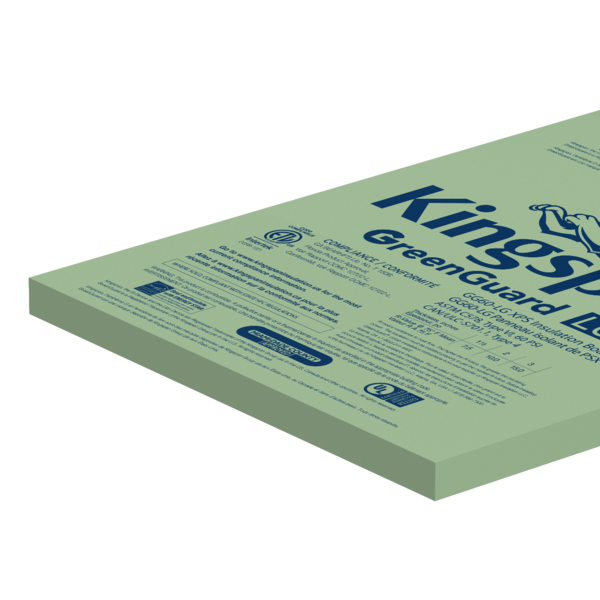

Kingspan GreenGuard GG60-LG XPS Insulation Board - 2in x 4ft x 8ft - (48 Boards)
Published price — same for everyone
In stock
SKU M48200TYP7
The price on the page is the price.
Find it, price it, order it — without a phone call. Questions on spec, quantity, or freight? Contact us.
Buying more than one thing? Start your list — however you have itFreight and delivery are calculated at checkout — no surprise charges.
Details
Kingspan GreenGuard GG60-LG XPS Insulation Board comprises closed–cell extruded polystyrene (XPS) with a minimum compressive strength of 60 psi. It has high water resistance and R–value of 5.0 per inch of thickness.
Kingspan GreenGuard LG XPS Insulation Board is made of synthetic materials that are generally recognized as not providing a food source for insects, fungus, mold, or mildew. It should always be properly installed and stored. Kingspan GreenGuard GG60-LG XPS Insulation Board is HCFC free.
48 Boards Per Pallet
1536 Sq Ft Per Pallet
Features & Properties
- R-value of 5.0 per inch of thickness
- Designed for high–load applications requiring insulation with minimum compressive strength of 60 psi
- GWP of lessthan 50
- Retains insulating properties over time
- Lightweight, durable...easy to use
| Property | Test Method | Result |
| Nominal Thickness (in) | 1 1/2, 2, 3 | |
| Nominal Board Width (ft) Nominal Board Length (ft) |
2 / 4 8 |
|
| Edge Profile |
Square Channeled |
|
| Property Type | ASTM C 578 | VII |
| Compressive Strength, Min. (psi@ 10% deflection) |
ASTM D 1621 | 60 |
| Water Absorption, Max. (% by volume) |
ASTM C 272 | 0.3 |
| Density, Min. (lb/ft) |
ASTM C 303 | 2.2 |
| Water Vapor Permeance (perm) |
ASTM E 96 (Dessicant Method) |
1.1 |
| Service Temperature, Max (°F) | 165 | |
| Thermal | ||
| Thermal Resistance, R-value (°F.ft.hr / Btu per in thick) |
ASTM C 518 (@75°F Mean Temperature) |
5.0 |
| Thermal Conductivity, k-value (Btu.in / hr.ft.ºF) |
ASTM C 518 (@75°F Mean Temperature) |
0.2 |
| Fire & Smoke | ||
| Flame Spread Smoke Developed |
ASTM E 84 / UL723 | 25 (Class A) 140 |
