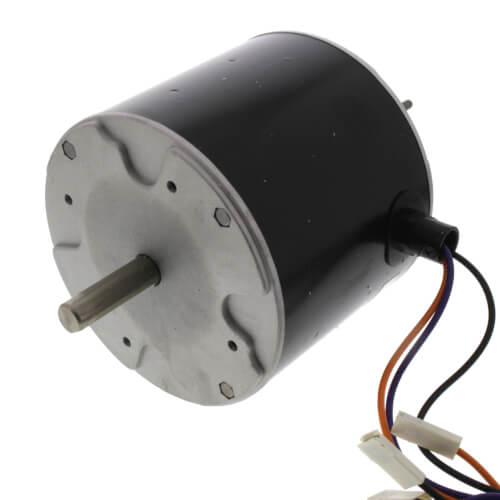

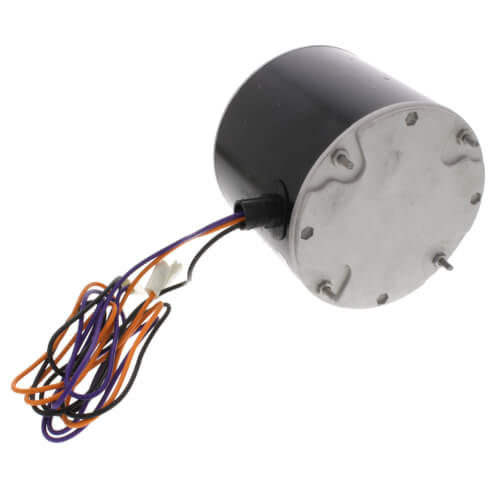

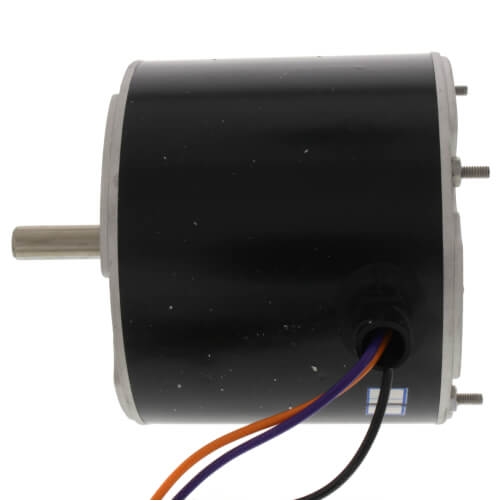

Lennox 12F49 1/10 HP Fan Motor (208-230V)

The Lennox 12F49 1/10 HP Fan Motor (208-230V) is a Lennox motor for HVAC repair and replacement work. Use it when the part number 12F49 and the listed specifications match the equipment being serviced.

Lennox 12F49 1/10 HP Fan Motor (208 - 230V) An OEM Lennox fan motor used in Lennox HVAC equipment to drive an air-moving fan and help keep the system operating properly when the specified replacement motor is required. Key Features • Official OEM 1/10 HP fan motor for Lennox HVAC equipment • Rated 208/230V • lists it as replacing 47W86 • Listed Accessory: 5 Microfarad 370Vac Oval Run Capacitor (Brand:Jard SKU:12905) Compatibility & Applications • Listed for Lennox HVAC equipment (the provided sources do not identify specific unit models/series). • Must only be used where the manufacturer specifies this exact part number: 12F49. Installation…

Key Specs

• Voltage: 208/230V
• Horse Power: 1/10
• Product Type: Motor

Fitment Notes

Captured equipment fit data references models including 13ACD-018-230-10, 13ACD-018-230-12, 13ACD-018-230-14, 13ACD-018-230-3, 13ACD-024-230-11, 13ACD-024-230-12, 13ACD-024-230-13, 13ACD-024-230-14, 13ACD-024-230-15, 13ACD-024-230-4, 13ACD-024-230-5, 13ACX-018-230-10. Verify the complete unit model and service manual before installation.

Expert Verdict

Reviewed by the SuperArbor Pro Desk: choose this part when the existing component label and unit documentation match 12F49 and the spec set above. It is best suited for targeted HVAC service repairs where exact fitment matters more than broad universal compatibility.

FAQs

What is the Lennox 12F49 used for?

It is a motor for compatible Lennox HVAC equipment. Match the part number 12F49 and the equipment service literature before ordering or installing.

Which specs should I verify before purchase?

Verify the spec set shown for this part: Voltage: 208/230V; Horse Power: 1/10; Product Type: Motor. The replacement should match the existing component and the unit documentation.

Does the electrical rating need to match exactly?

Yes. Confirm voltage rating 208/230V against the failed component label. Do not substitute a different rating unless the equipment manufacturer allows it.

Which equipment models are referenced in the fit data?

Captured fit data references models such as 13ACD-018-230-10, 13ACD-018-230-12, 13ACD-018-230-14, 13ACD-018-230-3, 13ACD-024-230-11, 13ACD-024-230-12. Treat this as a fitment aid and verify the complete model list in the equipment documentation.

Who should install this HVAC component?

A qualified HVAC technician should install and test the motor. Disconnect power first, follow lockout procedures, and confirm safe operation after replacement.

Safety and Installation Notes

Disconnect power before service. HVAC electrical and combustion-related components should be installed and tested by a qualified technician. After installation, confirm wiring, mounting, airflow or fluid routing as applicable, and normal system operation.
