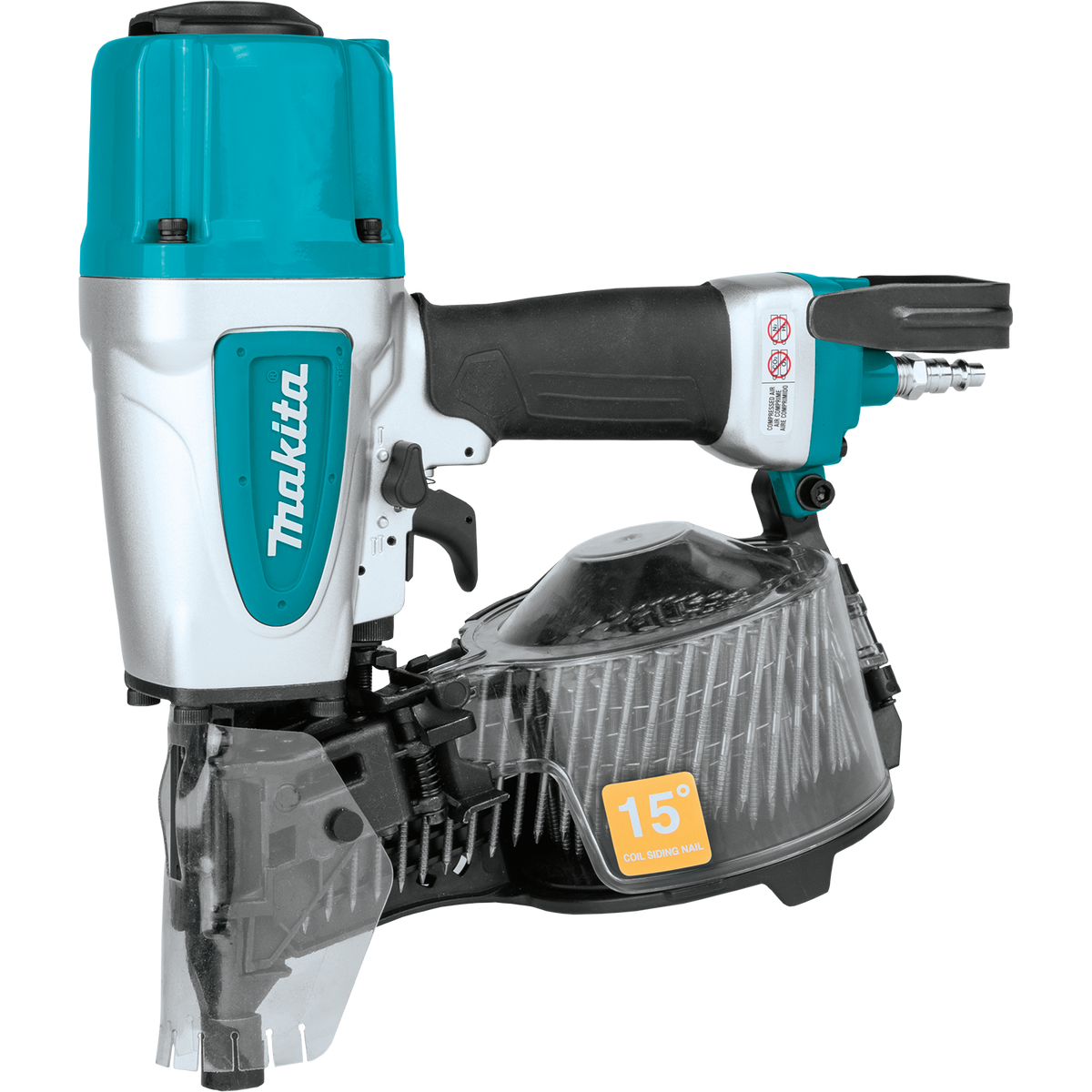

Makita 15° 2-1/2 in. Siding Coil Nailer (AN613)
In stock
SKU AN613
The price on the page is the price.
Find it, price it, order it — without a phone call. Questions on spec, quantity, or freight? Contact us.
Buying more than one thing? Start your list — however you have itFreight and delivery are calculated at checkout — no surprise charges.
Details
15° 2-1/2 in. Siding Coil Nailer
Rugged and lightweight, the Makita AN613 pneumatic siding coil nailer drives 15° wire or plastic-collated nails from 1-1/2 in. to 2-1/2 in. An aluminum housing, clear canister, and tool-less depth adjustment with nine detents deliver durability and precise control for fiber cement and wood shingle siding.

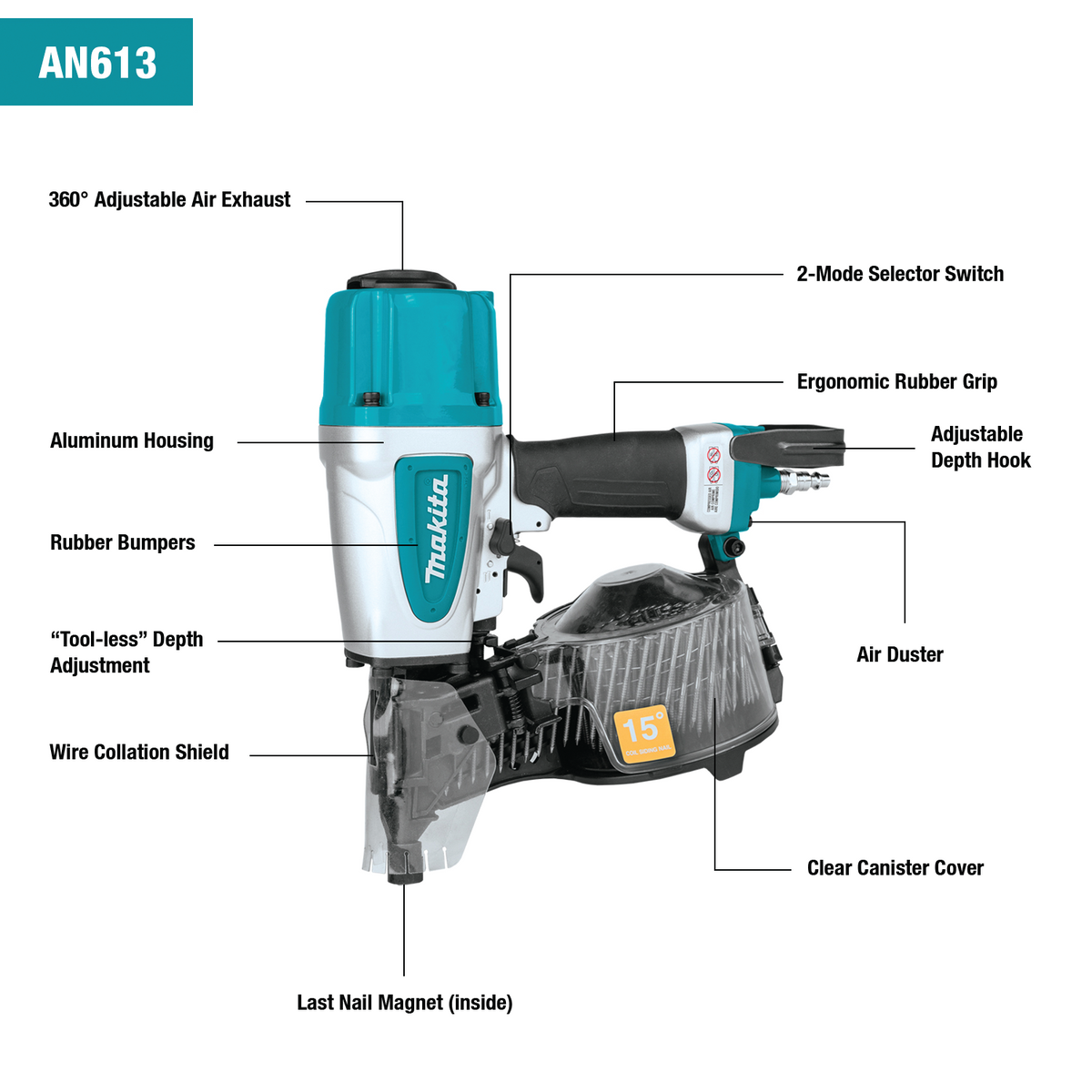

Key Features:
- Dual Firing Modes: 2-mode selector for single sequential or contact actuation nailing
- Precise Depth Control: Tool-less depth adjustment with 9 detents for flush or countersunk results
- Durable Build: Lightweight aluminum housing with rubber bumpers and smooth nose tip to protect surfaces
- Clean, Convenient Operation: 360° adjustable exhaust and built-in air duster to clear work areas
- Easy Loading: Clear adjustable canister with nail size setting and reversible belt hook for on-the-job efficiency
Please check the Product Data Sheet Here
Specifications Table:
| Specification | Details |
|---|---|
| Power Type | Pneumatic |
| Fastening Category | Siding |
| Nail Size | 1-1/2" – 2-1/2"; .090" - .099" shank diameter |
| Maximum Magazine Capacity | 300 |
| Operating Air Pressure (PSI) | 70 - 120 |
| Operating Air Pressure (Bar) | 4.9 - 8.3 |
| Air Consumption (SCFM) | 3.2 |
| Dimensions (L x W x H) | 10-3/4" x 5" x 12-1/2" |
| Inlet Size | 1/4" NPT |
| Air Fitting Included | Yes |
| Industrial Style Fitting Included | 1/4" NPT x 1/4" |
| Tool Hook Included | Yes |
| Net Weight | 5.1 lbs |
| Packaged Depth | 5.51 in |
| Packaged Height | 15.16 in |
| Packaged Width | 14.72 in |
| Shipping Weight | 8.21 lbs |
| UPC Code | 088381-897525 |
| Housing Material | Aluminum |
| Depth Adjustment | Tool-less with 9 detents |
| Firing Modes | Single sequential and contact actuation |
| Exhaust | 360° adjustable |
| Grip | Ergonomic rubberized |
| Additional Features | Built-in air duster; smooth nose tip; reversible belt hook; clear loading canister with nail size adjustment; rubber bumpers; wire collation shield; last nail magnet (inside) |
Frequently Asked Questions (FAQ):
Q: What nails does this tool use?
A: It drives 15° wire and plastic-collated siding nails from 1-1/2 in. to 2-1/2 in., .090"–.099" shank diameter.
Q: What air pressure is required?
A: Operating air pressure is 70–120 PSI (4.9–8.3 Bar).
Q: What is the magazine capacity?
A: Up to 300 nails.
Q: Does it include fittings or accessories?
A: Yes, it includes a 1/4" NPT air fitting; tool hook included.
Q: How much does the tool weigh?
A: Net weight is 5.1 lbs.
Crisp Lines, Confident Performance
This nailer brings a refined, purposeful silhouette to the jobsite—sleek aluminum contours paired with a crystal-clear canister that celebrates function as form. The standout is its tool-less depth dial, offering elegant precision for perfectly flush siding courses. Style it with a neatly coiled air hose and clean workspace to let the crisp geometry of your exterior cladding shine. It’s a quiet essential for tailored, durable, luxury exteriors.
Equip your crew with the AN613 for faster, cleaner siding installs—add it to your cart today.
