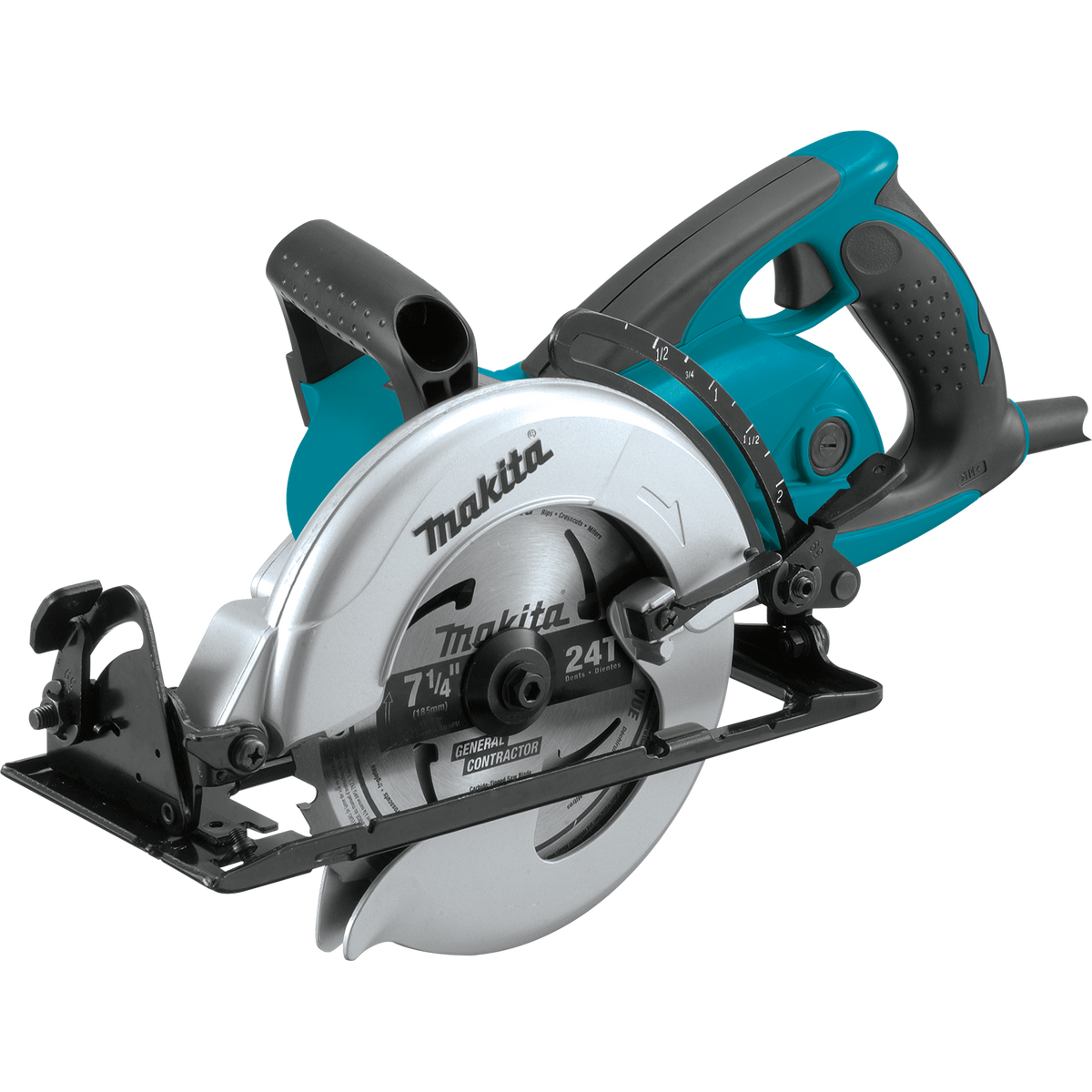

Makita 15 Amp 7-1/4 in. Corded Hypoid Circular Saw with 51.5° Bevel Capacity and 24T Carbide Blade
In stock
SKU 5477NB
The price on the page is the price.
Find it, price it, order it — without a phone call. Questions on spec, quantity, or freight? Contact us.
Buying more than one thing? Start your list — however you have itFreight and delivery are calculated at checkout — no surprise charges.
Details
15A 7-1/4" Hypoid Circular Saw
A heavy-duty 7-1/4 inch hypoid circular saw engineered for powerful, consistent cutting through dimensional and engineered lumber. Its 15 Amp motor, hypoid gears, and oil bath technology deliver superior performance with less maintenance, while a 51.5° bevel capacity expands cutting versatility.
Key Features:
- Powerful Motor & Hypoid Gears: 15 Amp motor with heat-treated hypoid gears for constant power and long-lasting performance
- Low-Maintenance Design: Sealed gear housing with oil bath technology reduces upkeep on the job
- Wide Bevel Range: 0°–51.5° bevel capacity with positive stops at 45° and 51.5° for precise rafter and truss cuts
- Large Cutting Capacity: 2-3/8" at 90°, 1-3/4" at 45°, and 1-9/16" at 50° to handle tough framing tasks
- Contractor-Grade Blade Included: 24T thin-kerf carbide-tipped blade and onboard wrench for fast blade changes
Please check the Product Data Sheet Here
Specifications Table:
| Specification | Details |
|---|---|
| Blade Diameter | 7-1/4" |
| Arbor | 5/8" |
| Max. Cutting Capacity (90°) | 2-3/8" |
| Max. Cutting Capacity (45°) | 1-3/4" |
| Max. Cutting Capacity (50°) | 1-9/16" |
| No Load Speed | 4,500 RPM |
| Watts Out | 2,300 |
| Amps | 15 |
| Overall Length | 17-3/8" |
| Net Weight | 14.3 lbs |
| Power Type | Corded |
| Packaged Depth | 9.65" |
| Packaged Height | 12.2" |
| Packaged Width | 20.87" |
| Shipping Weight | 18.07 lbs |
| UPC Code | 088381-096133 |
| Bevel Capacity | 0°–51.5° with positive stops at 45° and 51.5° |
| Included Blade | 24T thin-kerf carbide tipped |
| Features | Oil bath technology; sealed gear housing; push-button spindle lock; oversized top handle; large levers; lower guard design; rubberized grip; rust-resistant base; reinforced 10 ft cord; easy-to-read scales; externally accessible brushes; attached blade wrench |
Frequently Asked Questions (FAQ):
Q: Does this saw include a blade?
A: Yes, it includes a 7-1/4" 24T thin-kerf carbide-tipped framing blade.
Q: What is the bevel capacity?
A: 0° to 51.5° with positive stops at 45° and 51.5°.
Q: Is it suitable for engineered lumber?
A: Yes, it is designed to cut OSB, LVL, PSL, plywood, and other engineered materials.
Q: What is the no-load speed?
A: 4,500 RPM.
Q: How heavy is the saw?
A: Net weight is 14.3 lb.
Rugged Precision for Framing Mastery
This Makita hypoid saw brings muscular performance and steadfast accuracy to the workspace, turning heavy cuts into fluid gestures. The sleek guard and oversized handle create a confident, ergonomic silhouette, while the hypoid gearing whispers of endurance and power. Style it with a crisp guide rail and fresh lumber for a clean, modern jobsite aesthetic. A cornerstone tool for luxurious, high-performance building projects.
Equip your crew with dependable cutting power—add this Makita hypoid saw to your cart and elevate every pass.
