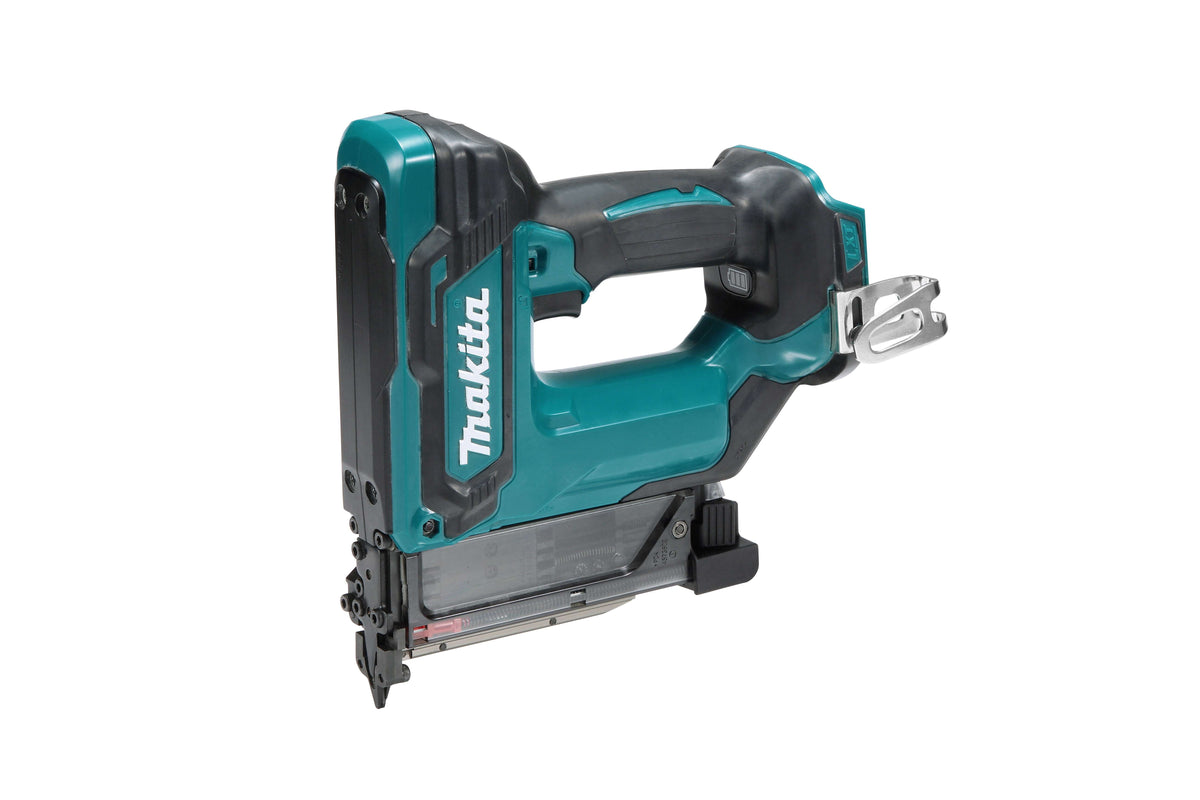

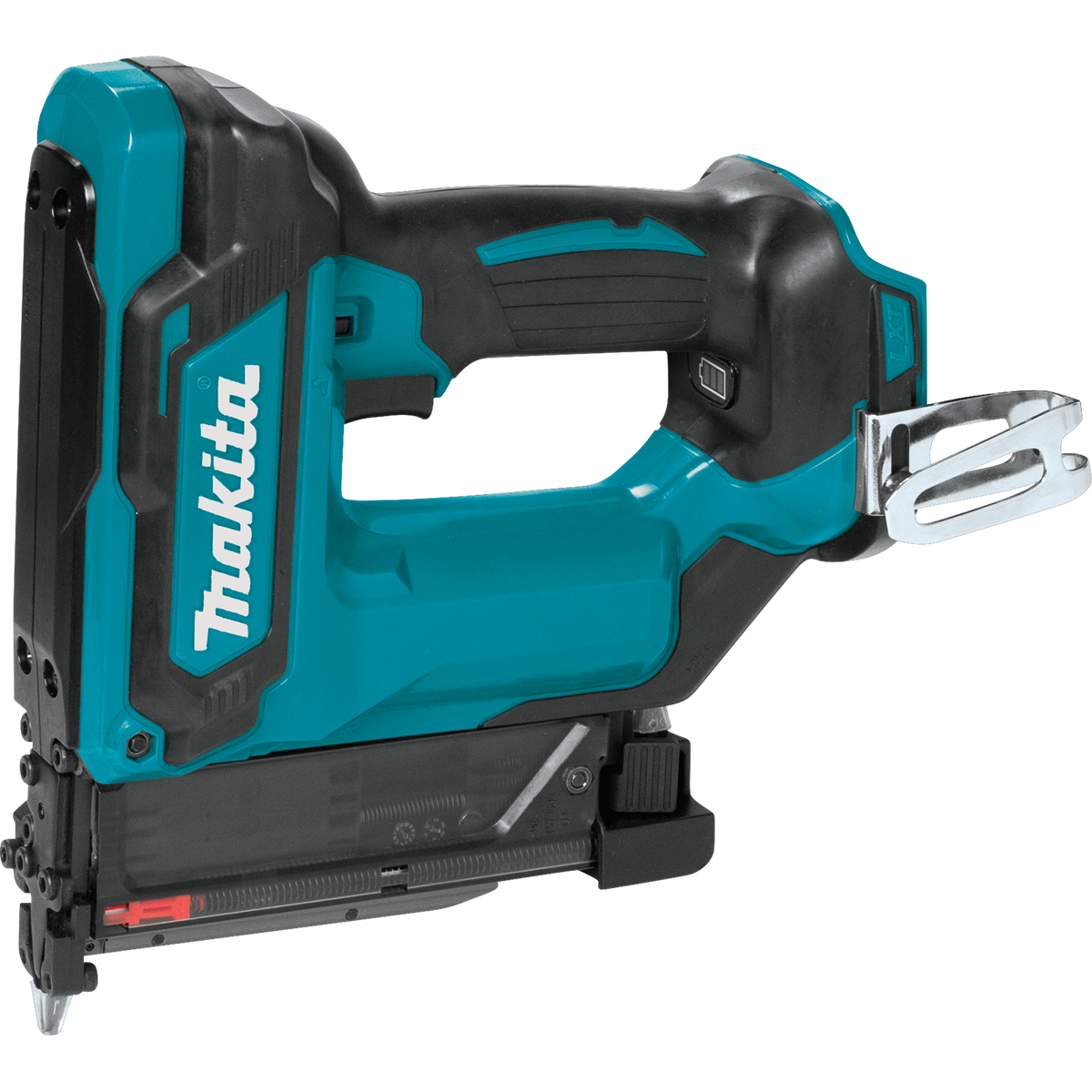

Makita 18V LXT Lithium‑Ion 23‑Gauge Cordless Pin Nailer, Tool‑Only (XTP02Z)
In stock
SKU XTP02Z
The price on the page is the price.
Find it, price it, order it — without a phone call. Questions on spec, quantity, or freight? Contact us.
Buying more than one thing? Start your list — however you have itFreight and delivery are calculated at checkout — no surprise charges.
Details
18V LXT 23‑Ga. Cordless Pin Nailer (Tool‑Only)

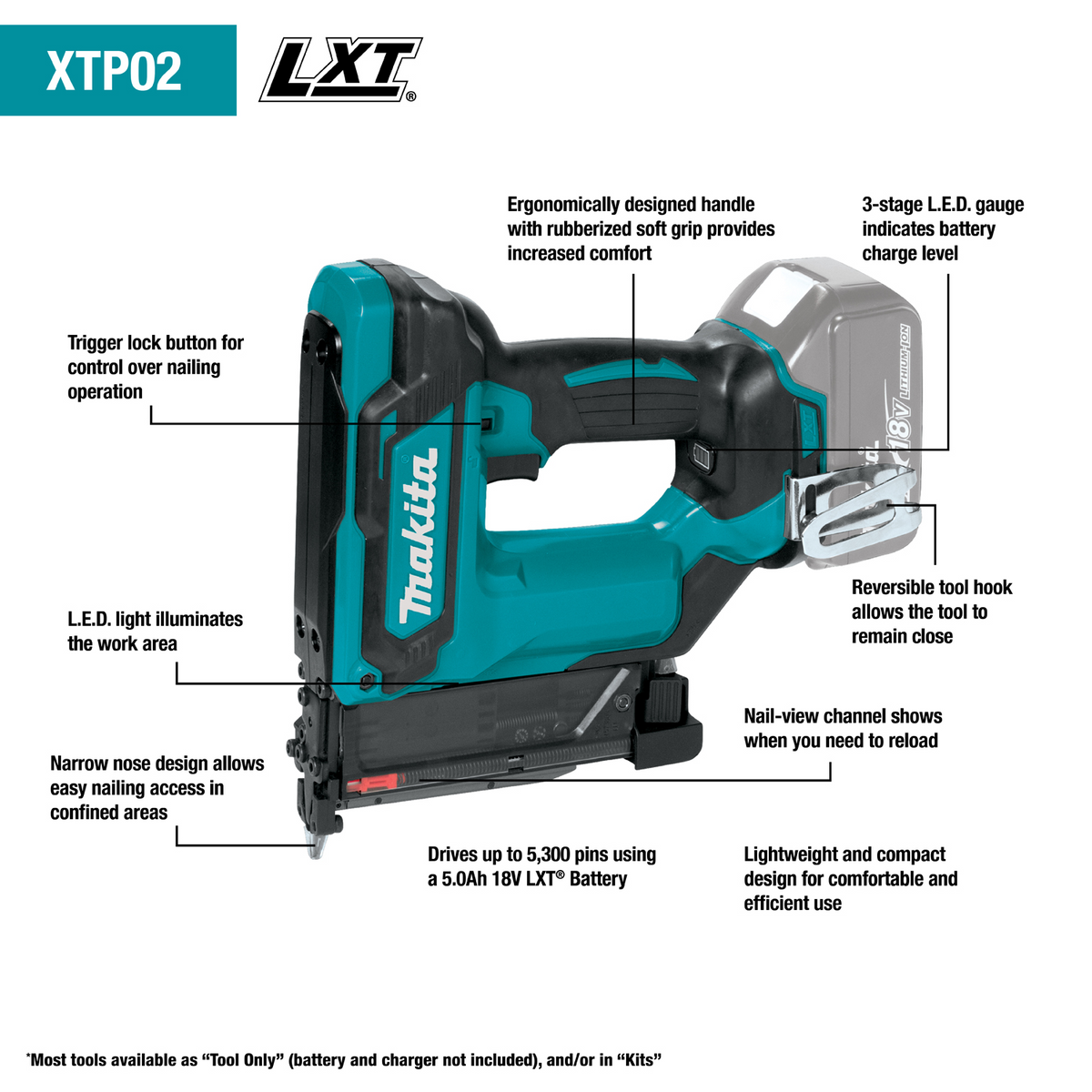

Compact and hose‑free, this 18V LXT 23‑gauge pin nailer drives six pin lengths with up to 120‑pin magazine capacity. Refined firing mechanism, tool‑less depth adjustment, and built‑in LED deliver precise, clean finishes for trim, casing, and delicate molding.
Key Features:
- Wide Fastener Range: Drives 23‑ga. pins in 5/8", 11/16", 3/4", 1", 1‑3/16", and 1‑3/8" lengths
- Clean, Accurate Finishes: Refined firing mechanism with tool‑less depth adjustment and anti‑dry‑fire protection
- Long Runtime: Up to 5,300 pins per charge with a 5.0Ah 18V LXT battery (sold separately)
- User Comfort & Control: Compact 10‑1/8" design, rubberized grip, trigger lock, and reversible belt hook
- Jobsite Ready: Built‑in LED, 3‑stage battery gauge, narrow nose for tight spaces; cordless convenience
Please check the Product Data Sheet Here
Specifications Table:
| Specification | Details |
|---|---|
| Nail Size | 5/8", 11/16", 3/4", 1", 1-3/16", 1-3/8" (23 ga.) |
| Maximum Magazine Capacity | 120 pins |
| Tool-less Depth Adjustment | Yes |
| LED Light | Yes |
| Net Weight (with battery) | 5.1 lbs |
| Power Type | Cordless |
| Fastening Category | Pin |
| Battery Platform | 18V LXT Lithium‑Ion |
| Dimensions (L x W x H) | 10-1/8" x 3-1/8" x 8-7/8" |
| Nailer Type | Pin Nailer |
| Motor Type | Brushed |
| Packaged Depth | 3.39 in |
| Packaged Height | 9.21 in |
| Packaged Width | 11.42 in |
| Shipping Weight | 4.63 lbs |
| UPC Code | 088381-835404 |
| Runtime | Up to 5,300 pins per charge with 5.0Ah 18V LXT battery (sold separately) |
| Additional Features | Refined firing mechanism; anti‑dry fire; contact trigger; trigger lock; 3‑stage battery gauge; reversible tool hook; rubber bumpers; narrow nose design; ergonomically designed handle with rubberized soft grip |
Frequently Asked Questions (FAQ):
Q: What batteries work with this pin nailer?
A: It is compatible with Makita 18V LXT Lithium‑Ion batteries that have the Star symbol; battery and charger are sold separately.
Q: What pin sizes does it accept?
A: 23‑gauge straight pins in 5/8", 11/16", 3/4", 1", 1‑3/16", and 1‑3/8" lengths. It does not accept 1‑1/4" pins.
Q: How many pins fit in the magazine?
A: The magazine holds up to 120 pins.
Q: Does it have depth adjustment?
A: Yes, a tool‑less depth adjustment allows precise flush or countersunk finishes.
Q: What is the weight?
A: Net weight with battery is approximately 5.1 lb; battery not included with tool‑only configuration.
Whisper‑Quiet Precision for Impeccable Trim
This cordless pin nailer brings a refined, almost invisible finish to delicate moldings and bespoke millwork. I love the slim nose that glides into tight corners, leaving only the subtlest hold so the profile remains pure. Style it with slender quarter‑rounds or intricate appliqués—no hoses, no fuss, just flawless lines. It’s a discreet essential for elevated, couture‑level interiors.
Bring hose‑free, precision fastening to your next project—add the Makita 18V LXT 23‑Ga. Pin Nailer to your cart today.
