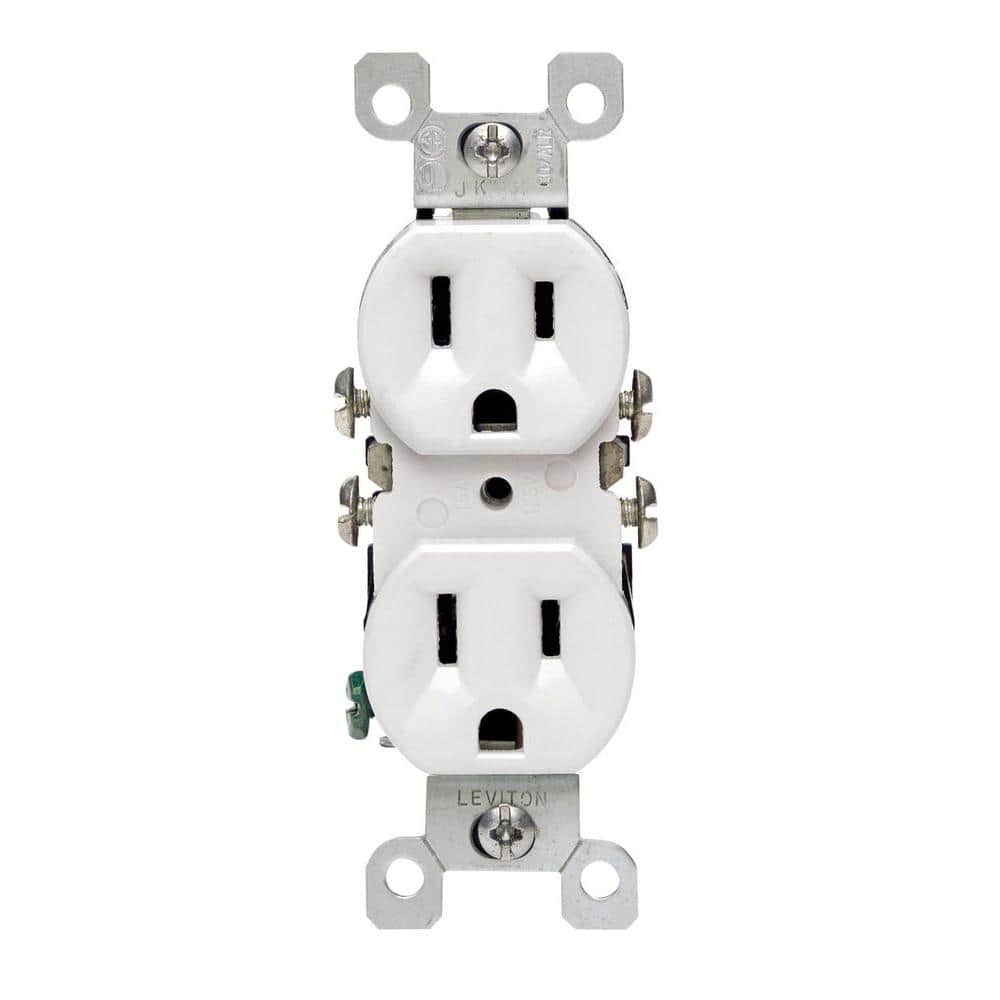

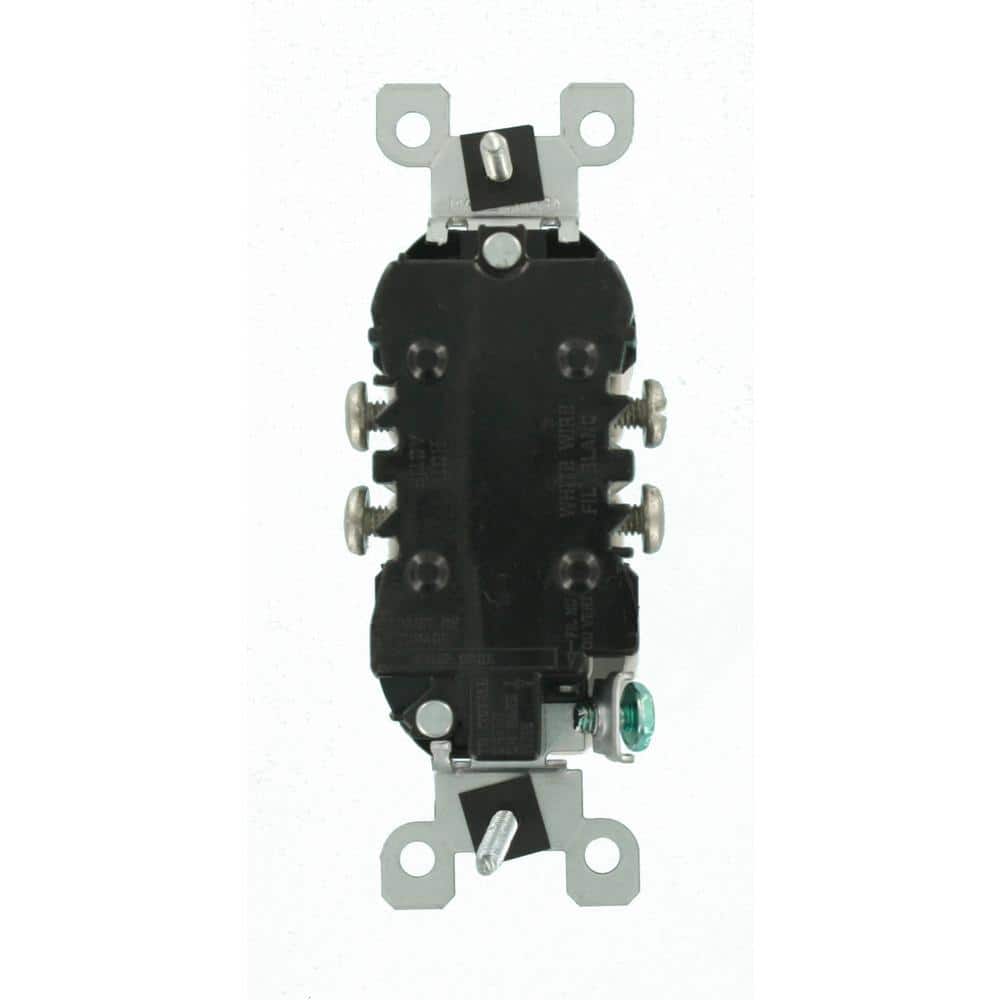

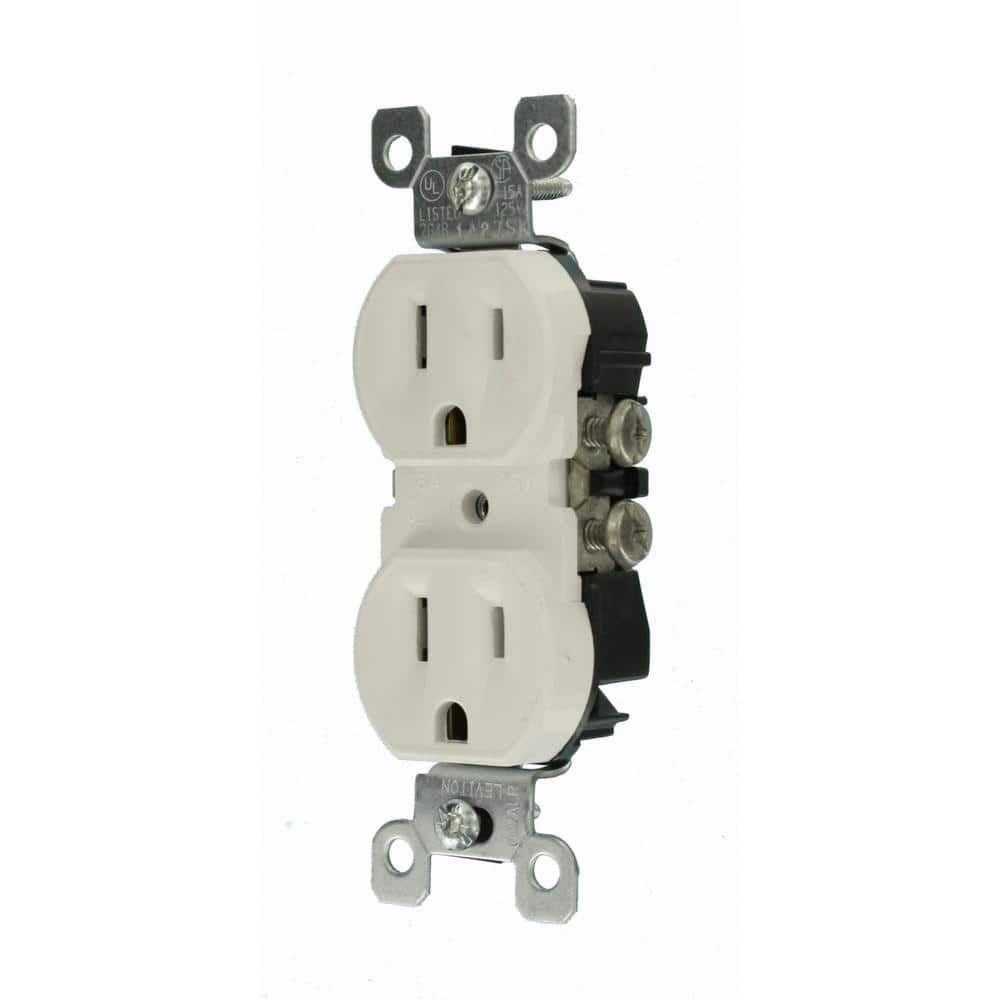

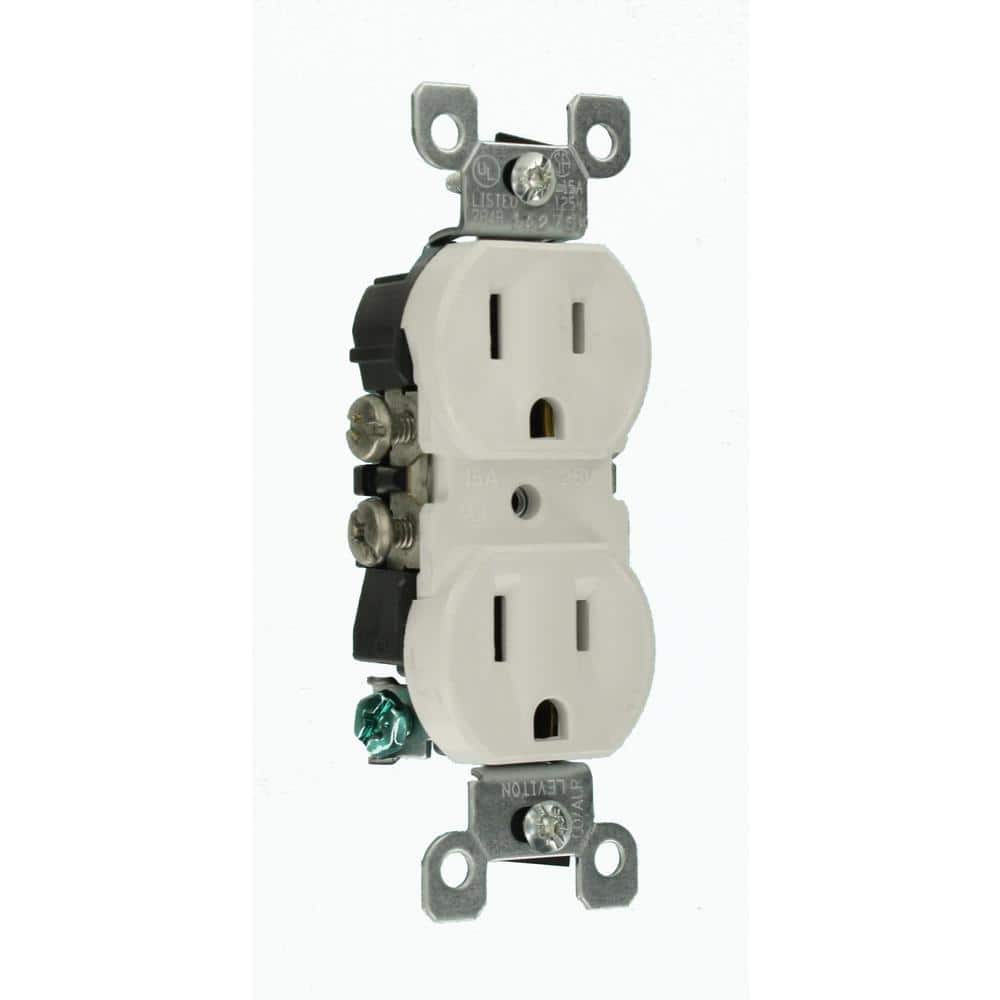

Leviton 15 Amp CO/ALR Duplex Outlet, 125V, White (Model 12650-W)
Published price — same for everyone
In stock
SKU 12650-W
The price on the page is the price.
Find it, price it, order it — without a phone call. Questions on spec, quantity, or freight? Contact us.
Buying more than one thing? Start your list — however you have itFreight and delivery are calculated at checkout — no surprise charges.
Details
15A CO/ALR Duplex Outlet, White
Residential-grade duplex receptacle engineered for aluminum wiring installations. CO/ALR terminal screws grip aluminum conductors tightly for safer connections, with a grounded NEMA 5-15R design for standard 125V circuits.
Key Features:
- CO/ALR Rated: Terminal screws specially designed to grip aluminum wiring securely
- Residential Grade Durability: Heavy-gauge, rust-resistant steel mounting strap
- Compact Install: Shallow body allows maximum wiring room in wall boxes
- Grounded NEMA 5-15R: Standard 125V, 15A receptacle for everyday devices
- Side-Wired Screw Terminals: Straight blade, 2-pole/3-wire configuration
Specifications Table:
| Specification | Details |
|---|---|
| Amperage | 15 A |
| Voltage | 125 V |
| Color | White |
| Color Family | White |
| Outlet Style | Duplex |
| NEMA Configuration | NEMA 5-15R |
| Receptacle Configuration | 5-15 |
| Grounding | Grounded |
| Indoor/Outdoor | Indoor |
| Material | Polycarbonate/Thermoplastic body; heavy-gauge steel mounting strap |
| Mounting Type | In-wall |
| Number of Receptacles | 2 |
| Wire Connection Type | Screw terminal |
| Wire Connection Location | Side |
| Package Quantity | 1 |
| Certifications and Listings | UL Listed, CSA Listed |
| UL Listing | 1-UL Listed |
| Manufacturer Warranty | 5-Year |
| Product Height | 4.125 in |
| Product Width | 1.375 in |
| Product Depth | 1.875 in |
| Features | CO/ALR rated; straight blade; self-grounding option noted |
| Descriptive Notes | Residential grade; 2-pole, 3-wire |
Frequently Asked Questions (FAQ):
Q: Is this outlet required for aluminum wiring?
A: Yes. CO/ALR outlets are specified for use where aluminum branch-circuit wiring is present.
Q: Does it include a wall plate?
A: No, the wall plate is sold separately.
Q: How is it wired?
A: Side-wired using screw terminals; follow local code and manufacturer instructions.
Q: Is the receptacle grounded?
A: Yes, it is a grounded NEMA 5-15R receptacle.
Q: What are the dimensions?
A: Approximately 4.125 in H x 1.375 in W x 1.875 in D.
Quiet Confidence for Everyday Power
This crisp white duplex outlet brings a clean, unobtrusive finish to walls, harmonizing with modern and classic palettes alike. The streamlined face and steel strap speak to durability while keeping the look refined. Pair it with a matching white wall plate for a seamless, gallery-like backdrop to your space. It’s a subtle essential that elevates daily living with dependable performance.
Upgrade to CO/ALR safety and dependable everyday power with Leviton’s 12650-W duplex outlet today.
