SharkBite

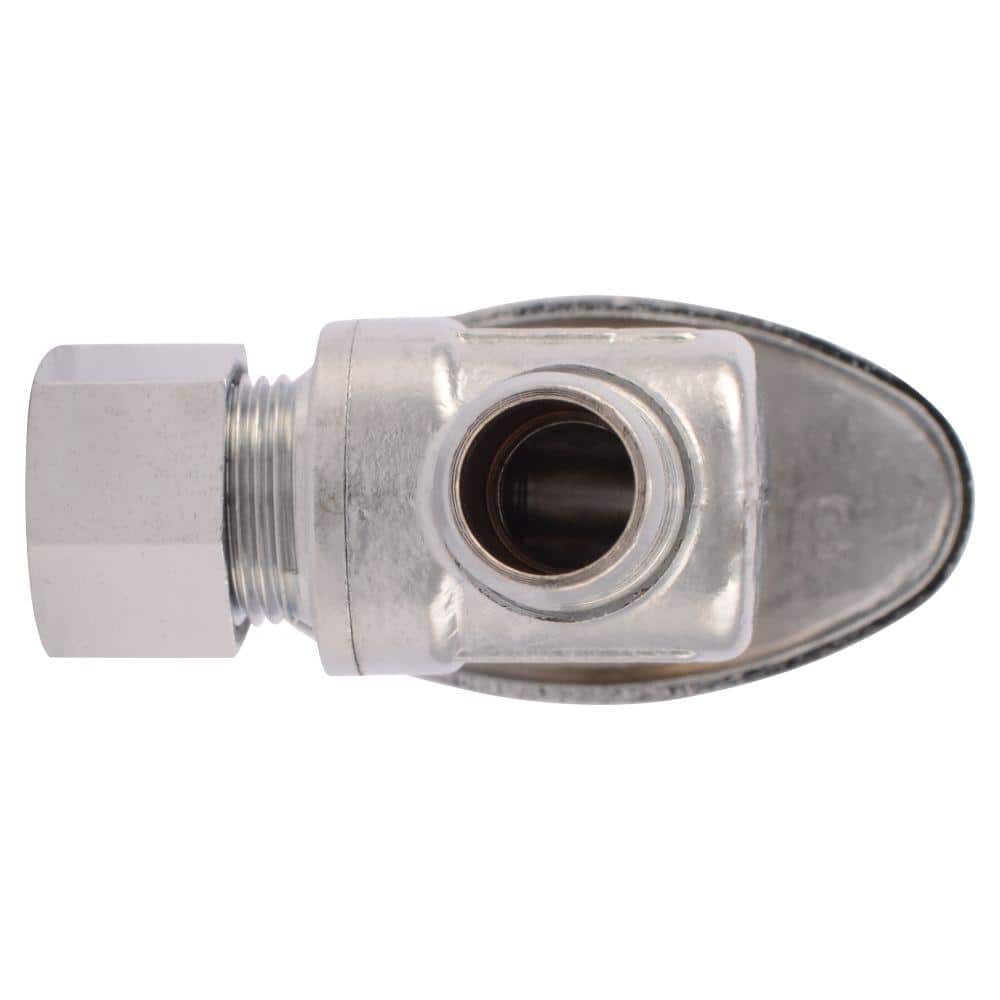

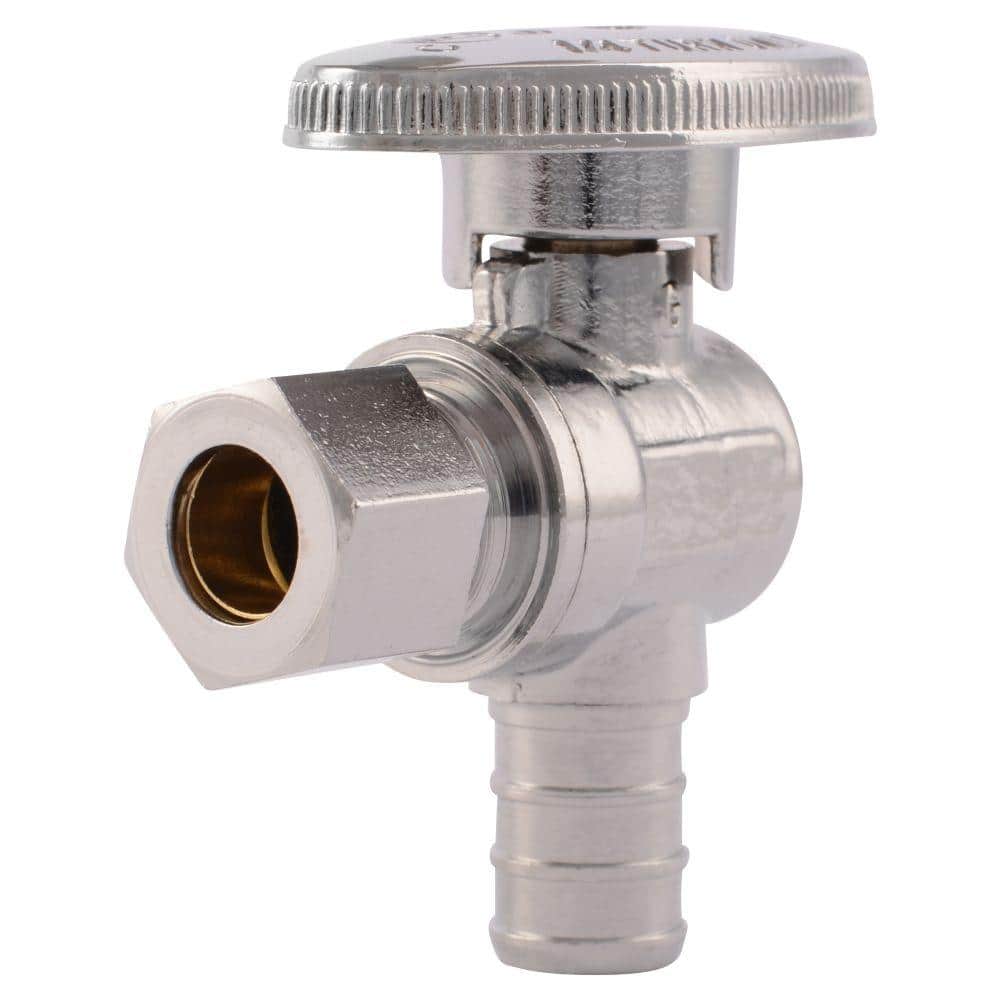

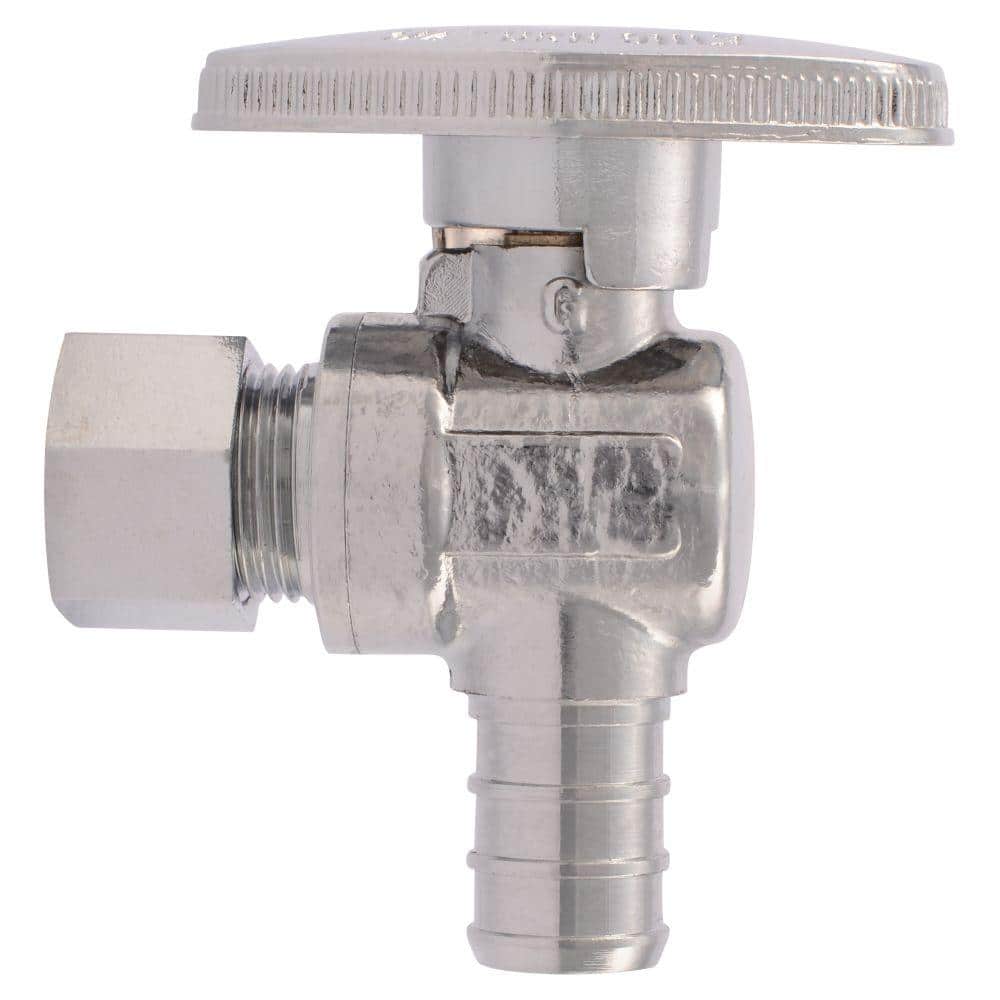

SharkBite Chrome 1/2-in PEX Barb x 3/8-in OD Compression Quarter Turn Angle Valve
Published price — same for everyone
In stock
SKU 23058LF
The price on the page is the price.
Find it, price it, order it — without a phone call. Questions on spec, quantity, or freight? Contact us.
Buying more than one thing? Start your list — however you have itFreight and delivery are calculated at checkout — no surprise charges.
Details
1/2-in PEX x 3/8-in Compression Angle Stop Valve
Quarter-turn angle stop valve for controlling water flow to fixtures. Chrome-plated brass body connects 1/2-in PEX using crimp or clamp rings and outputs to 3/8-in compression. Ideal for faucets, toilets, and dishwashers.
Key Features:
- Quarter-Turn Control: Easy on/off flow with a smooth lever handle
- Durable Construction: Lead-free, chrome-plated DZR brass built for long-term reliability
- PEX Compatibility: 1/2-in barb connects via copper crimp or stainless clamp ring systems
- Standard Outlet: 3/8-in OD compression outlet fits supply lines with included ferrule and nut
- Full-Flow Design: Engineered for maximum water output to fixtures
Specifications Table:
| Specification | Details |
|---|---|
| Valve Type | Supply stop |
| Valve Configuration | Angle |
| Stop Valve Type | Straight |
| Connection | Barb |
| Valve Connection | Clamp/Crimp |
| Compatible Pipe Material | PEX |
| Outlet Fitting End Type | Compression |
| Inlet Fitting End Type | PEX |
| Inlet Size | 1/2 in |
| Valve Inlet Diameter (in.) | 1/2 |
| Outlet Diameter (in.) | 3/8 |
| Inlet Diameter (in.) | 1/4 |
| Material | Chrome-plated lead-free DZR brass |
| Features | Quarter turn |
| Application | Potable water |
| Indoor/Outdoor | Indoor |
| Maximum Pressure (PSI) | 125 |
| Maximum Working Temperature (F) | 160 |
| Product Weight (lb.) | 0.18 |
| Product Depth (in.) | 2.145 |
| Product Height (in.) | 2.145 |
| Product Length (in.) | 0.964 |
| Product Width (in.) | 2.046 |
| Pack Size | 1 |
| Certifications | Meets IAPMO, UPC, IPC, cUPC; ASTM F1807 and F2098; Listed to NSF 14 |
Frequently Asked Questions (FAQ):
Q: Can this valve be used with Type A PEX?
A: Yes, it is designed for use within Type A PEX piping systems.
Q: How is the PEX side connected?
A: Use copper crimp rings or stainless steel clamp rings with the appropriate tool (rings and tool not included).
Q: What fixtures is this suitable for?
A: Commonly used for toilets, faucets, dishwashers, and other household fixtures requiring a shut-off.
Q: What is the maximum working pressure and temperature?
A: Up to 125 PSI and 160°F.
Q: Is hardware for the compression side included?
A: Yes, the ferrule and compression nut for the 3/8-in OD outlet are included.
A Sleek, Functional Accent for Polished Plumbing
This chrome angle stop brings a refined, modern glint to utility spaces while keeping the lines clean and precise. The compact quarter-turn top is a subtle design moment—tactile, intuitive, and beautifully simple. Pair it with streamlined supply lines and a minimalist escutcheon for a cohesive, elevated look under sinks. It’s the small hardware detail that ensures performance with a whisper of luxury.
Upgrade your fixture connections with this durable, easy-control SharkBite angle stop valve today.
