Kwikset

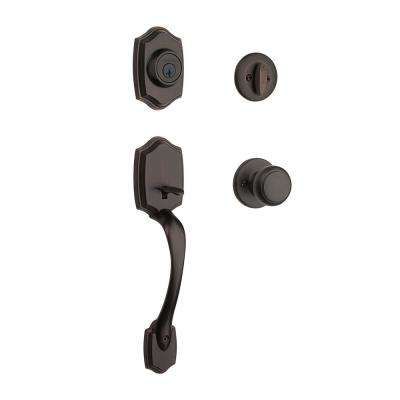

Kwikset Belleview Venetian Bronze Single Cylinder Door Handleset with Cove Door Knob Featuring SmartKey Security
$89.97
Published price — same for everyone
In stock
SKU Model#  687BWXCV 11P SMT CP
The price on the page is the price.
Find it, price it, order it — without a phone call. Questions on spec, quantity, or freight? Contact us.
Buying more than one thing? Start your list — however you have itFreight and delivery are calculated at checkout — no surprise charges.
Details
- Featuring SmartKey Security, which protects against advanced break-in techniques and allows you to re-key your lock yourself in seconds
- SmartKey Security re-key technology is compatible with Kwikset (KW1) keyway
- Fits door thickness of 1-3/4 in.
- For use on exterior doors where keyed entry and security is needed
- Universal handling, fits both right-handed and left-handed doors
- Venetian bronze finish
- Patented side locking bar technology offers improved security by protecting against lock bumping, an attack technique used to defeat conventional pin and tumbler locks
- 2 keys included
- Easy installation - installs in minutes with just a screwdriver
- Features a fully adjustable latch to fit all standard door preparations
Features
| Item Weight | 6 |
| Door Handing | Universal |
| Hardware Finish Family | Bronze |
| Lock Type | Keyed |
| Door Lock Style | Classic |
| Tools/Hardware Collections | Kwikset SmartKey |
| Commercial/Residential | Residential |
| Total Number of Keys Included | 2 |
| Deadbolt Type | Single Cylinder Deadbolt |
| Minimum door thickness (in.) | 1.75 |
| Security/ANSI Grade | ANSI Grade 3 (Good) |
| Knob/lever strike | Round corner |
| Handleset Product Type | 2 Piece Front & Back |
| Application Type | Entry |
| Lock Type2 | Keyed Entry |
| Backset size (in.) | Adjustable |
| Material | Metal |
| Product Weight (lb.) | 1 |
| Keying Type | Keyed Different |
| Deadbolt strike | Round corner |
| Returnable | 180-Day |
| Knob style | Flat ball |
| Door Locks & Knobs Product Type | Keyed Handlesets |
| Interior/Exterior | Exterior |
| Features | Easy Installation |
| Electronic/Mechanical | Mechanical |
| Finish | Venetian Bronze |
| Included | Hardware,Installation Instructions |
| Assembled Height (in.) | 18.06 in |
| Deadbolt cross bore diameter (in.) | 2.125 |
| Outside bottom handle plate width (in.) | 1.0 |
| Knob/lever bore hole diameter (in.) | 2.125 |
| Projection (in.) | 2.5 |
| Deadbolt bore hole diameter (in.) | 1 |
| Deadbolt trim ring diameter (in.) | 3.0 |
| Outside key plate length (in.) | 1.0 |
| Knob/lever strike height (in.) | 2.25 |
| Assembled Width (in.) | 2.931 in |
| Outside top handle plate length (in.) | 1.0 |
| Knob/lever cross bore diameter (in.) | 1.0 |
| Assembled Depth (in.) | 2.15625 in |
| Outside bottom handle plate length (in.) | 1.0 |
| Knob/lever strike width (in.) | 1.0 |
| Knob/lever housing width (in.) | 2.625 |
| Knob/lever throw length (in.) | 0.5 |
| Inside top plate width (in.) | 1.0 |
| Handle grip length (in.) | 1.0 |
| Deadbolt strike width (in.) | 1.0 |
| Knob Diameter (in.) | 2.1875 |
| Outside key plate width (in.) | 1.0 |
| Deadbolt strike height (in.) | 2.25 |
| Maximum door thickness (in.) | 1.75 |
| Inside top plate length (in.) | 1.0 |
| Deadbolt throw length (in.) | 1.0 |
| Outside top handle plate width (in.) | 1.0 |
| Knob/lever housing height (in.) | 2.625 |
| Manufacturer Warranty | Lifetime mechanical and finish warranty |
| Certifications and Listings | No Certifications or Listings |
