Leviton 15 Amp Self-Test SmartlockPro Slim Duplex GFCI Outlet, White
Published price — same for everyone
In stock
SKU R12-GFNT1-0KW
The price on the page is the price.
Find it, price it, order it — without a phone call. Questions on spec, quantity, or freight? Contact us.
Buying more than one thing? Start your list — however you have itFreight and delivery are calculated at checkout — no surprise charges.
Details
15A SmartlockPro Slim GFCI Duplex Outlet - White
Leviton’s SmartlockPro self-test GFCI provides continuous ground-fault protection in a slim, easy-to-install duplex outlet. Auto-monitoring electronics self-test, while patented reset lockout prevents reset if protection is compromised. The low-profile design fits shallow boxes and pairs with Decora wall plates for a clean finish.
Key Features:
- Continuous Protection: Self-tests automatically and trips on actual ground faults to meet latest UL standards
- Patented Safety Lockout: Prevents reset if the GFCI is miswired or protection is lost

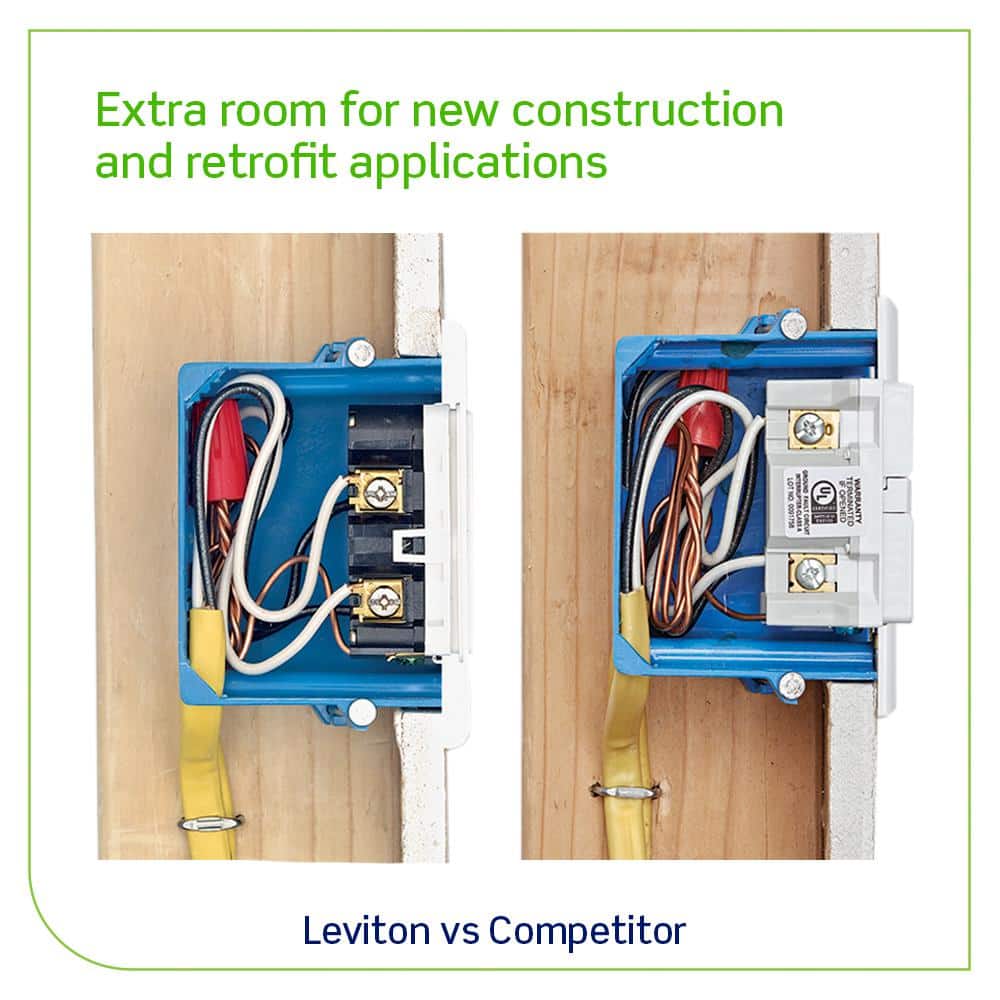

- Slim, Easy Install: Reduced depth fits shallow electrical boxes; back and side wire capable
- Durable Build: Polycarbonate/nylon construction with surge- and over-voltage-resistant electronics
- Clear Status Feedback: Indicator light shows power, protection, and line/load reversal status
Please check the Product Data Sheet Here
Specifications Table:
| Specification | Details |
|---|---|
| Amperage | 15 A |
| Voltage | 125 V |
| Outlet Style | Duplex |
| NEMA Configuration | NEMA 5-15R / Receptacle 5-15 |
| Number of Receptacles | 2 |
| Color | White |
| Material | Polycarbonate body; Nylon outlet |
| Grounding | Grounded; standard brass self-grounding clip |
| Mounting Type | Screw-In |
| Wire Connection Type | Screw Terminal |
| Wire Connection Location | Side; back and side wire capable with external back wire clamps |
| Indoor/Outdoor | Indoor |
| Wall Plate Included | No |
| Safety Rating | GFCI; UL fed spec WC-596 rated |
| Certifications and Listings | UL Listed, CSA Listed |
| Package Quantity | 1 |
| Product Height | 3.81 in |
| Product Width | 1.68 in |
| Product Depth | 1.02 in |
| Features | Self-test auto-monitoring; patented reset lockout; improved noise immunity; surge/over-voltage resistance; status indicator light; reduced depth for easier installation |
| Durability | Withstands high torque; resists wire pullout |
| USB Ports | No USB |
Frequently Asked Questions (FAQ):
Q: Is a wall plate included?
A: No, the wall plate is sold separately and any standard Decora wall plate is compatible.
Q: Can this be installed in a shallow electrical box?
A: Yes, the slim profile is designed to fit shallow boxes for easier installation.
Q: What wiring options are available?
A: It supports both side and back wiring with screw terminals and external back wire clamps.
Q: Where should a GFCI like this be used?
A: Indoors in locations requiring GFCI protection such as kitchens, bathrooms, garages, and basements.
Q: What certifications does it carry?
A: UL Listed and CSA Listed; rated GFCI, NEMA 5-15R, 125V, 15A.
A Sleek Safety Essential for Modern Spaces

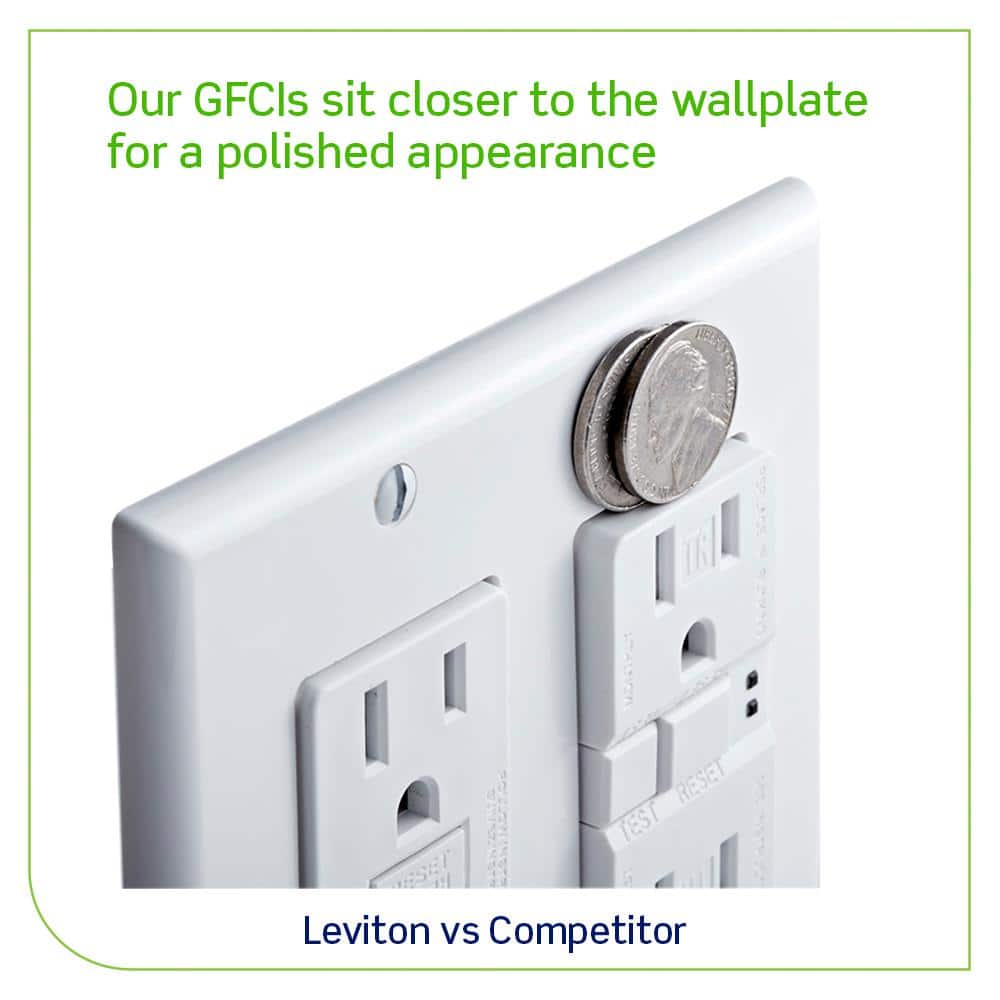

This slim GFCI outlet recedes elegantly into the wall, delivering a cleaner, more refined silhouette across your backsplash or bath. The minimalist Decora face with subtle test/reset paddles keeps the eye on your finishes while quietly elevating safety. Pair it with a matching screwless wall plate for a seamless, gallery-like look. It’s the understated luxury detail that protects and perfects everyday living.
Upgrade to reliable, slim-profile protection—add this SmartlockPro GFCI to your cart today.
