Leviton
Leviton 50 Amp Double Pole Single Outlet, Black (Surface Mount, NEMA 6-50R)
Published price — same for everyone
In stock
SKU R20-05378-P00
The price on the page is the price.
Find it, price it, order it — without a phone call. Questions on spec, quantity, or freight? Contact us.
Buying more than one thing? Start your list — however you have itFreight and delivery are calculated at checkout — no surprise charges.
Details

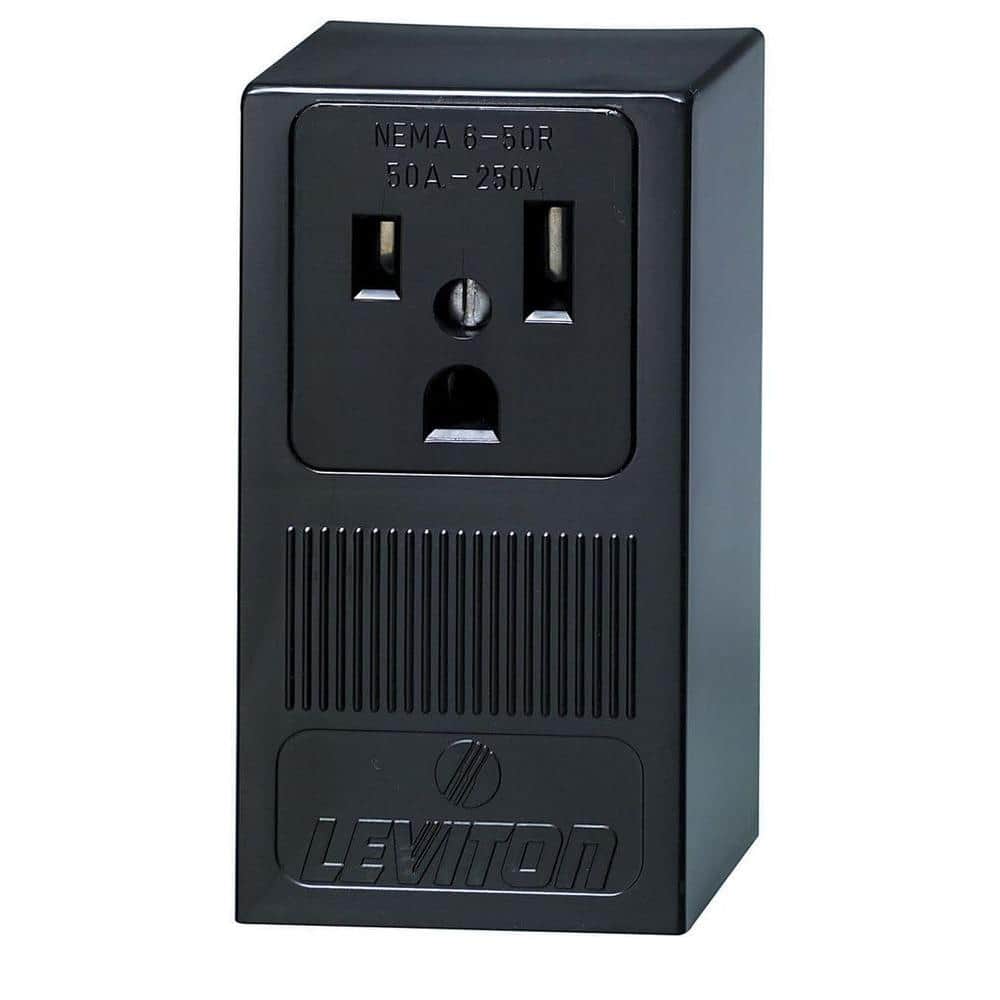

50A Surface-Mount Single Power Outlet
A heavy-duty Leviton surface-mount outlet designed for 50A, 250V equipment. Built with tough thermoplastic construction and marked terminals for fast, reliable wiring in industrial and workshop settings.
Key Features:
- Industrial-Grade Build: Tough thermoplastic housing with heavy-gauge, double-wire alloy contacts for long service life

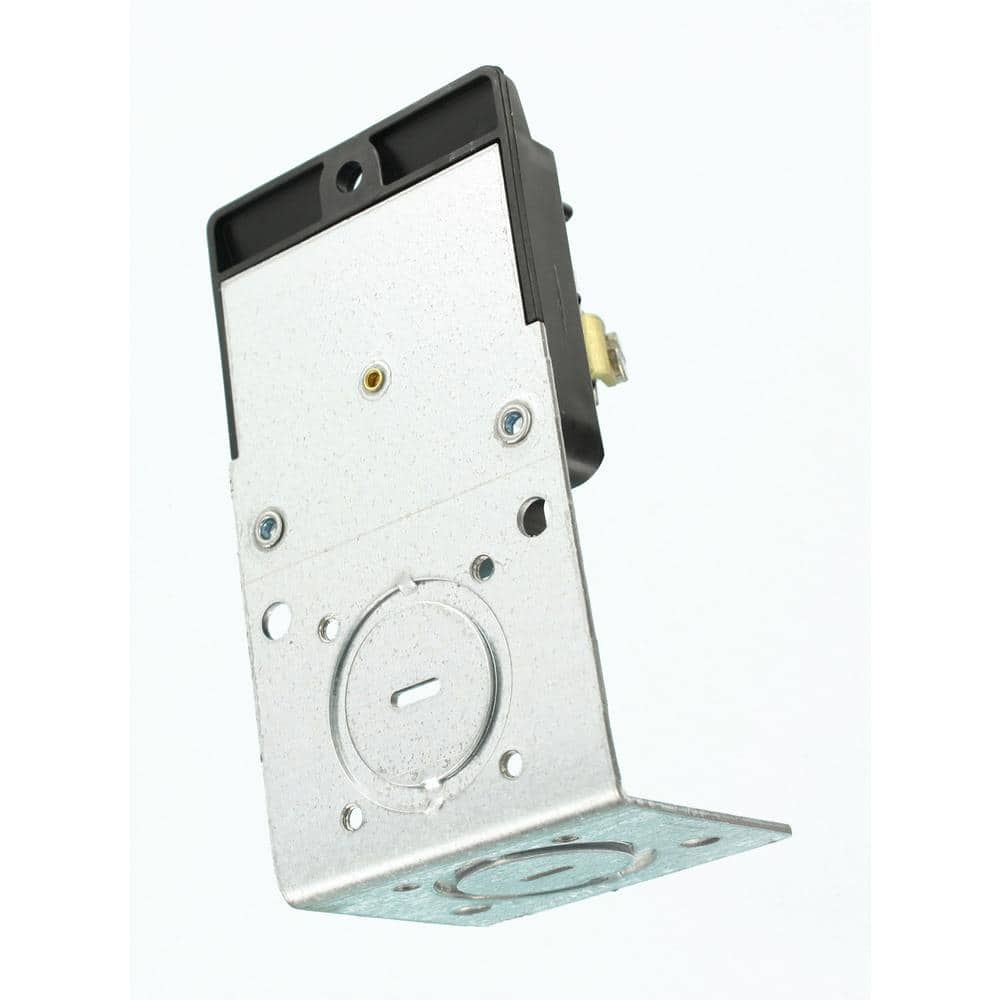

- Surface-Mount Design: Installs to boxes or surfaces for convenient placement in shops and garages

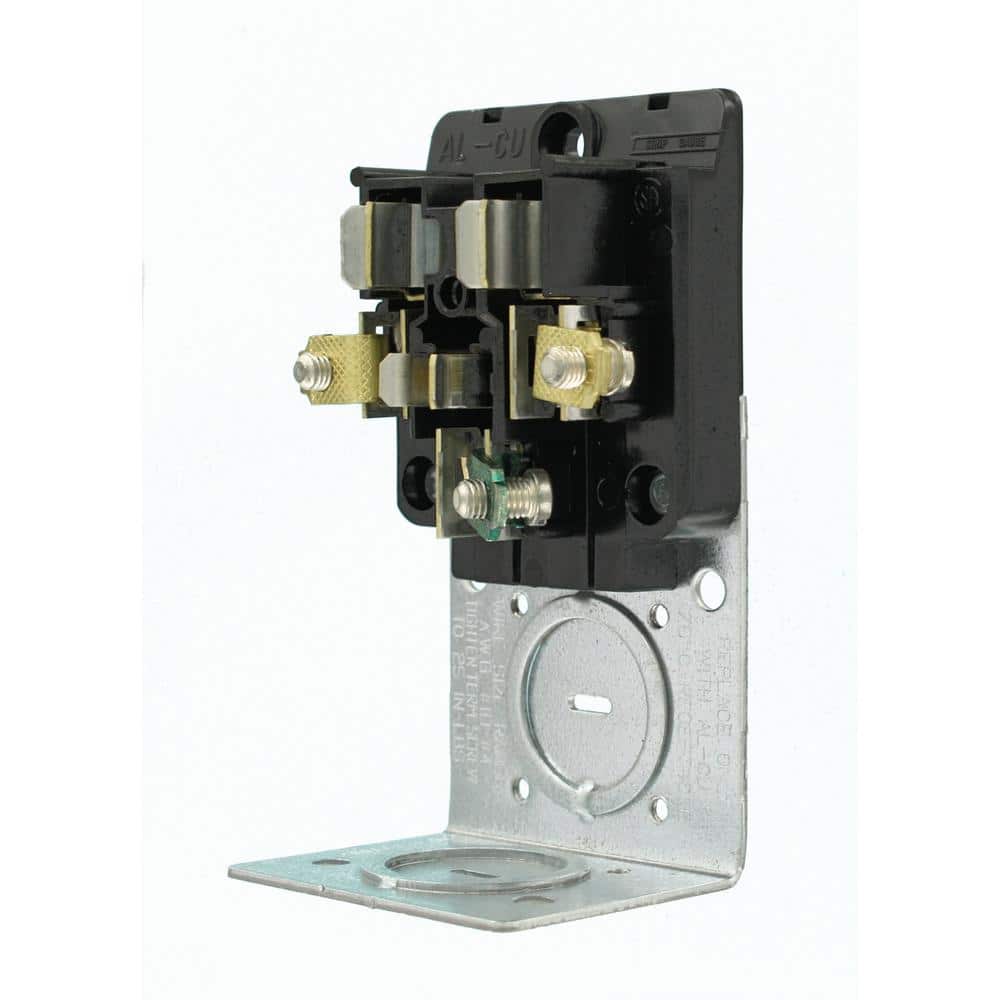

- Fast Wiring: Clearly marked screw terminals with back and side wire connection options
- High-Power Compatibility: 50A, 250V rating with NEMA 6-50R configuration; single receptacle
- Certified Safety: UL and CSA listed; withstands 2000V per UL498
Specifications Table:
| Specification | Details |
|---|---|
| Amperage | 50 A |
| Voltage | 250 V |
| Color | Black |
| Material | Thermoplastic |
| Mounting Type | Surface Mount |
| NEMA Configuration | 6-50R |
| Number of Receptacles | 1 |
| Outlet Style | Single |
| Wire Connection Type | Screw Terminal |
| Wire Connection Location | Back, Side |
| Grounding | Ungrounded |
| Certifications and Listings | CSA Listed, UL Listed |
| Product Height | 4.06 in |
| Product Width | 1.56 in |
| Product Depth | 1.09 in |
| Package Quantity | 1 |
| Withstands | 2000-Volt per UL498 |
Frequently Asked Questions (FAQ):
Q: What wiring connections does this outlet support?
A: It uses screw terminals and supports back and side wire connections for aluminum or copper conductors.
Q: Is this outlet grounded?
A: It is an ungrounded, two-pole receptacle in the NEMA 6-50R configuration.
Q: Can it be used outdoors?
A: It is intended for indoor use; install in dry locations per the installation guide.
Q: What are the dimensions?
A: Approx. 4.06 in H x 1.56 in W x 1.09 in D.
Q: Is there a warranty?
A: Yes, Leviton provides a 10-year limited warranty.
Power, Poised and Precise
This sleek black outlet delivers a clean, architectural silhouette that elevates utility into design. The surface-mount profile and ribbed front detail create a subtle industrial moment, perfect for refined garages or workshops. Pair it with matte black hardware and polished concrete for a cohesive, modern utility wall. It’s a smart, sophisticated essential for high-performance, luxurious living.
Upgrade to dependable 50A power—choose this Leviton surface-mount outlet for a fast, durable installation.
