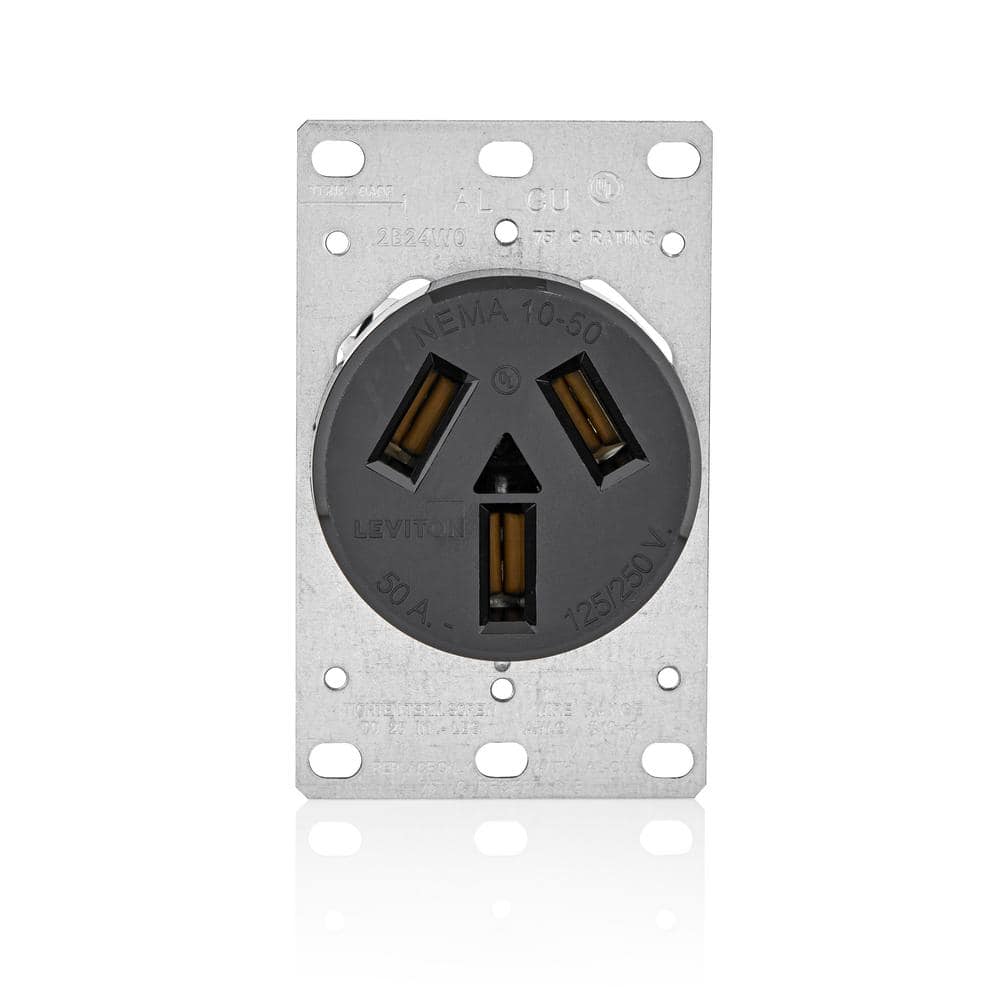

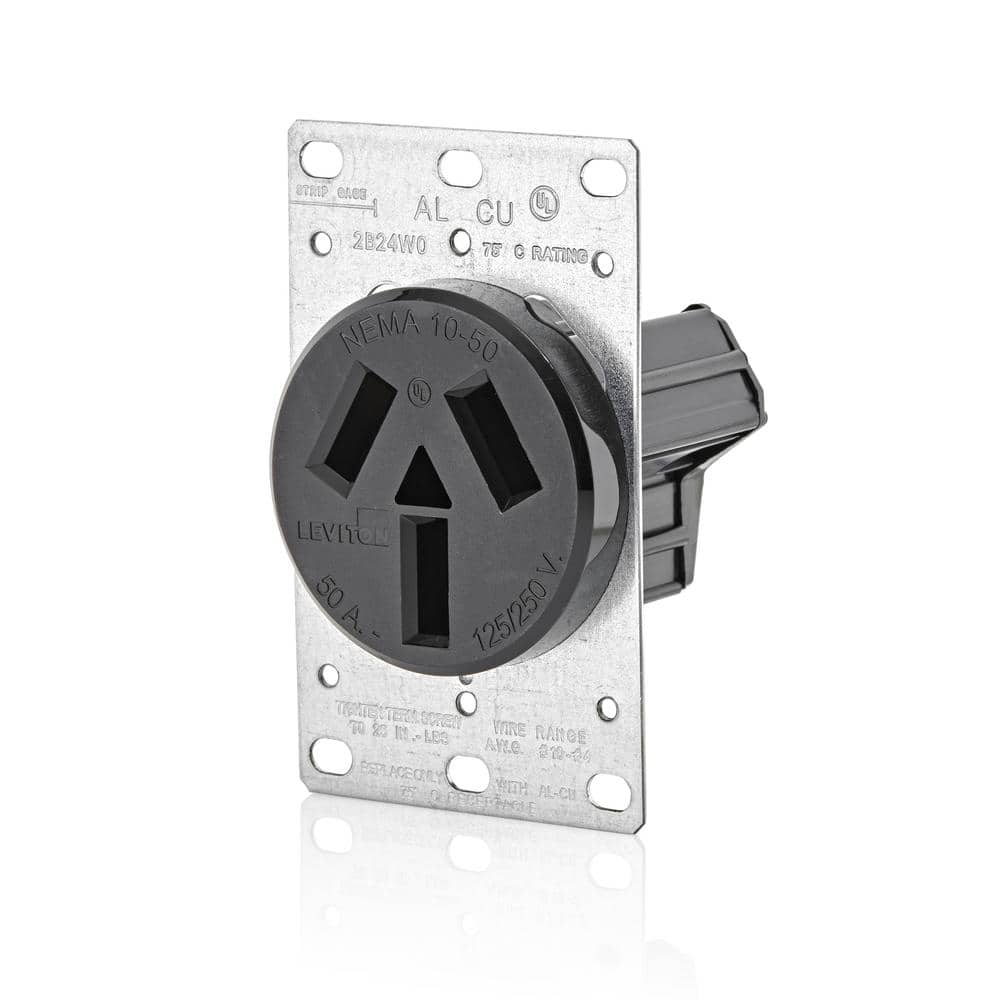

Leviton 50 Amp 125/250-Volt Shallow Flush Mounted Single Outlet, Black (NEMA 10-50R)
Published price — same for everyone
In stock
SKU R30-05206-S10
The price on the page is the price.
Find it, price it, order it — without a phone call. Questions on spec, quantity, or freight? Contact us.
Buying more than one thing? Start your list — however you have itFreight and delivery are calculated at checkout — no surprise charges.
Details
50A 125/250V Shallow Flush Single Outlet (Black)
Heavy-duty Leviton power receptacle designed for 50A, 125/250V applications. The shallow, flush-mount design fits 2.15 in. wallplates and features durable thermoplastic construction for long service life.
Key Features:
- Heavy-Duty Build: Thermoplastic body with heavy-gauge, double-wire copper alloy contacts for reliable performance
- Shallow Flush Design: Fits wallplates with 2.15 in. diameter center hole for a clean, low-profile install
- Fast Wiring: Back and side screw terminals with clear ID markings speed up installation
- Certified Safe: UL and CSA listed for trusted compliance
- NEMA 10-50R: Single receptacle configuration rated 50A, 125/250V for ranges and similar appliances
Specifications Table:
| Specification | Details |
|---|---|
| Amperage | 50 A |
| Voltage | 125/250 V |
| NEMA Configuration | 10-50R |
| Receptacle Configuration | 10-50 |
| Outlet Style | Single |
| Number of Receptacles | 1 |
| Color | Black |
| Material | Thermoplastic |
| Outlet Material | Thermoplastic |
| Mounting Type | In-Wall, Flush Mount, Shallow |
| Wire Connection Type | Screw Terminal |
| Wire Connection Location | Back, Side |
| Grounding | Ungrounded |
| Indoor/Outdoor | Indoor |
| Certifications and Listings | UL Listed, CSA Listed |
| Manufacturer Warranty | 10 Year Limited |
| Product Height | 4.82 in |
| Product Width | 2.68 in |
| Product Depth | 2.04 in |
| Fits Wallplate Opening | 2.15 in diameter |
| Contacts | Heavy-gauge, double-wire copper alloy contacts |
| Package Quantity | 1 |
Frequently Asked Questions (FAQ):
Q: What wallplate size does this outlet require?
A: Use a 2-gang wallplate with a 2.15 in. opening to complete installation.
Q: Is this outlet grounded?
A: No, it is an ungrounded NEMA 10-50R receptacle.
Q: Can it be wired from the back or side?
A: Yes, it supports back and side wiring using screw terminals.
Q: Is it rated for outdoor use?
A: No, it is intended for indoor applications.
Q: What certifications does it have?
A: It is UL Listed and CSA Listed.
Sleek Utility with a Pro-Grade Presence
This flush-mounted outlet lends a crisp, architectural detail to hardworking spaces, from laundry rooms to utility nooks. Its low-profile, round face and matte black finish feel tailored and intentional. Pair it with a streamlined 2-gang wallplate to keep the look clean while delivering serious power. It’s a discreet essential that elevates function to a refined, everyday luxury.
Power your project with a durable, code-compliant Leviton 50A outlet—add it to your cart today.
