Leviton

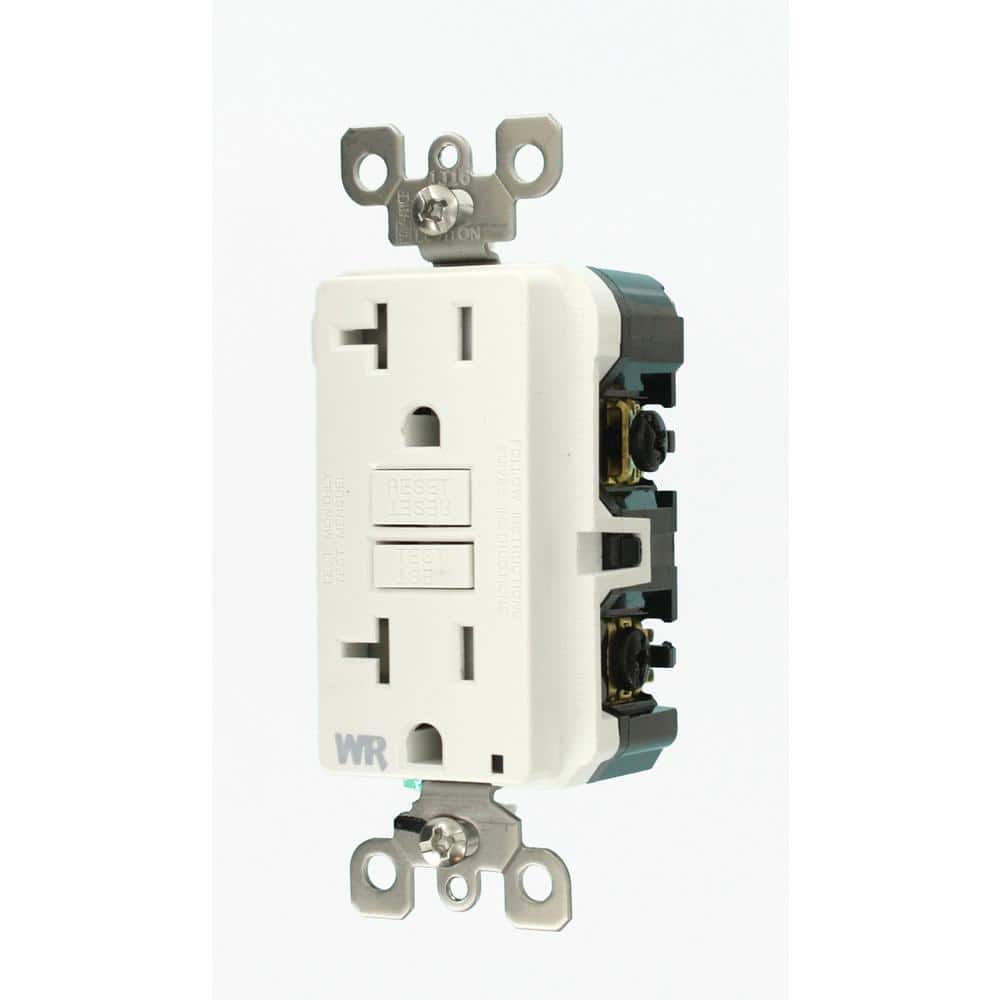

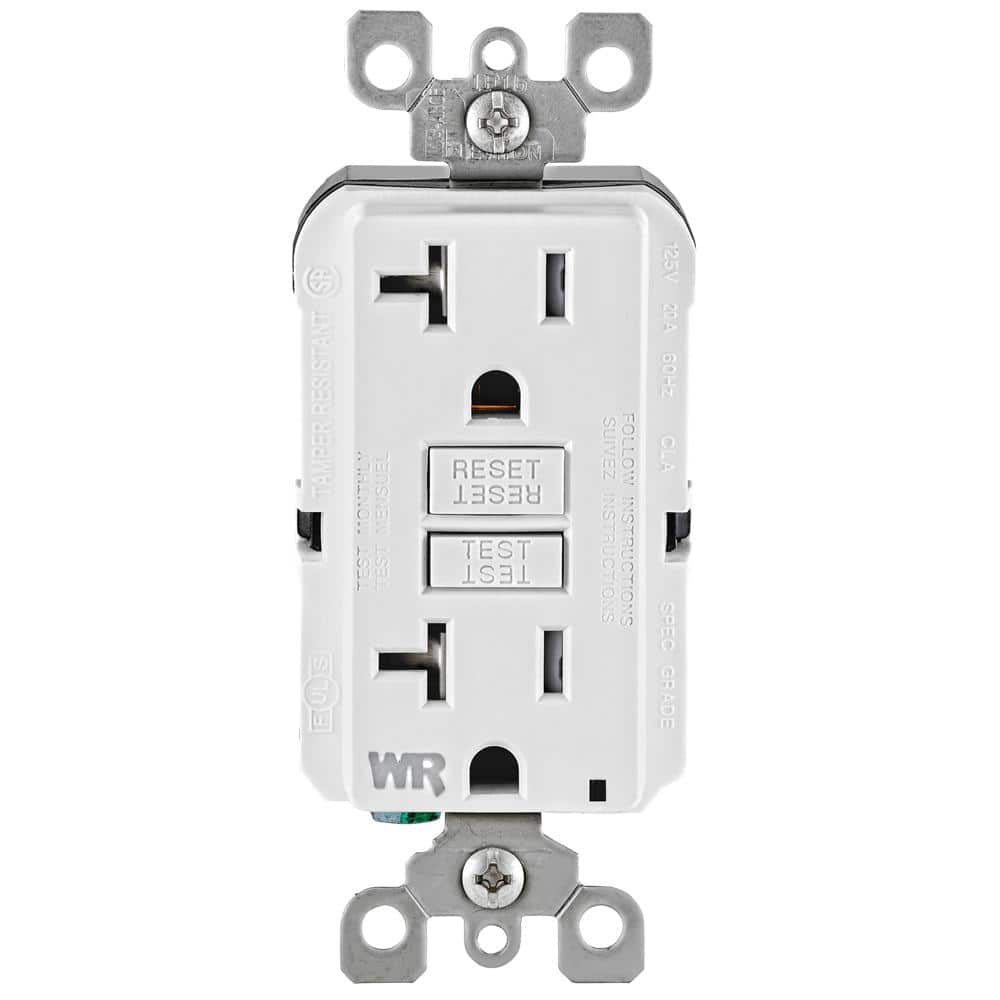

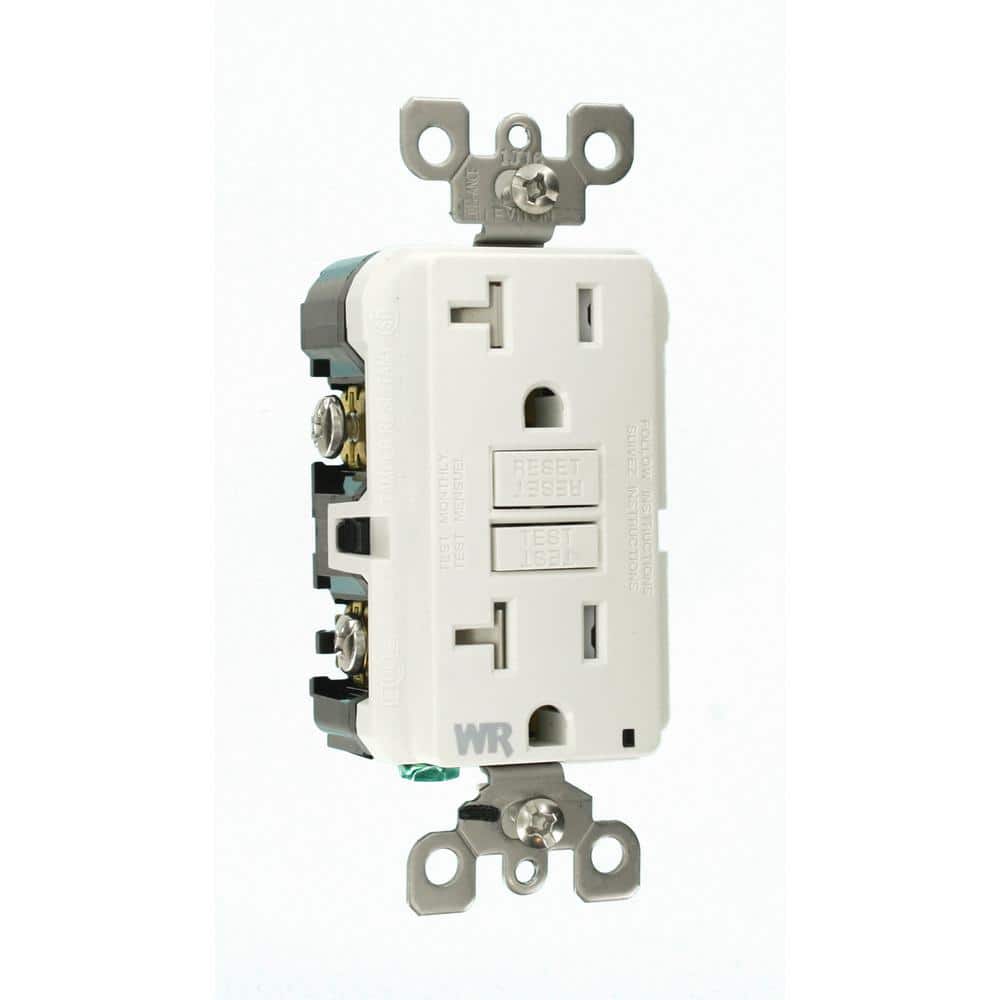

Leviton 20 Amp 125-Volt Duplex Self-Test Tamper-Resistant/Weather-Resistant GFCI Outlet, White (R92-GFWT2-0KW)
Published price — same for everyone
In stock
SKU R92-GFWT2-0KW
The price on the page is the price.
Find it, price it, order it — without a phone call. Questions on spec, quantity, or freight? Contact us.
Buying more than one thing? Start your list — however you have itFreight and delivery are calculated at checkout — no surprise charges.
Details
20A Self-Test TR/WR GFCI Duplex Outlet, White
Leviton’s SmartlockPro 20A GFCI provides continuous ground-fault protection with auto self-testing to verify safe operation. Its slim, spec-grade design installs easily in shallow boxes and is both tamper-resistant and weather-resistant for indoor or outdoor use.
Key Features:
- Auto-Monitoring Safety: Self-tests regularly and locks out reset if protection is compromised.
- TR/WR Durability: Tamper-resistant shutters and weather-resistant construction for indoor/outdoor locations.

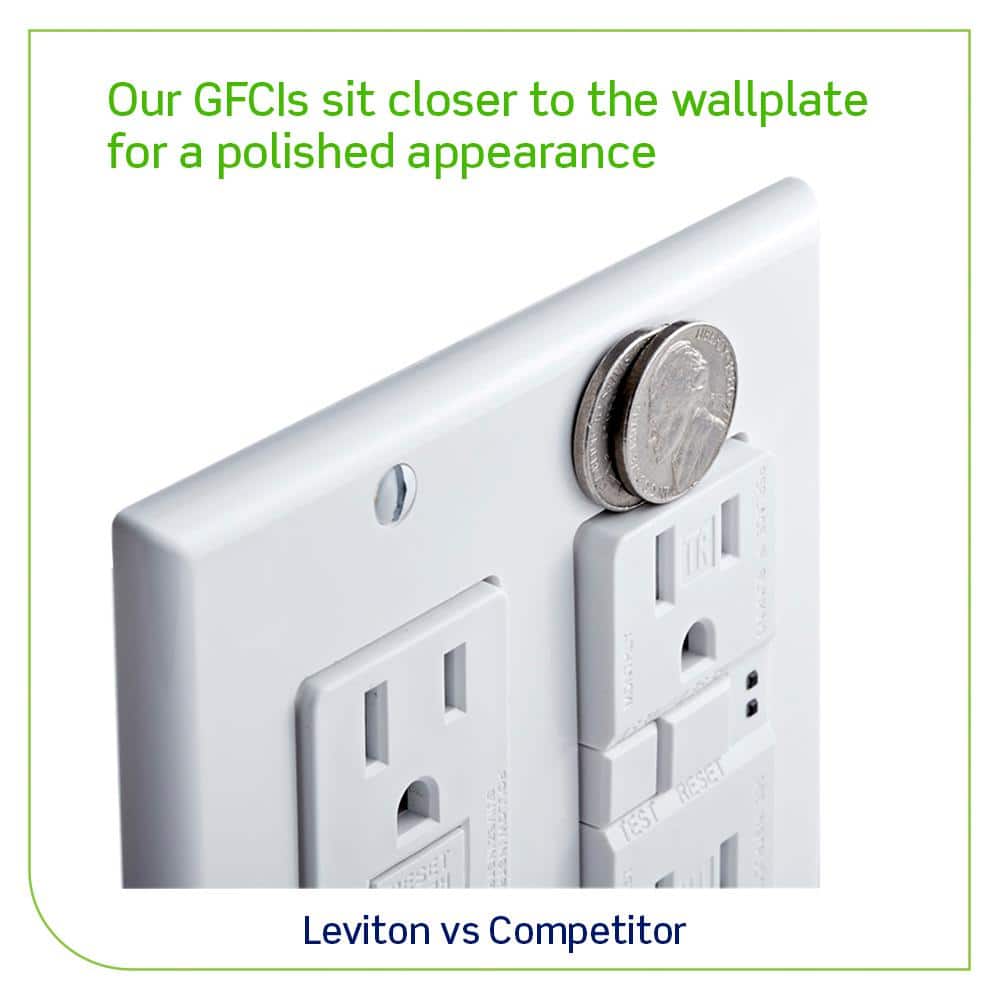

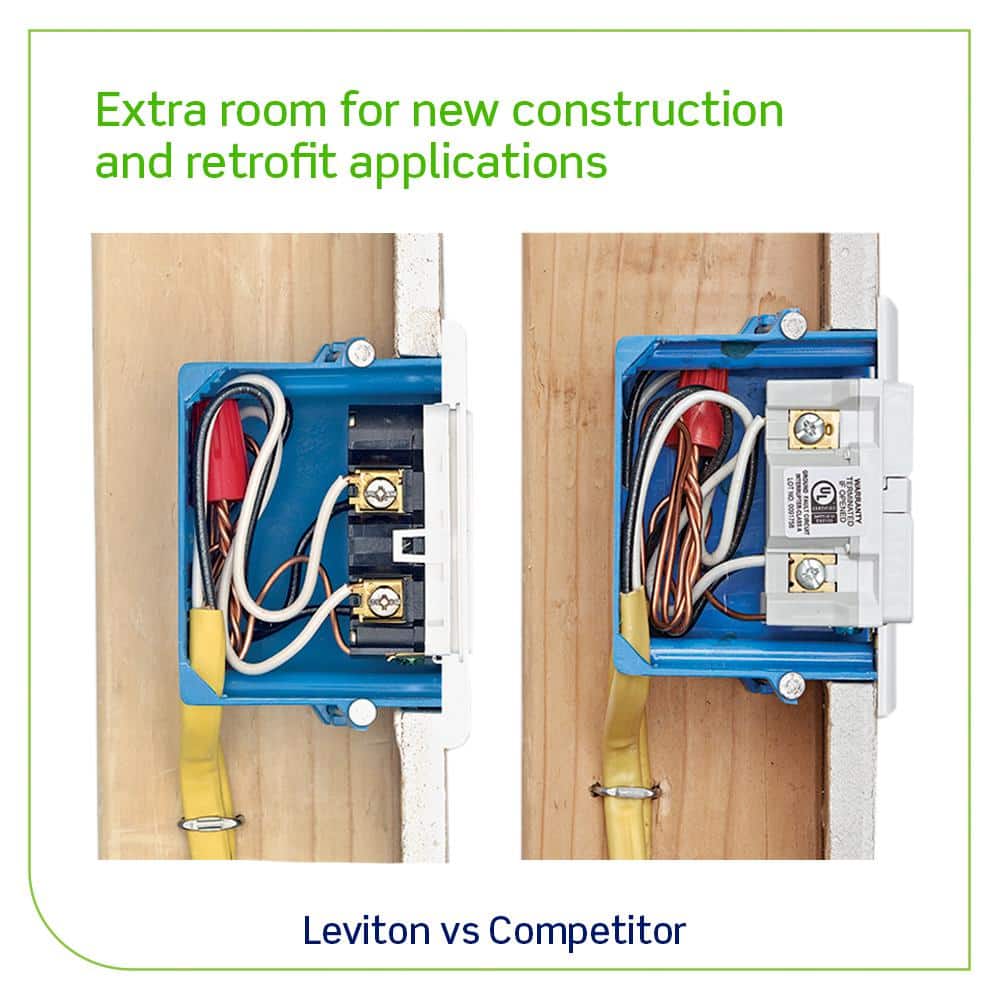

- Slim Profile: Reduced depth simplifies installation in tight or retrofit electrical boxes.

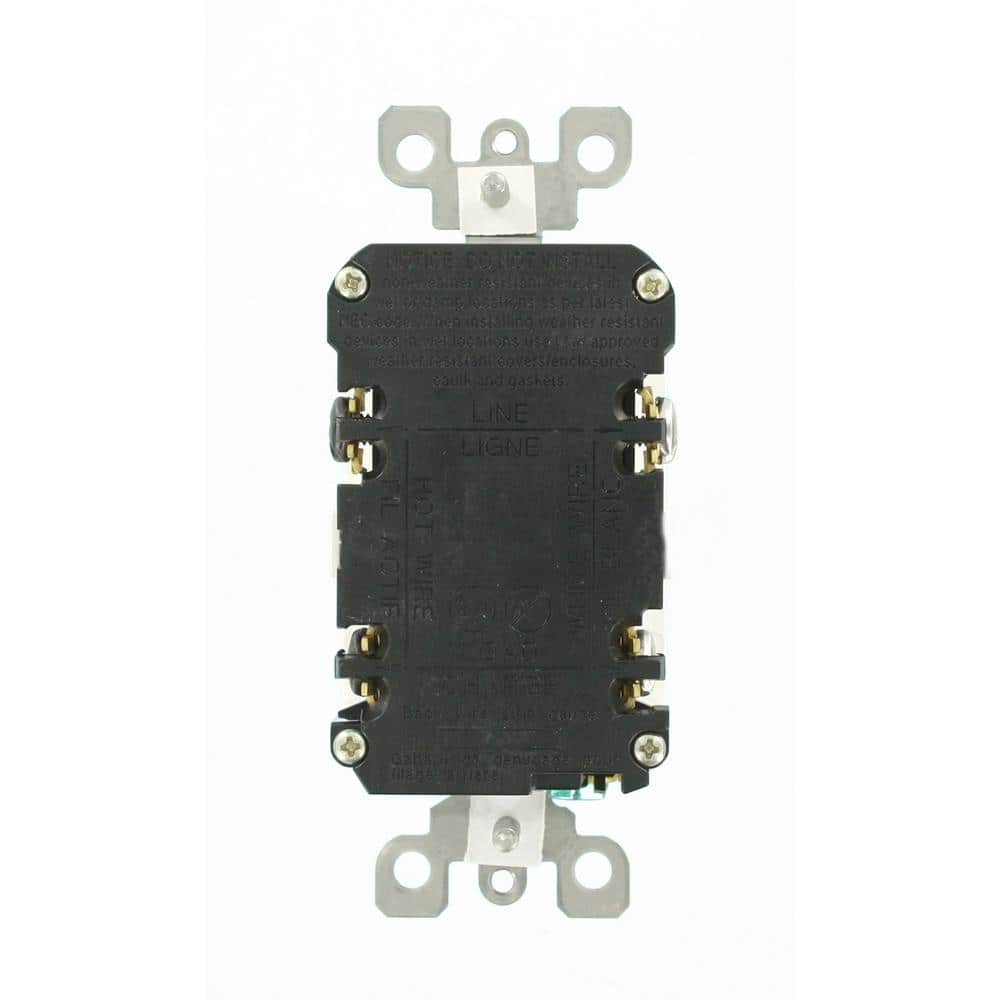

- Easy Wiring: Back and side wire capable with external back-wire clamps for secure connections.
- Status Indicator: LED provides intuitive power, protection, and line/load reversal feedback.
Please check the Product Data Sheet Here
Specifications Table:
| Specification | Details |
|---|---|
| Amperage | 20 A |
| Voltage | 125 V |
| Outlet Style | Duplex |
| NEMA Configuration | 5-20R |
| Receptacle Configuration | 5-20 |
| Number of Receptacles | 2 |
| Color/Finish | White |
| Color Family | White |
| Grounding | Grounded |
| Indoor/Outdoor | Indoor, Outdoor |
| Durability | Tamper Resistant; Weather Resistant |
| Material | Polycarbonate face; Nylon outlet components; Stainless steel strap and screws |
| Mounting Type | Screw-In |
| Wire Connection Type | Screw Terminal |
| Wire Connection Location | Side; Back-wire capable with external clamps |
| Package Quantity | 1 |
| Safety Rating | GFCI |
| Certifications and Listings | CSA Certified; UL Listed; UL Fed Spec WC-596 rated |
| Manufacturer Warranty | 2-Year Limited |
| Product Depth | 1.02 in |
| Product Height | 3.81 in |
| Product Width | 1.68 in |
| Features | Self-test (auto-monitoring), patented reset lockout, status indicator light, improved immunity to high-frequency noise, surge/over-voltage resistant, reduced depth for easier installation, withstanding high torque and resisting wire pullout, compatible with Decora wall plates |
Frequently Asked Questions (FAQ):
Q: Is a wall plate included?
A: No, the wall plate is sold separately.
Q: Can this GFCI be installed outdoors?
A: Yes, it is weather resistant; use in approved outdoor enclosures and covers.
Q: What wiring options are available?
A: It supports both side and back wiring with screw terminals and back-wire clamps.
Q: What is the amperage and voltage rating?
A: Rated 20 amps, 125 volts, NEMA 5-20R configuration.
Q: Is it compatible with Decora wall plates?
A: Yes, it is compatible with Decora devices and wall plates.
Clean, Safe Power with a Sleek, Low-Profile Face
This GFCI’s crisp white face and slim silhouette melt into modern backsplashes and spa-like baths, keeping the focus on refined surfaces. The subtle LED and sculpted reset/test buttons feel tailored and intentional. Pair it with a matching Decora wall plate for a seamless, gallery-like finish from kitchen to patio. Safety becomes an elegant essential in a luxuriously edited space.
Choose Leviton’s self-testing 20A GFCI to upgrade safety and style in minutes—indoors or out.
