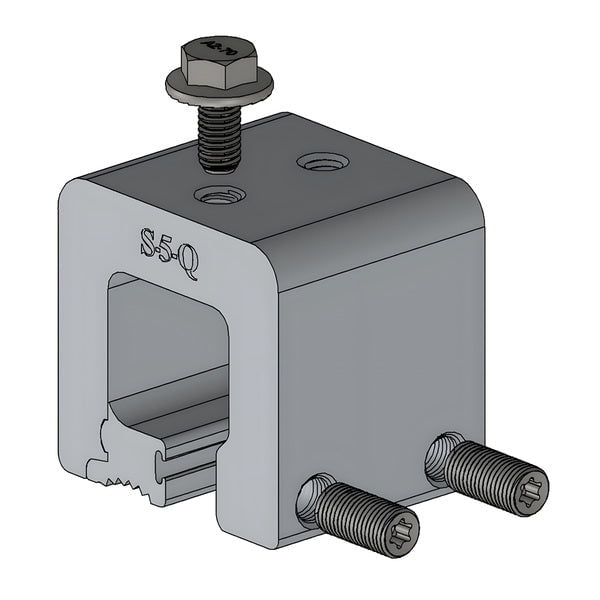

S-5-Q Metal Roof Clamps

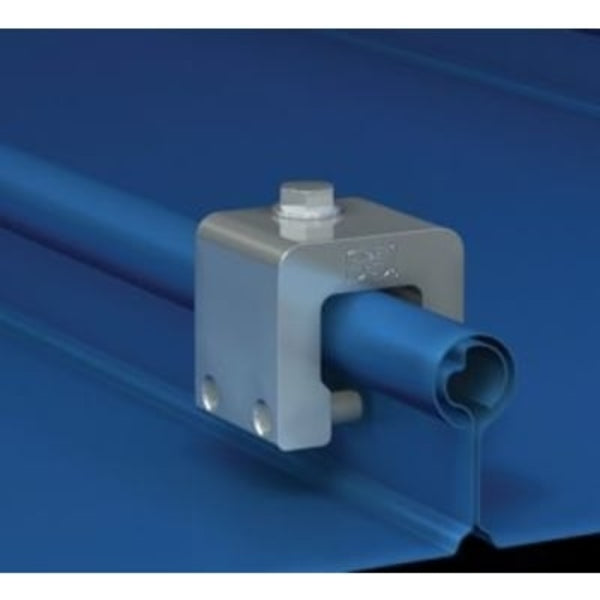

The S-5-Q clamp (“Q” represents the shape of the clamp) allows for the attachment of snow guards and other heavy-duty applications to metal roof panels featuring large, round (such as Zip-Rib®, BEMO, Kalzip®) and similar “bulb” seam configurations.

The Q will also fit smaller, “bulb-shaped” profiles (dia ≤ 0.75”; 19 mm) if the seam is not properly closed. (Also, check out the more cost-effective S-5-Z for these applications when seams are properly closed).

Specifications:

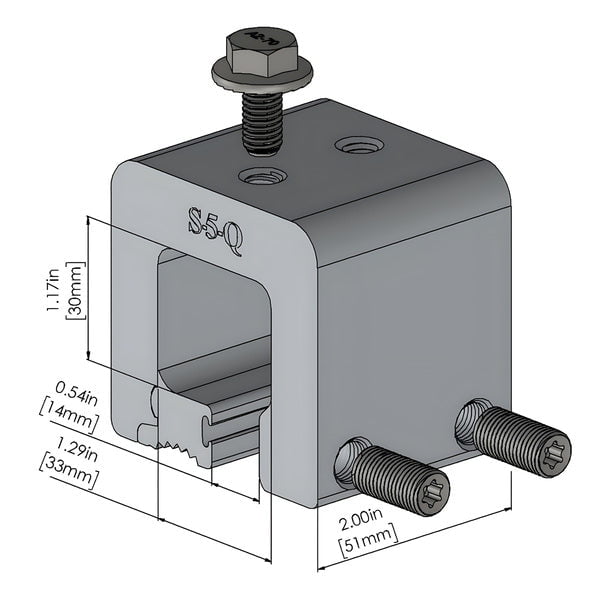

• Fits all of the profiles the Z fits and also accommodates standing seam metal roof panels with large, round “bulb” seam configurations up to 1.14” (29 mm) in diameter
• Heavy-duty applications, such as snow retention
• Two T-30 Torx round-point setscrews (Torx bit tip provided)
• One M8 bolt included

It is also available in the smaller S-5-Q (Mini).

The S-5-Q clamp, with its distinct, smaller "bulb-shaped" design, ensures a snug fit on profiles not fully closed, ideal for secure installations on Double folded 16 & 20 oz copper standing seams.

If this clamp does not match your roof profile, browse our other metal roof clamps below to find one that best matches your roof profile.





S-5! offers two main warranties: a Lifetime Product Defect Warranty, covering defects in materials and workmanship, and a System Performance Warranty for the ColorGard® Snow Retention system, which is unique in the snow guard market and has a term of 30 years or the life of the roof, whichever comes first. The Product Defect Warranty has been extended to a lifetime term based on their long history of minimal claims and their products designed to outlast the roofs they are mounted on. For more detailed information, please visit the S-5! Warranty page.
