SharkBite
SharkBite 1/2 in. Push-to-Connect x 3/8 in. O.D. Compression Chrome-Plated Brass Quarter-Turn Angle Stop Valve
Published price — same for everyone
In stock
SKU UR23036
The price on the page is the price.
Find it, price it, order it — without a phone call. Questions on spec, quantity, or freight? Contact us.
Buying more than one thing? Start your list — however you have itFreight and delivery are calculated at checkout — no surprise charges.
Details

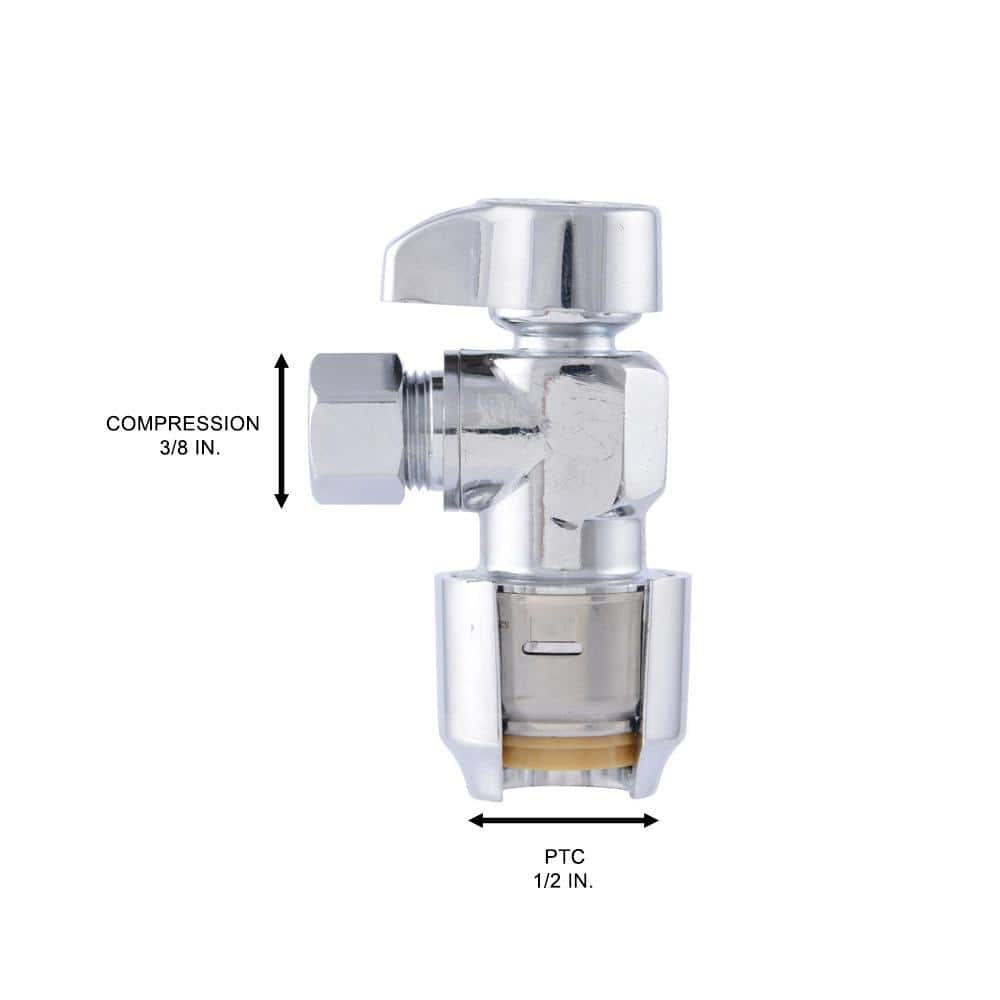

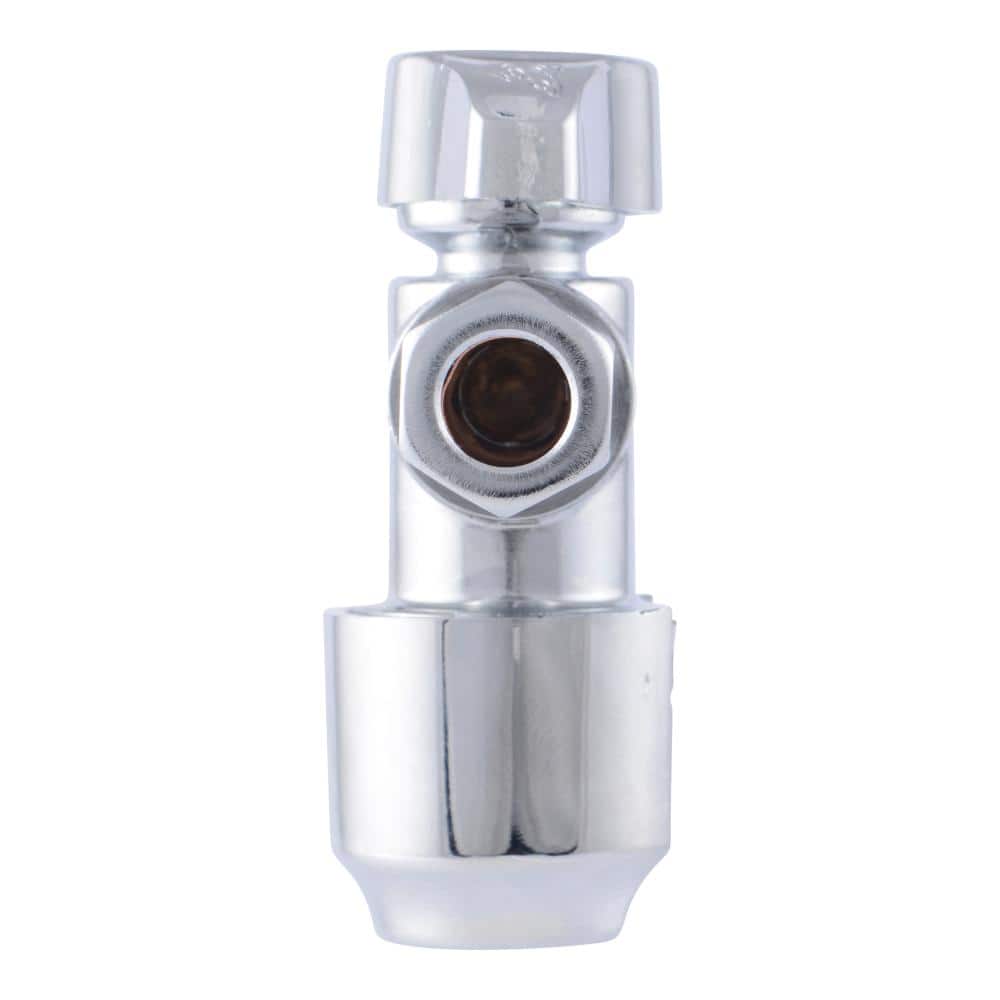

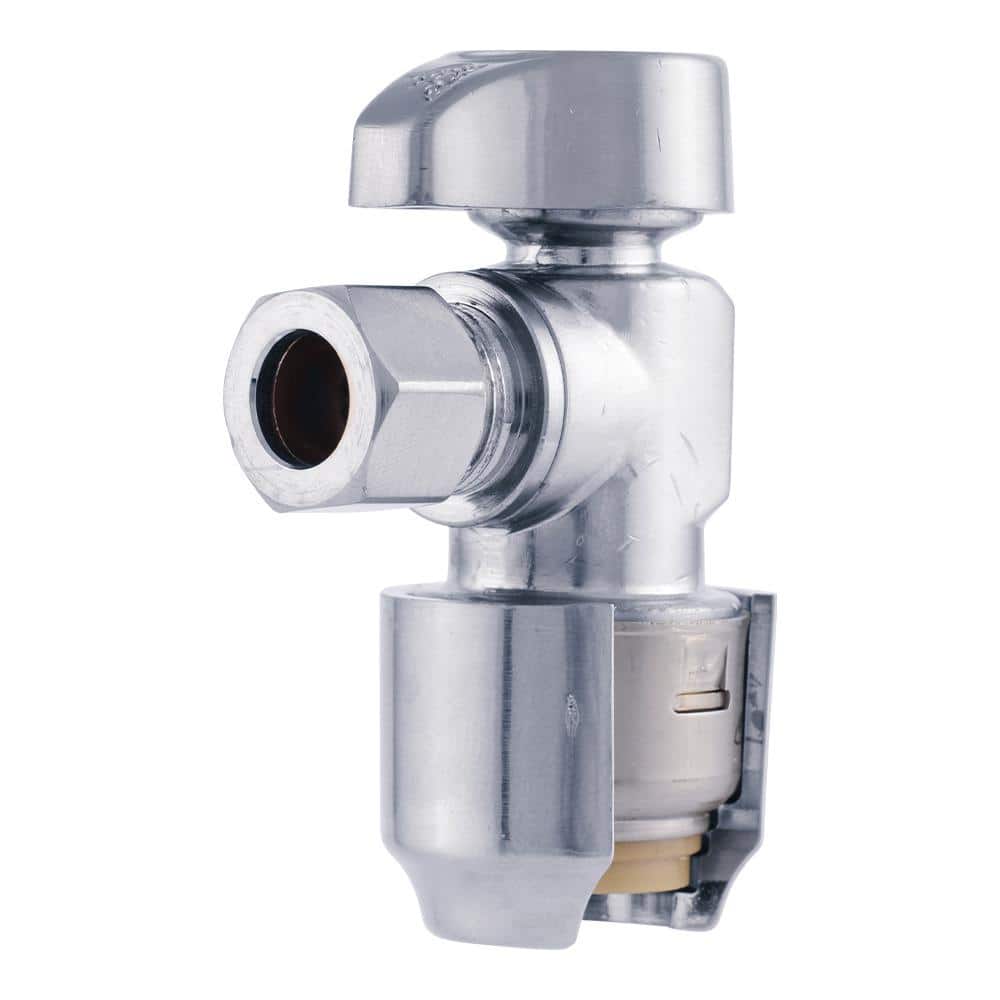

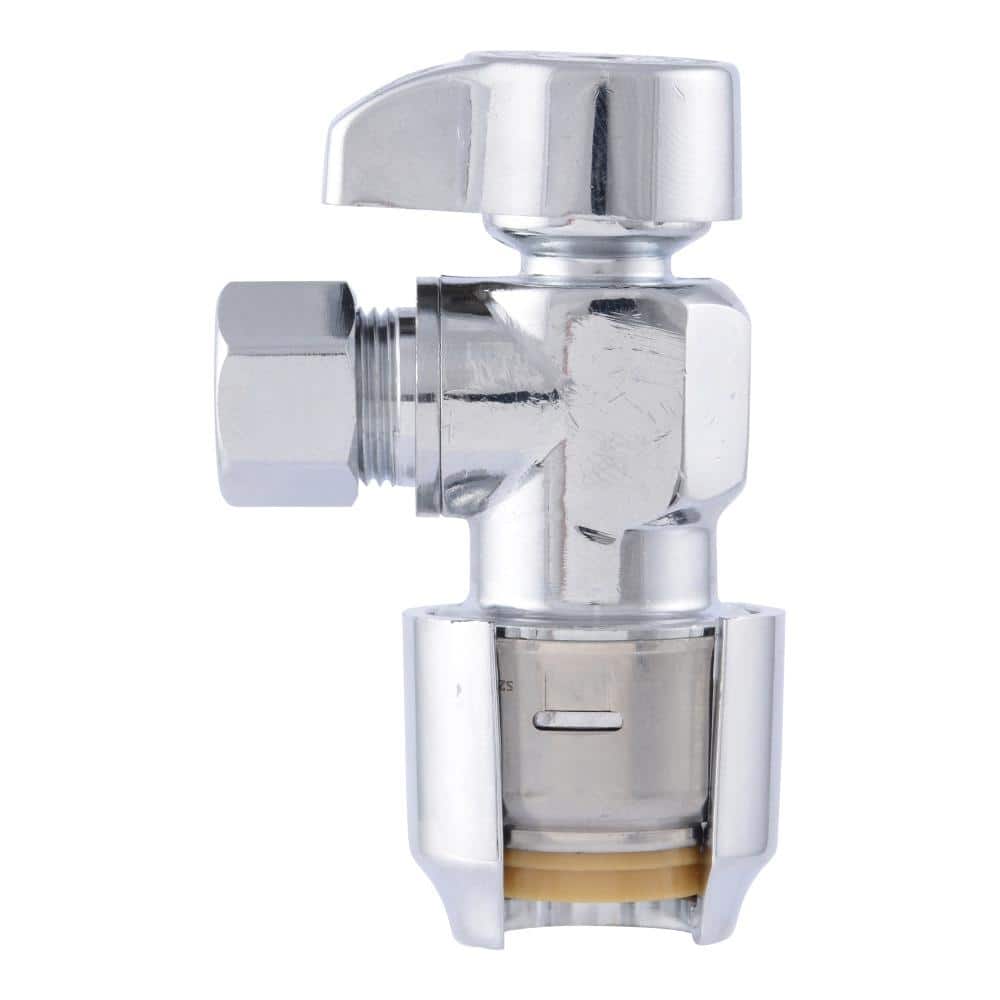

Push-to-Connect Quarter-Turn Angle Stop Valve, 1/2 in. x 3/8 in.
Quarter-turn angle stop valve with push-to-connect inlet for fast, tool-free installation on PEX, copper, CPVC, or PE-RT. Chrome-plated brass body with stainless steel teeth and chlorine-resistant O-ring delivers a durable, watertight seal. Ideal for controlling water to faucets and toilets in tight spaces.
Key Features:
- Fast Installation: Push-to-connect inlet eliminates soldering, clamps, or glue
- Durable Build: Chrome-plated, low-lead DZR brass body with stainless steel retainer and teeth
- Reliable Performance: Rated to 160°F and 125 PSI; rotatable after installation
- Versatile Compatibility: Connects to PEX, copper, CPVC, or PE-RT with 3/8 in. O.D. compression outlet
- Service Friendly: Removable with disconnect tool; can be installed on wet lines
Specifications Table:
| Specification | Details |
|---|---|
| Application | Potable Water |
| Color/Finish | Chrome |
| Color/Finish Family | Brass |
| Compatible Pipe Material | PEX, Copper, CPVC, PE-RT |
| Compatible Product | Faucet, Toilet |
| Connection | PTC x Compression |
| Features | Removable; Rotatable after installation; Works on wet lines |
| Indoor/Outdoor | Indoor |
| Inlet Fitting End Type | Push to Connect |
| Material | Brass (Low-lead DZR), Chrome-plated body |
| Maximum Pressure (PSI) | 125 PSI |
| Maximum Working Temperature (F) | 160 |
| Outlet Fitting End Type | O.D. Compression |
| Pack Size | 1 |
| Product Weight (lb.) | 0.247 lb |
| Stop Valve Type | Angle |
| Valve Configuration | Angle |
| Valve Connection | Push Connect |
| Valve Type | Stop |
| Inlet Diameter (In.) | 1/2 |
| Inlet Size | 1/2 in. |
| Outlet Diameter (In.) | 3/8 |
| Product Depth (in.) | 2.618 in |
| Product Height (in.) | 1.614 in |
| Product Length (in.) | 2.618 in |
| Product Width (in.) | 1.142 in |
| Valve Inlet Diameter (in.) | 1/2 |

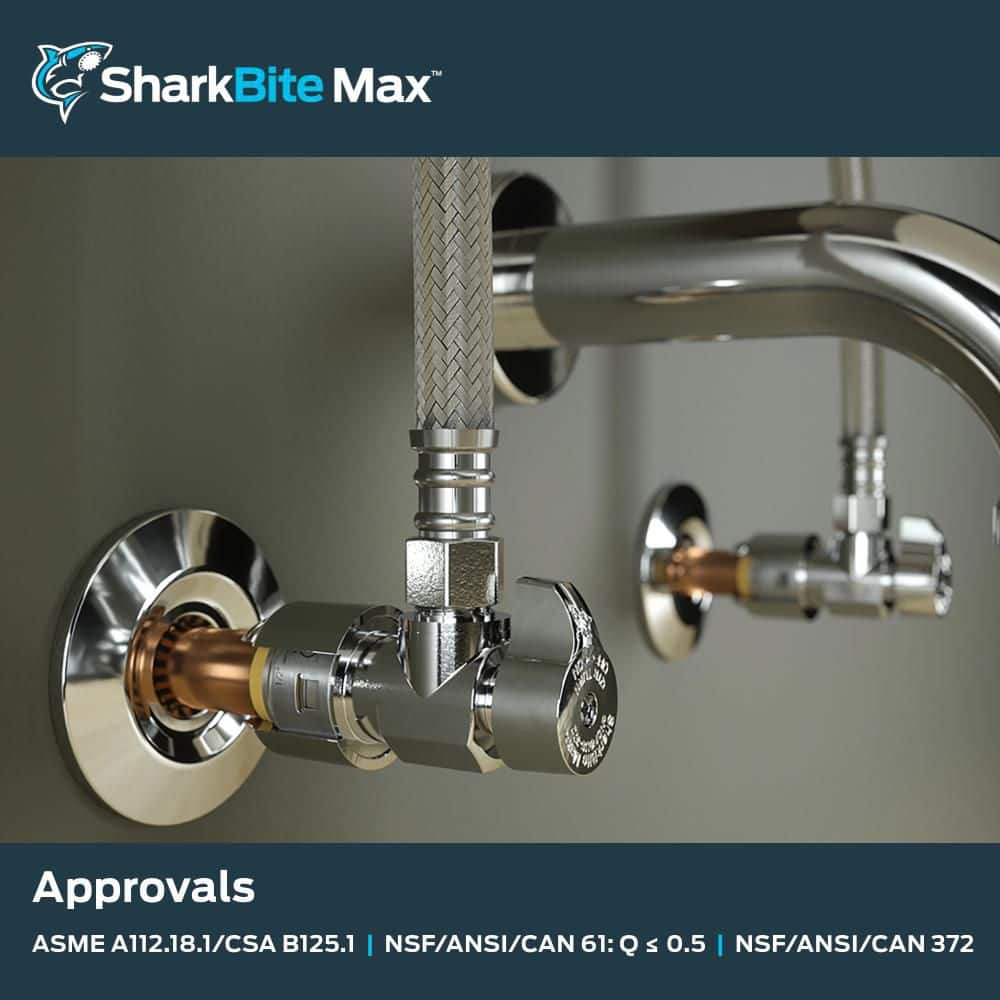

| Approvals/Listings | ASME A112.18.1/CSA B125.1; NSF/ANSI/CAN 61: Q ≤ 0.5; NSF/ANSI/CAN 372 |
| Warranty | 25-year warranty when properly installed on PEX, copper, CPVC and PE-RT |
Frequently Asked Questions (FAQ):
Q: What pipe types does this valve connect to?
A: The 1/2 in. push-to-connect inlet works with PEX, copper, CPVC, and PE-RT pipe; the outlet is 3/8 in. O.D. compression.
Q: Can it be installed on a wet line?
A: Yes, it can be installed on wet or dry lines and pressure tested immediately.
Q: What are the temperature and pressure ratings?
A: Rated up to 160°F and 125 PSI.
Q: Is any special tool required?
A: No special tools are needed for installation; a disconnect tool is used only for removal.
Q: What warranties apply?
A: Listed with a 25-year warranty when properly installed on PEX, copper, CPVC, or PE-RT pipe.
A Sleek, Functional Finish for Utility Spaces
This compact chrome angle stop tucks neatly beneath vanities and beside toilets, lending a polished, minimalist accent to hardworking corners. The quarter-turn handle offers a crisp, modern gesture that feels as refined as it looks. Pair it with braided stainless supply lines to echo its clean metallic sheen and keep the look cohesive. It’s the subtle, high-performance detail that elevates everyday rituals into quiet luxury.
Upgrade your fixture shutoffs with this fast-install, durable SharkBite angle stop valve today.
