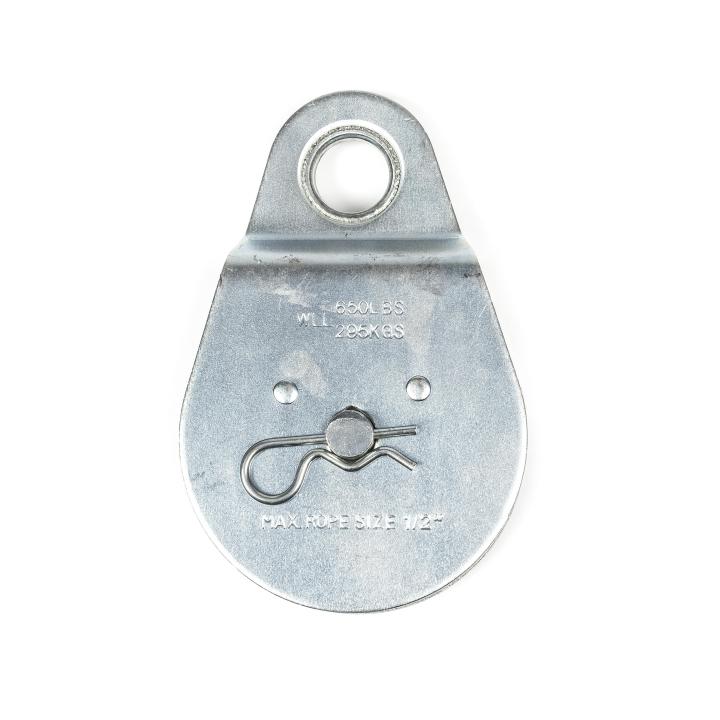

3" Zinc-Plated Fixed-Eye Single-Sheave Pulley

Heavy-duty steel pulley with a fixed eye and single sheave, zinc-plated for corrosion resistance. Designed for smooth operation with a powder-metal bushing and a 3-inch OD sheave for rope up to 1/2 inch.

---

Key Features:

• Corrosion-Resistant Finish: Zinc plating protects against rust for indoor or outdoor use
• Smooth Operation: Powder-metal bushing extends life and reduces friction
• Heavy-Duty Construction: Steel body with die-cast zinc sheave
• Rope Compatibility: Fits rope up to 1/2 inch (max)
• Clear Safety Rating: 650 lb working load limit stamped on body

---

Specifications Table:

Specification	Details
Sheave Size (OD)	3 in
Finish	Zinc Plated
Body Material	Steel
Sheave Material	Die-cast zinc
Bushing	Powder metal
Rope Size (Max)	1/2 in
Working Load Limit	650 lb
Weight	1.03 lb
Packaging	Bulk
Style	Fixed eye, single sheave
Catalog Number	T7550404
UPC	020418300042

---

Frequently Asked Questions (FAQ):

Q: What rope sizes are compatible?
A: This pulley accommodates rope up to 1/2 inch in diameter.

---

Q: What is the working load limit?
A: The working load limit is 650 lb, marked on the pulley body.

---

Q: Can it be used outdoors?
A: Yes, the zinc-plated finish helps resist rust and corrosion for indoor or outdoor use.

---

Q: How is it mounted?
A: Fixed-eye design allows attachment to hooks or fasteners; wall/ceiling versions can use nails or #4 x 3/4" screws as noted by the manufacturer.

---

Q: Is it rated for overhead lifting?
A: No. Do not use for overhead lifting or hoisting; never exceed the working load limit.

---

Industrial Polish Meets Purpose

This zinc-kissed pulley brings a sleek, utilitarian elegance to workshops and garage spaces. The fixed eye and clean, rounded silhouette feel refined while delivering rugged performance. Style it with natural fiber rope and matte black hardware to create a crisp, functional vignette. A small yet mighty detail that elevates everyday mechanics into luxe practicality.

---

Add reliable, rust-resistant lifting power to your project with Campbell’s 3-inch fixed-eye pulley today.
