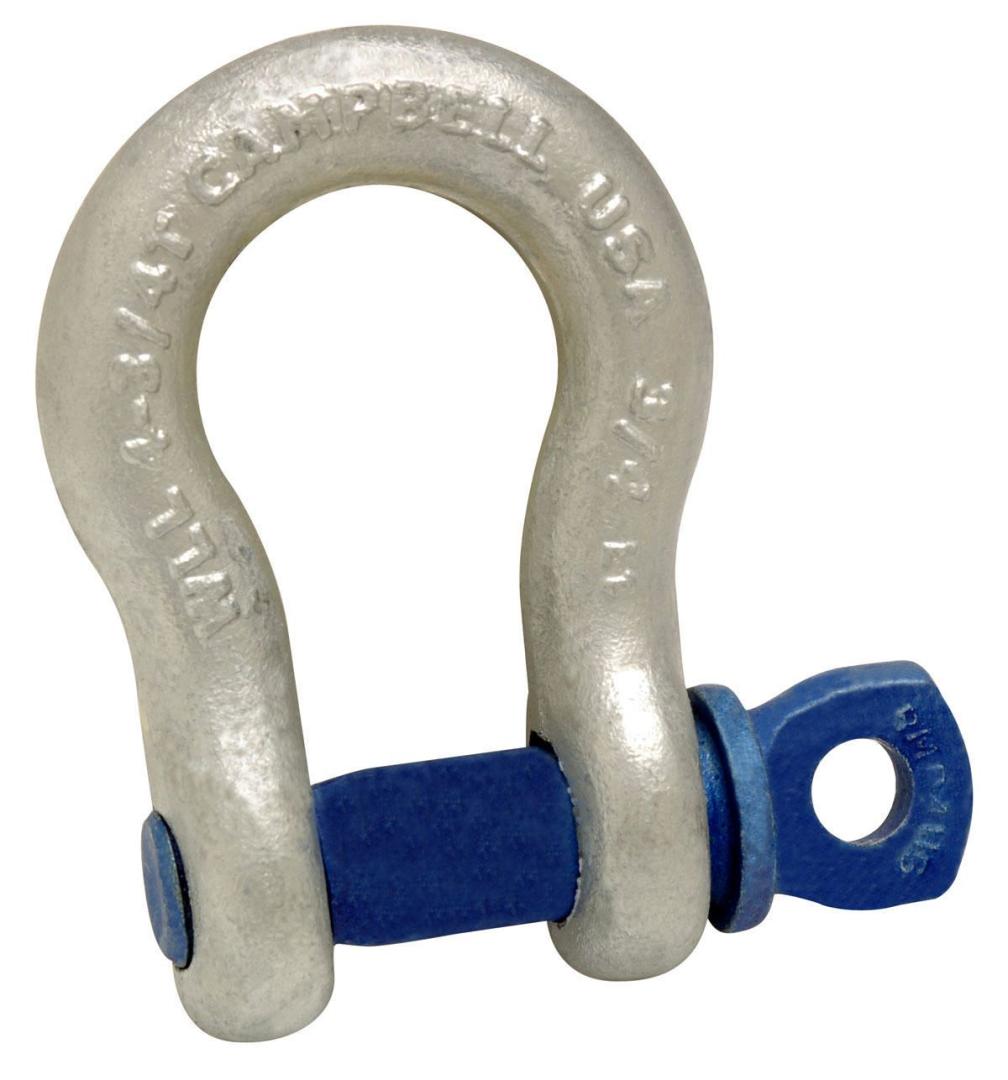

Galvanized Forged Carbon Steel Anchor Shackle, 7/8"

Heavy-duty anchor shackle forged from carbon steel and hot-dip galvanized for corrosion resistance. Screw pin design for quick, secure connections with a 6-1/2 ton working load limit, ideal for rigging and lifting applications.

---

Key Features:

• Forged Carbon Steel: Drop-forged body delivers high strength and durability for demanding rigging tasks
• Galvanized Finish: Meets ASTM A-153 for long-lasting corrosion resistance in outdoor and marine environments
• Screw Pin Connection: Easy to install and remove while maintaining secure load attachment
• Compliance & Testing: Meets ASME B30.26 and Federal RR-C-271 requirements; statistically tested for strength and fatigue
• Clear Identification: WLL, size, manufacturer, date code, and USA permanently marked on each shackle

---

Specifications Table:

Specification	Details
Shackle type	Anchor shackle, screw pin
Material	Forged carbon steel
Finish	Galvanized; meets ASTM A-153
Brand	Campbell
SKU / Catalog number	5411435
UPC	020418076336
Nominal size	7/8 in
Working load limit	6-1/2 tons
Weight each	3.20 lb

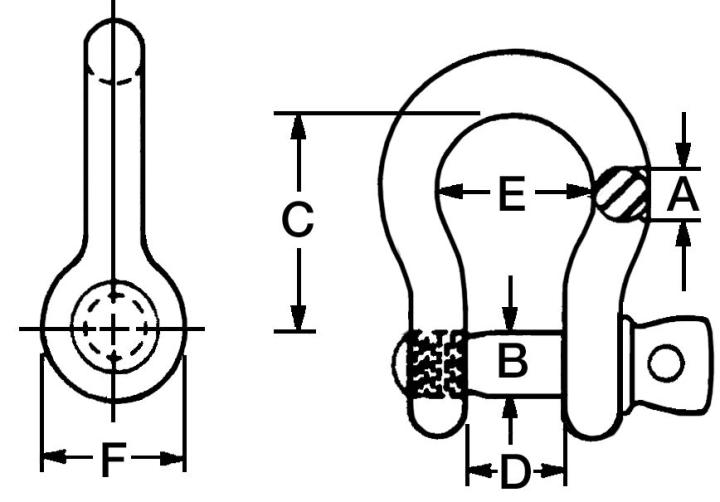

Dimensions - E	2-1/16 in
Dimensions - C	3-1/8 in
Dimensions - F	2 in
Dimensions - D	1-7/16 in
Dimensions - B	1 in
Width tolerance	±1/8 in
Length tolerance	±1/4 in
Weight per 100 pieces	320 lb
Pins and bolts	Heat-treated alloy steel
Standards compliance	ASME B30.26 Rigging Hardware; Federal Specification RR-C-271 Type IVA, Grade A, Class 2
Identification	WLL, size, manufacturer name, date code, and USA permanently marked
Testing	Statistically tested for impact resistance, tensile strength, hardness, ductility, and fatigue
Design factor	6:1 for 1/4" to 2"; 5:1 for 2-1/2"
Packaging	Boxed

---

Frequently Asked Questions (FAQ):

Q: What is the working load limit (WLL)?
A: 6-1/2 tons; do not exceed the WLL.

---

Q: What pin type does this shackle use?
A: A screw pin for quick attachment and removal.

---

Q: Is it suitable for outdoor use?
A: Yes, it is hot-dip galvanized to meet ASTM A-153 for corrosion resistance.

---

Q: What size is the shackle?
A: Nominal size 7/8 inch with key dimensions E=2-1/16 in, C=3-1/8 in, F=2 in, D=1-7/16 in, B=1 in.

---

Q: Does it meet industry standards?
A: Yes, it meets ASME B30.26 rigging hardware requirements and Federal Specification RR-C-271.

---

Industrial Strength, Refined Utility

This galvanized anchor shackle brings a crisp, engineered aesthetic to functional spaces, celebrating honest materials and robust form. The sculpted bow and bold blue screw pin create a striking contrast—both purposeful and visually compelling. Style it with exposed hardware and natural timber for a modern, utilitarian vibe. Its presence signals craftsmanship and reliability—a quiet luxury in the language of hard-working design.

---

Equip your rigging setup with this forged, galvanized shackle for reliable, standards-compliant strength—add it to your cart today.
