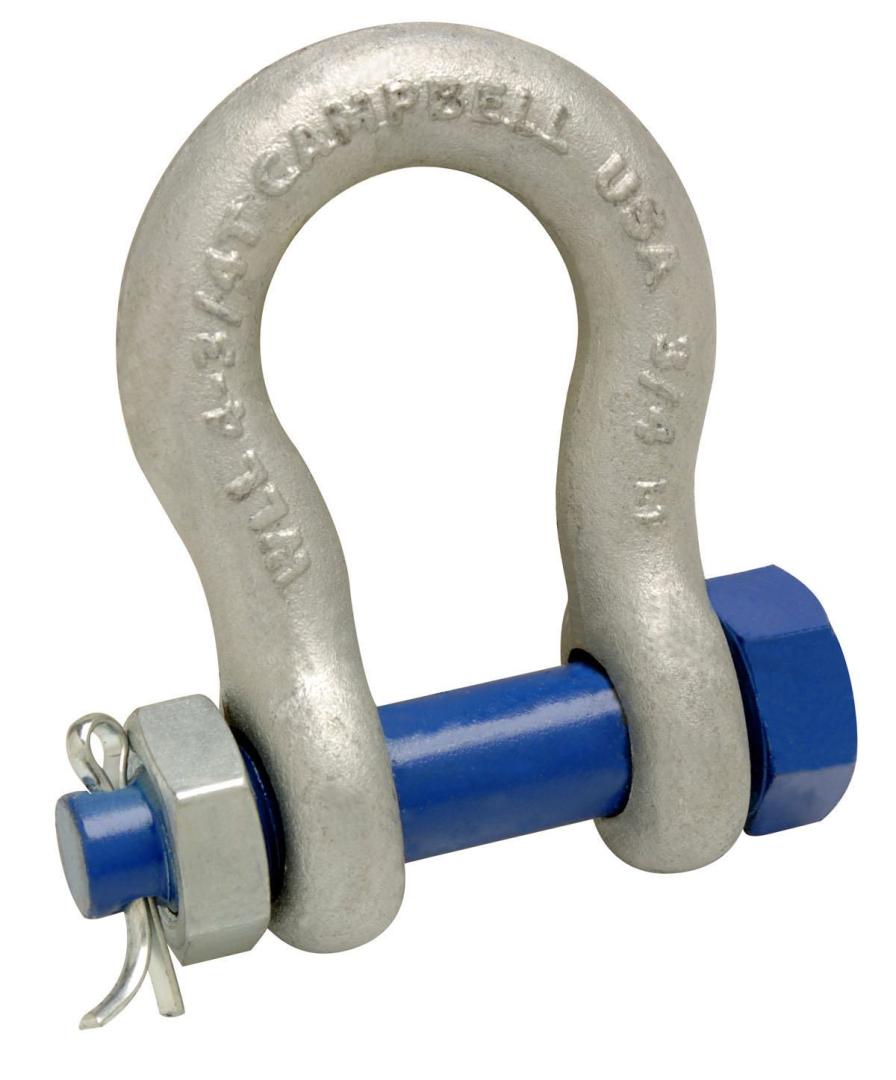

Galvanized Forged Carbon Steel Anchor Shackle, 8-1/2 Ton

Heavy-duty anchor shackle forged from carbon steel and hot-dip galvanized for corrosion resistance. Bolt-type pin with nut and cotter provides secure, removable connections for lifting, rigging, and towing applications.

---

Key Features:

• High Strength Rating: 8-1/2 ton working load limit for demanding lifts
• Durable Construction: Drop-forged carbon steel body with heat-treated alloy pin and bolt
• Corrosion Resistant: Galvanized finish meets ASTM A-153
• Standards Compliant: Meets ASME B30.26 and Federal Spec RR-C-271 requirements
• Secure Bolt-Type Design: Nut and cotter keep the pin in place under vibration

---

Specifications Table:

Specification	Details
Shackle type	Anchor shackle, bolt type
Material	Drop-forged carbon steel body; alloy steel pins and bolts (heat-treated)
Finish	Galvanized to ASTM A-153
Working load limit	8-1/2 tons

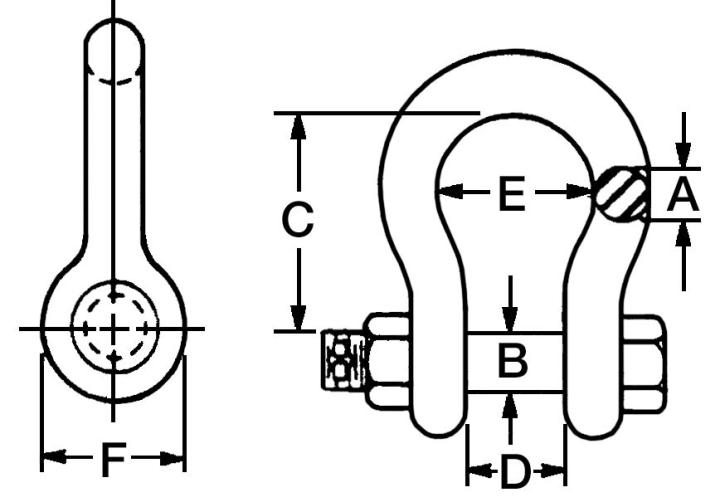

Nominal size	1 in
B dimension	1-1/8 in
C dimension	3-3/4 in
D dimension	1-11/16 in
E dimension	2-1/2 in
F dimension	2-3/8 in
Width tolerance	+/- 1/8 in
Length tolerance	+/- 1/4 in
Weight each	5.00 lb
Weight per 100 pieces	500 lb
Design factor	6:1 (1/4 in to 2 in); 5:1 (2-1/2 in)
Standards	ASME B30.26; RR-C-271 Type IVA, Grade A, Class 3
Markings	WLL, size, manufacturer name, date code, USA permanently marked
Packaging	Boxed

---

Frequently Asked Questions (FAQ):

Q: What size is this shackle?
A: Nominal size 1 in. with key dimensions: B 1-1/8 in, C 3-3/4 in, D 1-11/16 in, E 2-1/2 in, F 2-3/8 in.

---

Q: What is the working load limit?
A: 8-1/2 tons (do not exceed the WLL).

---

Q: Is it suitable for outdoor use?
A: Yes. The hot-dip galvanized finish provides excellent corrosion resistance for outdoor and marine environments.

---

Q: What type of pin does it use?
A: Bolt-type with nut and cotter for added security.

---

Q: Does it meet industry standards?
A: Yes, it meets ASME B30.26 and RR-C-271 design requirements.

---

Industrial Grit, Polished Performance

This forged anchor shackle brings a rugged, authentic accent to utilitarian spaces while delivering serious strength. The hot-dip galvanized finish has a soft luster that pairs beautifully with navy enamel hardware for a refined, maritime vibe. Style it on exposed storage racks or as a functional detail in a garage workshop for cohesive, purposeful design. It’s a hardworking essential that elevates utility to understated luxury.

---

Choose this Campbell 8-1/2 ton galvanized anchor shackle for secure, standards-compliant rigging that lasts.
