Toro Anti-Siphon Valve, 1 in., 150 PSI (Model 53764)
Toro Anti-Siphon Valve, 1 in., 150 PSI (Model 53764)
Couldn't load pickup availability

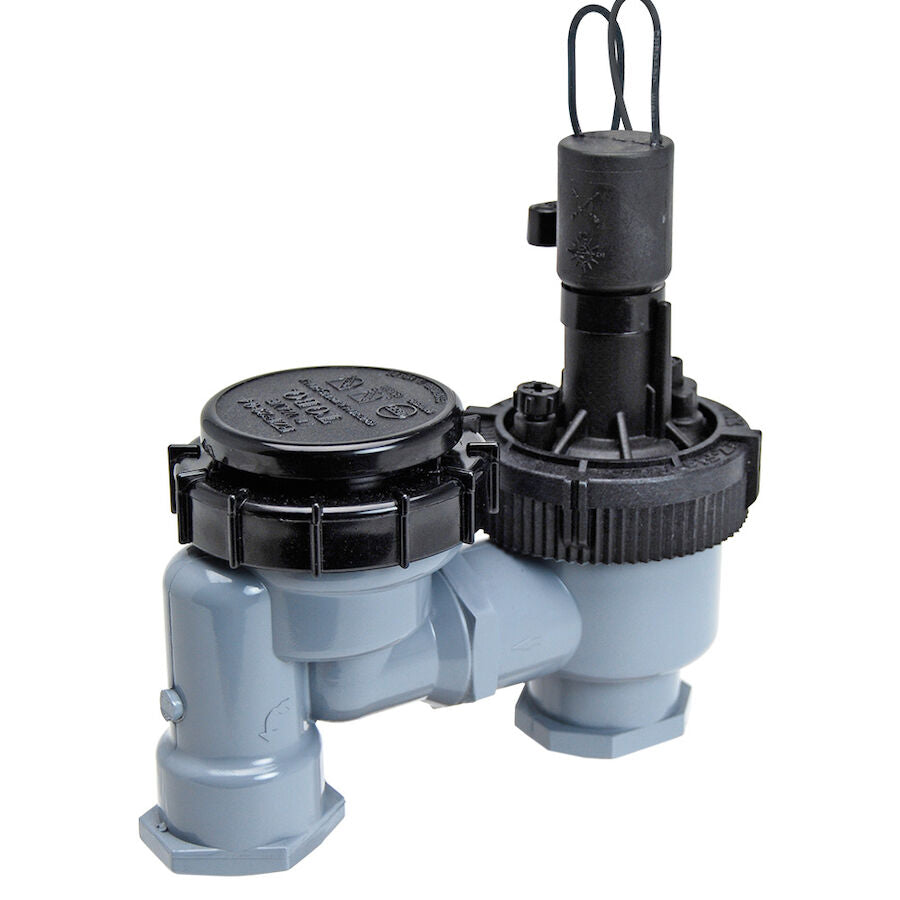

1" Anti-Siphon Irrigation Valve, 150 PSI
Toro’s 1-inch jar-top anti-siphon valve combines atmospheric backflow prevention with a durable, easy-service design. It features flow control to fine-tune zone pressure, helping reduce misting and save water.
Key Features:
- Backflow Protection: Integrated anti-siphon design for safe irrigation water supply
- Easy Service Jar Top: Threaded bonnet allows fast access to diaphragm and internals
- Precision Flow Control: Adjusts zone pressure to cut misting and improve efficiency
- Reliable Solenoid: 24 VAC encapsulated solenoid with manual internal/external bleed
- Wide Operating Range: 10–150 PSI with 0.25–30 GPM flow for residential systems
Specifications Table:
| Specification | Details |
|---|---|
| Valve Size | 1" |
| Inlet/Outlet | 1" (2.5 cm) Female NPT |
| Operating Pressure | 10–150 PSI (0.70–10.3 BAR) |
| Flow Range | 0.25–30.0 GPM (1–114 LPM) |
| Solenoid | 24 VAC Solenoid |
| Electrical Inrush | 0.40 amps, 11.50 VA |
| Electrical Holding | 0.20 amps, 5.75 VA |
| Flow Control | Yes |
| Manual Bleed | Internal/External |
| Diaphragm | Santoprene |
| Model Name | 1" (2.5 cm) Jar Top Anti-siphon Valve |
Frequently Asked Questions (FAQ):
Q: Can this valve be installed underground?
A: No. Anti-siphon valves must be installed 6–12 inches above the highest sprinkler for proper backflow prevention.
Q: What pipe connections does it use?
A: It has 1-inch female NPT inlet and outlet.
Q: Is it compatible with standard irrigation controllers?
A: Yes. It uses a 24 VAC solenoid compatible with most residential controllers.
Q: Does it include flow control?
A: Yes. Built-in flow control lets you fine-tune zone pressure to reduce misting.
Q: How do I manually operate the valve?
A: Use the manual internal/external bleed to open the valve without the controller.
Sleek Utility Meets Outdoor Elegance
This streamlined anti-siphon valve brings refined order to the landscape, marrying crisp geometry with purposeful performance. The jar-top cap is a standout—bold, tactile, and designed for effortless maintenance. Style it on a clean riser, elevated neatly above your highest spray for a polished, professional finish. It’s the quiet luxury your irrigation deserves—smart, efficient, and impeccably crafted.
Upgrade your irrigation with Toro’s 1" anti-siphon valve to ensure safe backflow protection and precise, water-saving control.
