Schneider Electric
Homeline 150 Amp 30-Space 60-Circuit Indoor Main Breaker Plug-On Neutral Load Center with Cover, Surge SPD - Value Pack
Published price — same for everyone
In stock
SKU H3060M150PVPSG
The price on the page is the price.
Find it, price it, order it — without a phone call. Questions on spec, quantity, or freight? Contact us.
Buying more than one thing? Start your list — however you have itFreight and delivery are calculated at checkout — no surprise charges.
Details
Homeline 150A 30-Space Indoor Main Breaker Load Center Value Pack
Plug-On Neutral Homeline load center designed for fast, clean installs and dependable residential power distribution. Includes panel cover, surge protective device, and a selection of Homeline breakers for a ready-to-wire setup.
Key Features:
- Plug-On Neutral Design: Reduces wiring and speeds installation with a clean gutter
- Complete Value Pack: Includes cover, Homeline breakers, and surge protective device
- Capacity & Compatibility: 150A main, 30 spaces/60 circuits; accepts full-size, tandem, or quad Homeline breakers
- Indoor NEMA 1 Enclosure: Surface mount steel cabinet for 120/240V single-phase service
- Durable Construction: Rugged thermoplastic interior and plated aluminum bus for reliable performance
Please check the Product Data Sheet Here
Specifications Table:
| Specification | Details |
|---|---|
| Series | Homeline |
| Breaker Box Type | Main Breaker Panel |
| Indoor/Outdoor | Indoor |
| Mounting Type | Surface |
| NEMA Rating | NEMA 1 |
| Maximum Amperage | 150 A |
| Voltage | 120/240 V, single phase |
| Spaces | 30 |
| Circuits | 60 |
| Connection Type | Plug-On Neutral |

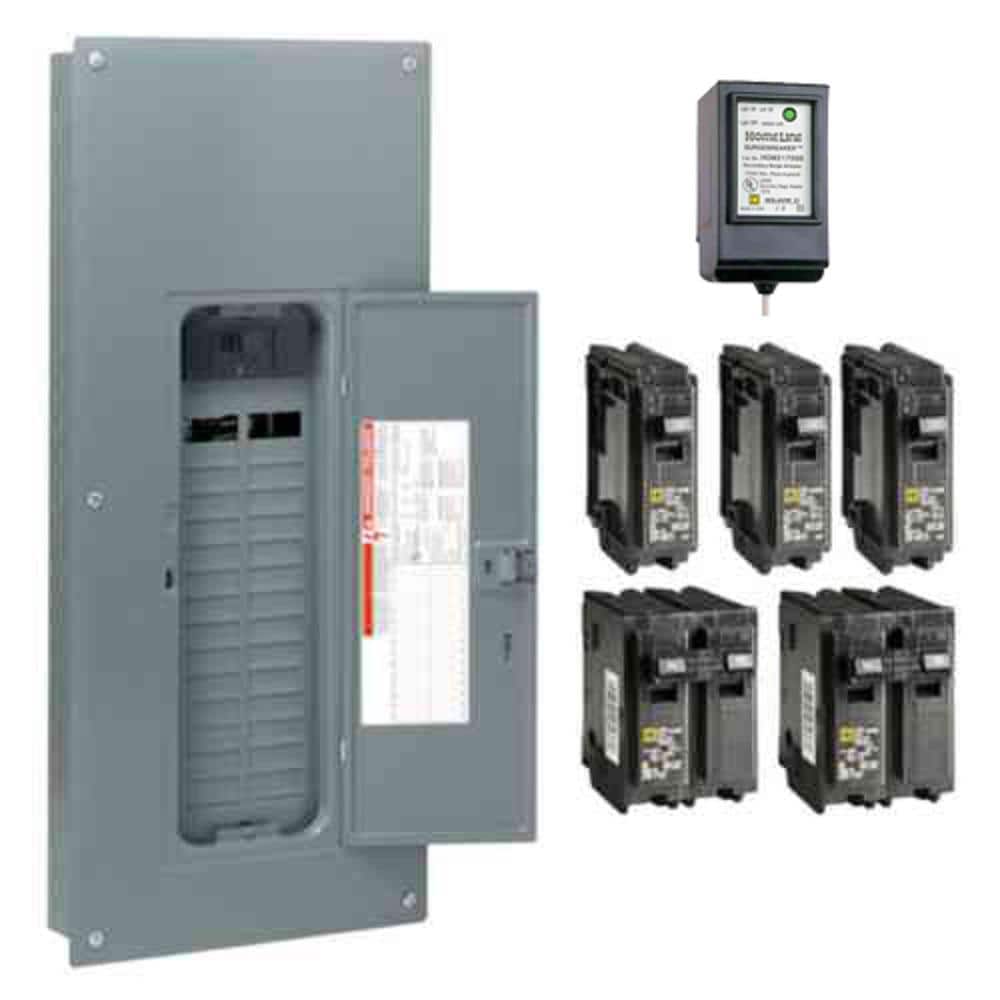

| Included Components | Panel cover, (3) HOM120 20A SP breakers, (2) HOM230 30A DP breakers, surge protective device |
| Number of Pieces | 7 |

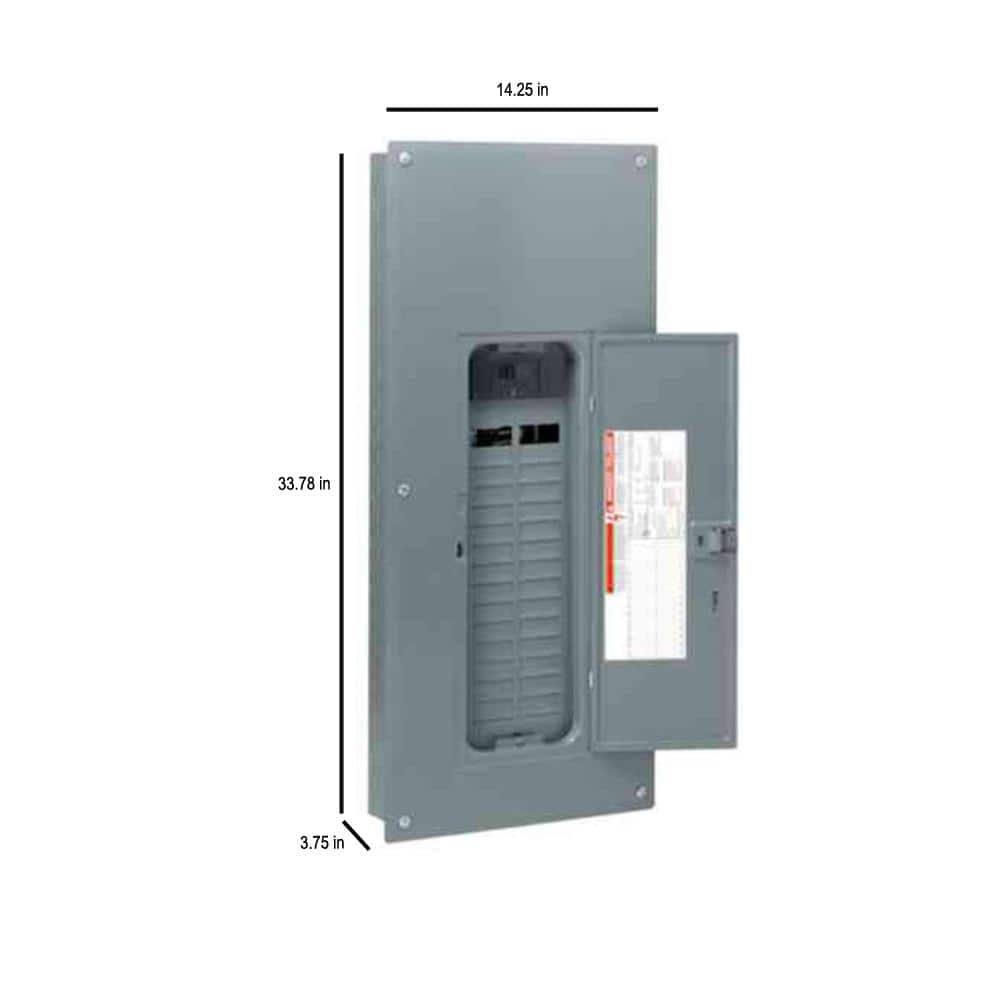

| Product Dimensions (H x W x D) | 33.78 in x 14.25 in x 3.75 in |
| Bus Material | Plated aluminum |
| Short Circuit Current Rating | 22,000 AIR |
| Certifications | UL Listed |
| Country of Origin | USA |
| Special Features | Fully distributed neutral bar; accepts full-size, tandem, or quad breakers; LED indicator on SPD; overhead/underground feed by rotation; automatic flush adjusting cover; multiple ground bar mounting locations |
Frequently Asked Questions (FAQ):
Q: What breakers are included?
A: (3) HOM120 20A single-pole and (2) HOM230 30A double-pole Homeline breakers, plus panel cover and SPD.
Q: Is this for indoor use?
A: Yes, it is an indoor, NEMA 1 surface-mount enclosure.
Q: What service rating and circuits does it support?
A: 150A main breaker with 30 spaces and up to 60 circuits at 120/240V single phase.
Q: Can it accept tandem or quad breakers?
A: Yes, each pole space accepts full-size, tandem, or quad Homeline breakers.
Q: Is a surge protector included?
A: Yes, a Homeline plug-on surge protective device is included in the value pack.
Streamlined Power, Clean Aesthetics
This Homeline panel tucks power neatly behind a refined steel door, bringing order and intention to your utility spaces. I love the slim, elongated silhouette and the crisp, architectural face—quiet, functional beauty. Style it within a painted service alcove with labeled circuits for a thoughtful, gallery-like utility wall. Consider it a discreet cornerstone of modern, luxurious living where performance meets polish.
Power your project with a ready-to-install Homeline value pack—add to cart and simplify your electrical upgrade today.
