Schneider Electric
QO 100 Amp 2-Pole Outdoor Circuit Breaker Enclosure with QO2100 Breaker Included
Published price — same for everyone
In stock
SKU QO2100NRBCP
The price on the page is the price.
Find it, price it, order it — without a phone call. Questions on spec, quantity, or freight? Contact us.
Buying more than one thing? Start your list — however you have itFreight and delivery are calculated at checkout — no surprise charges.
Details

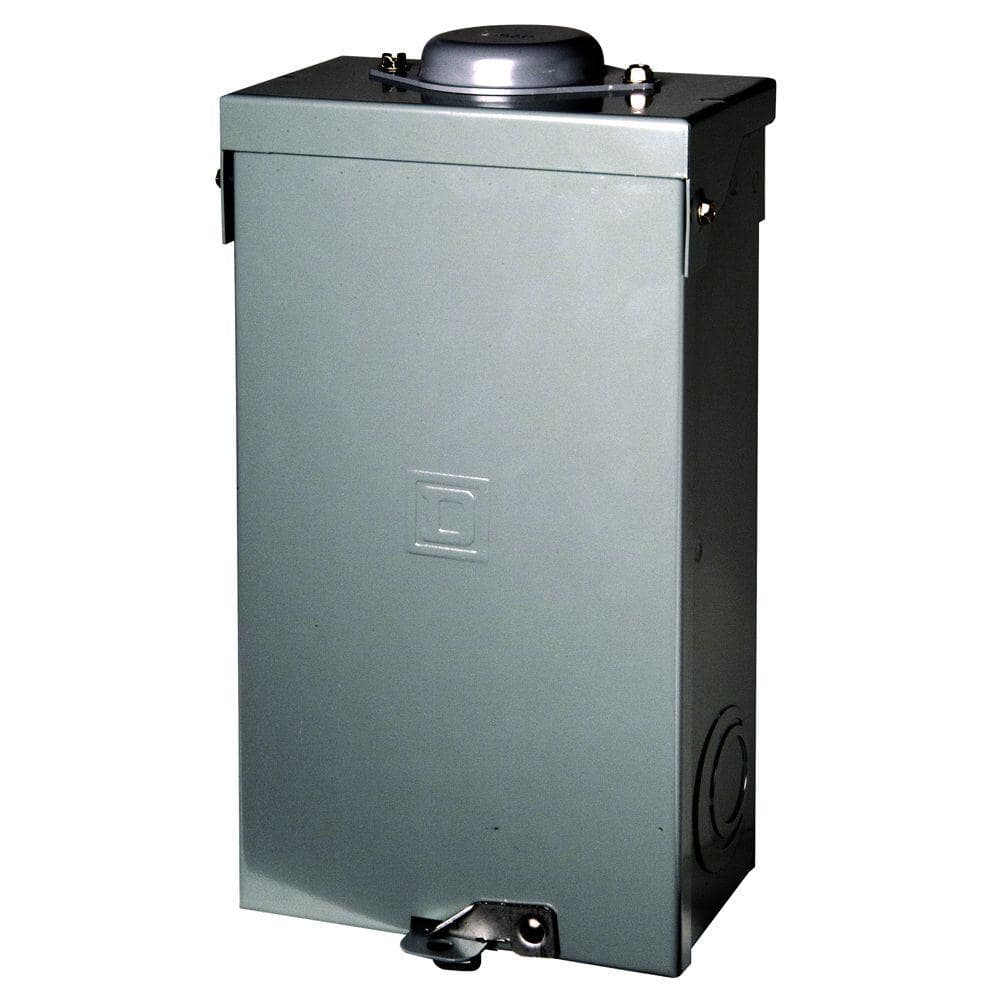

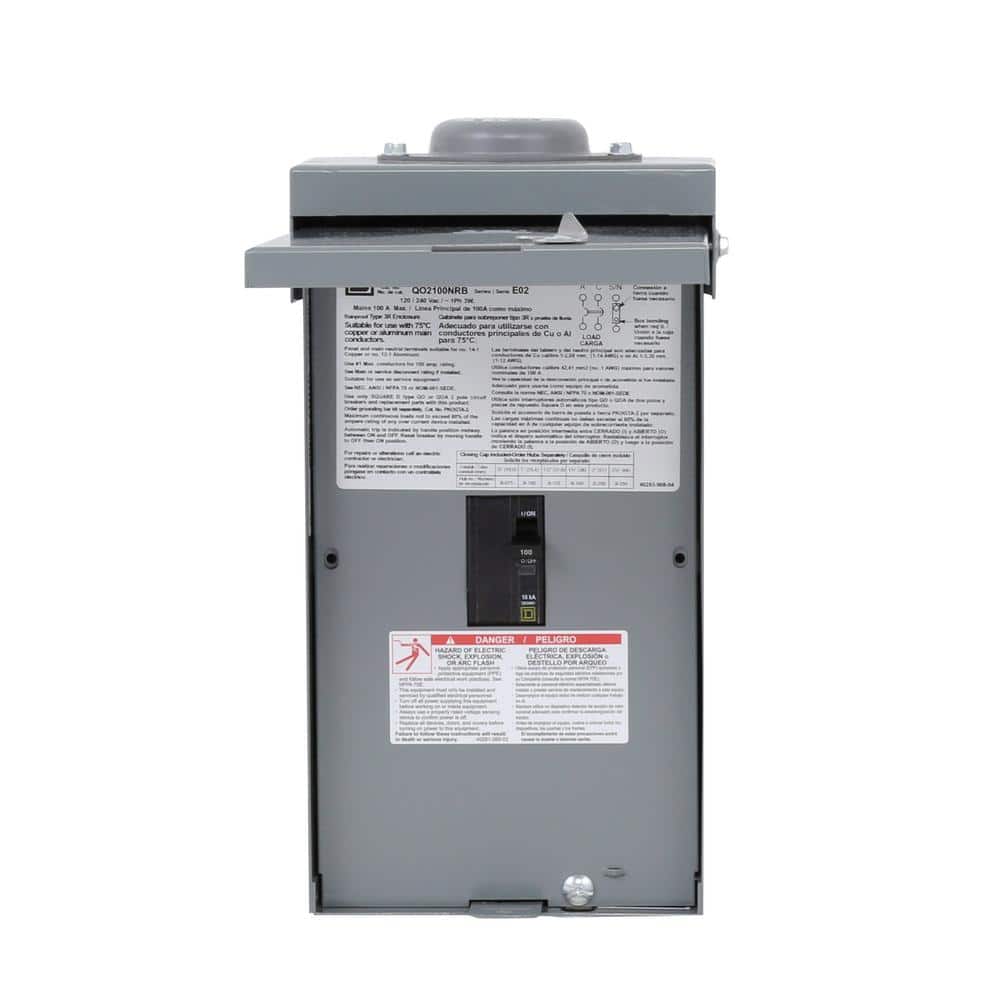

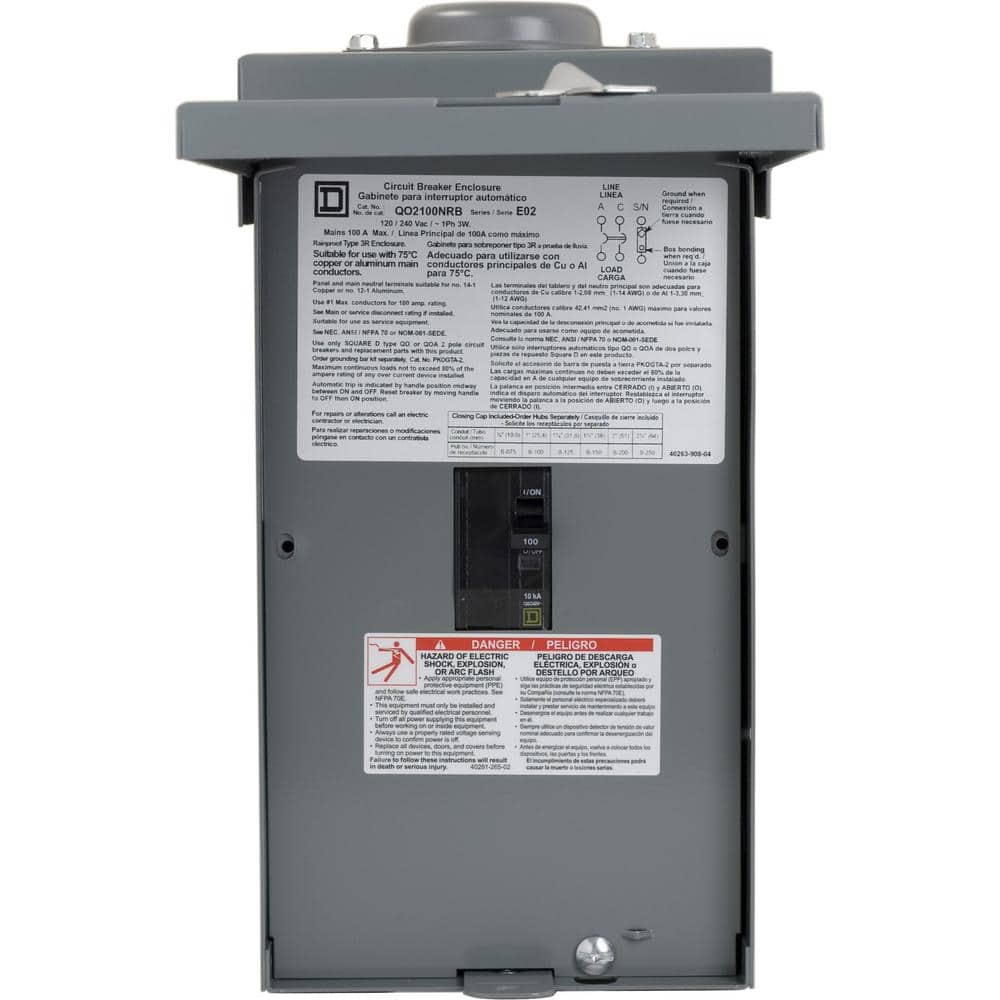

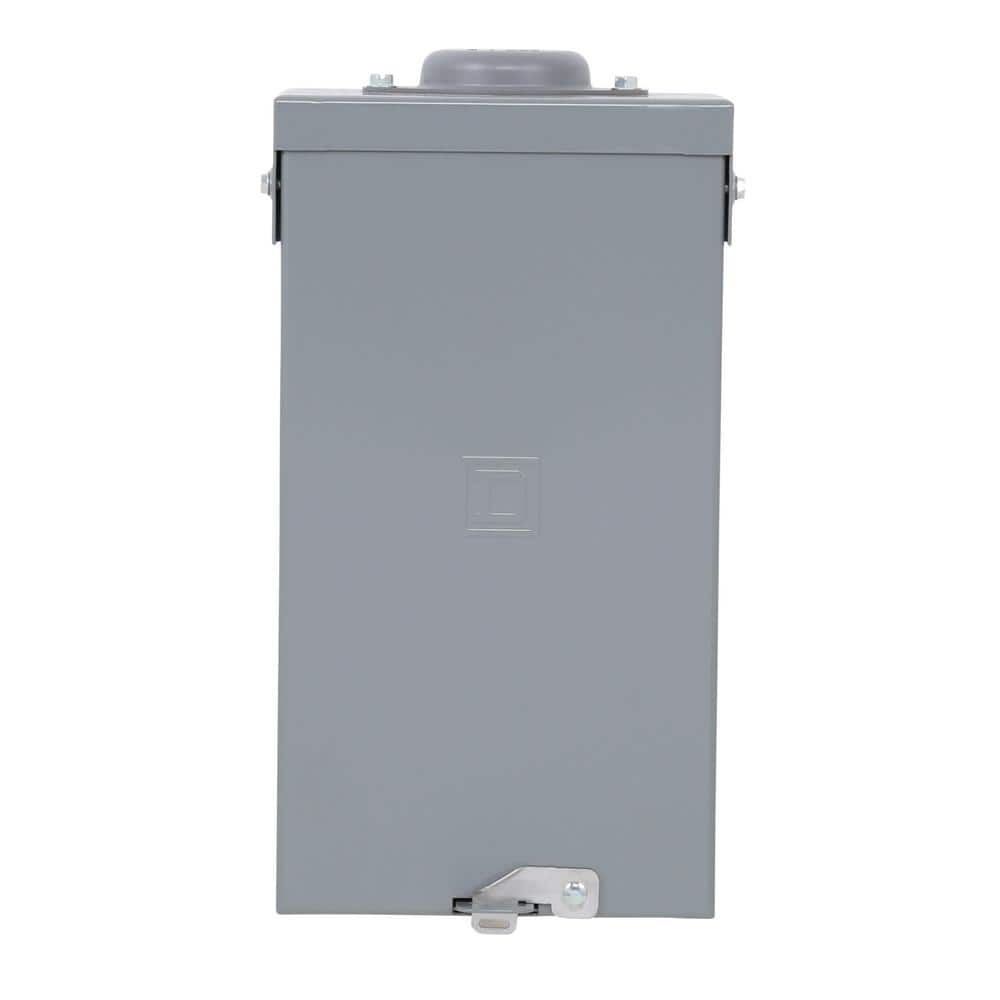

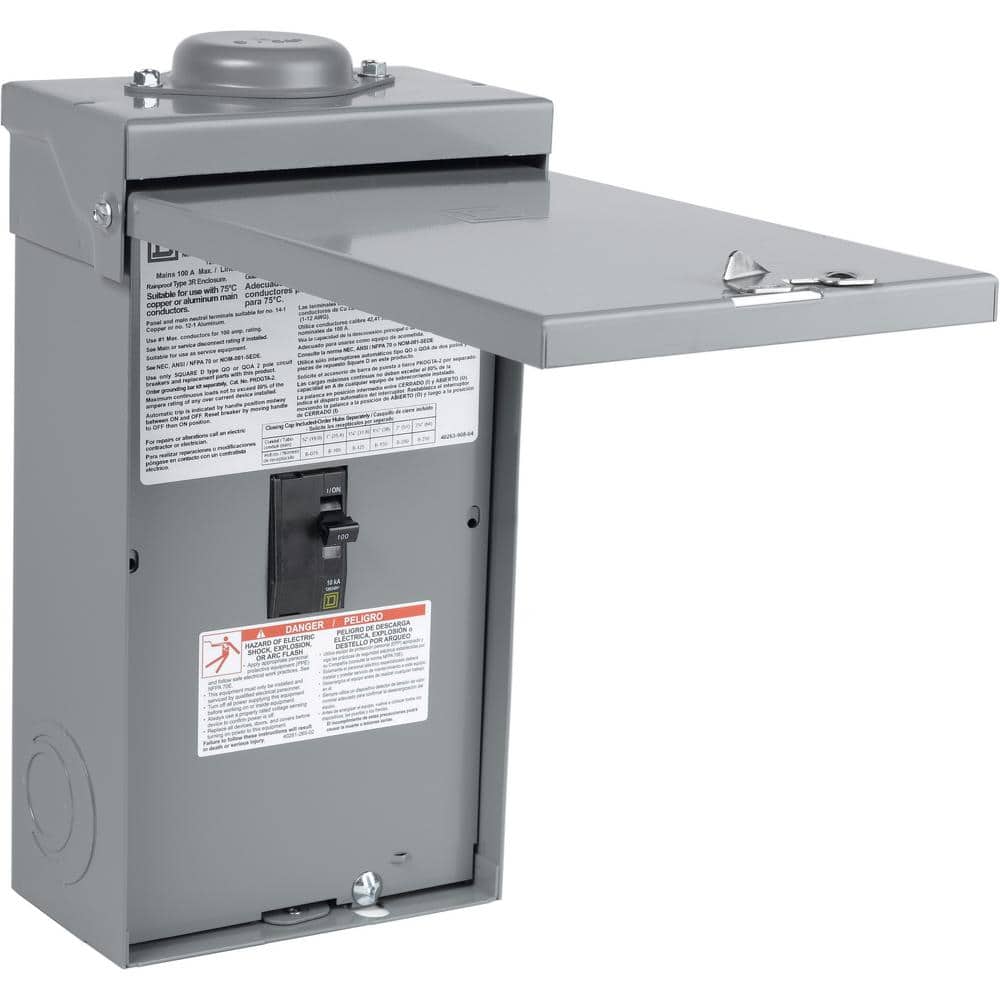

QO 100A 2-Pole Outdoor Breaker Enclosure Kit
Outdoor-rated Square D QO enclosure with a factory-installed QO2100 two-pole 100A breaker. NEMA 3R rainproof housing supports 120/240V single-phase applications and surface mounting for quick exterior disconnects.
Key Features:
- Outdoor-Rated Protection: NEMA 3R rainproof enclosure for reliable exterior use

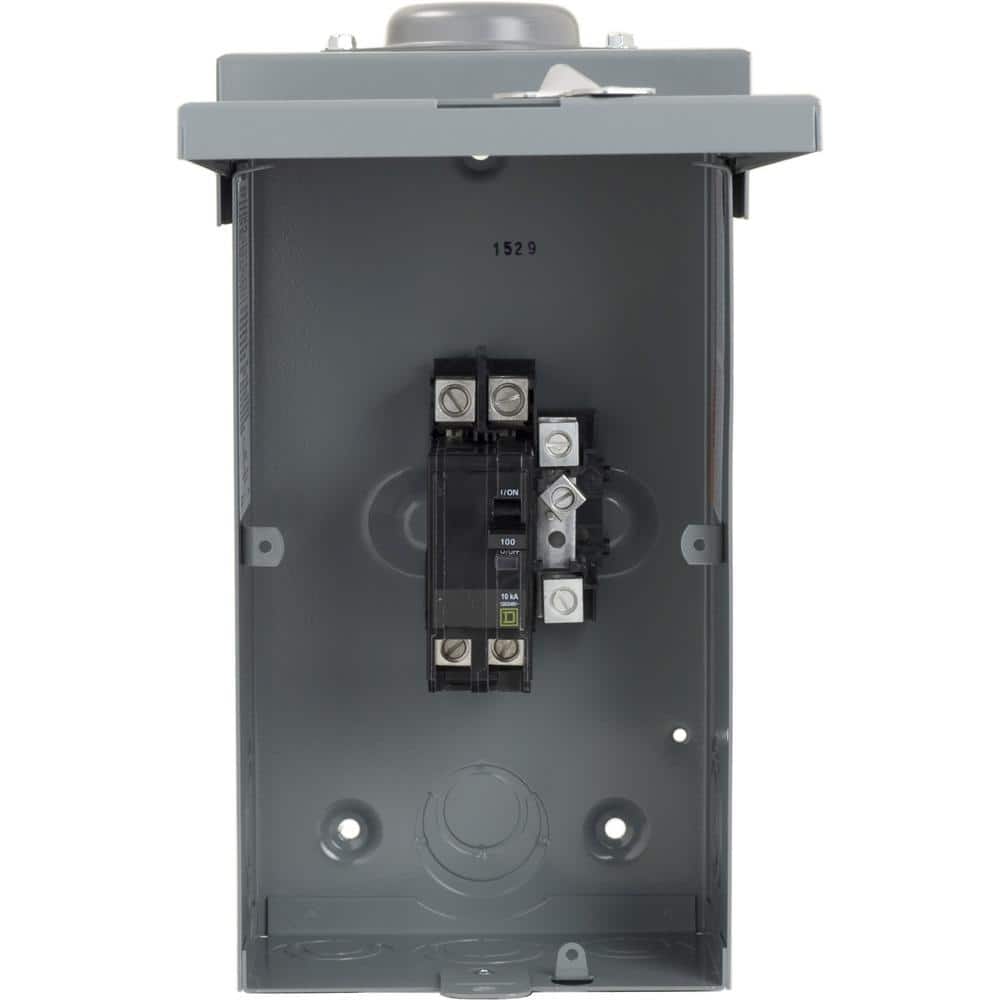

- Complete Kit: Includes Square D QO2100 100A 2-pole breaker (10 kA interrupt rating)
- Single-Phase 120/240V: Ideal for exterior disconnect or non-service entrance device applications

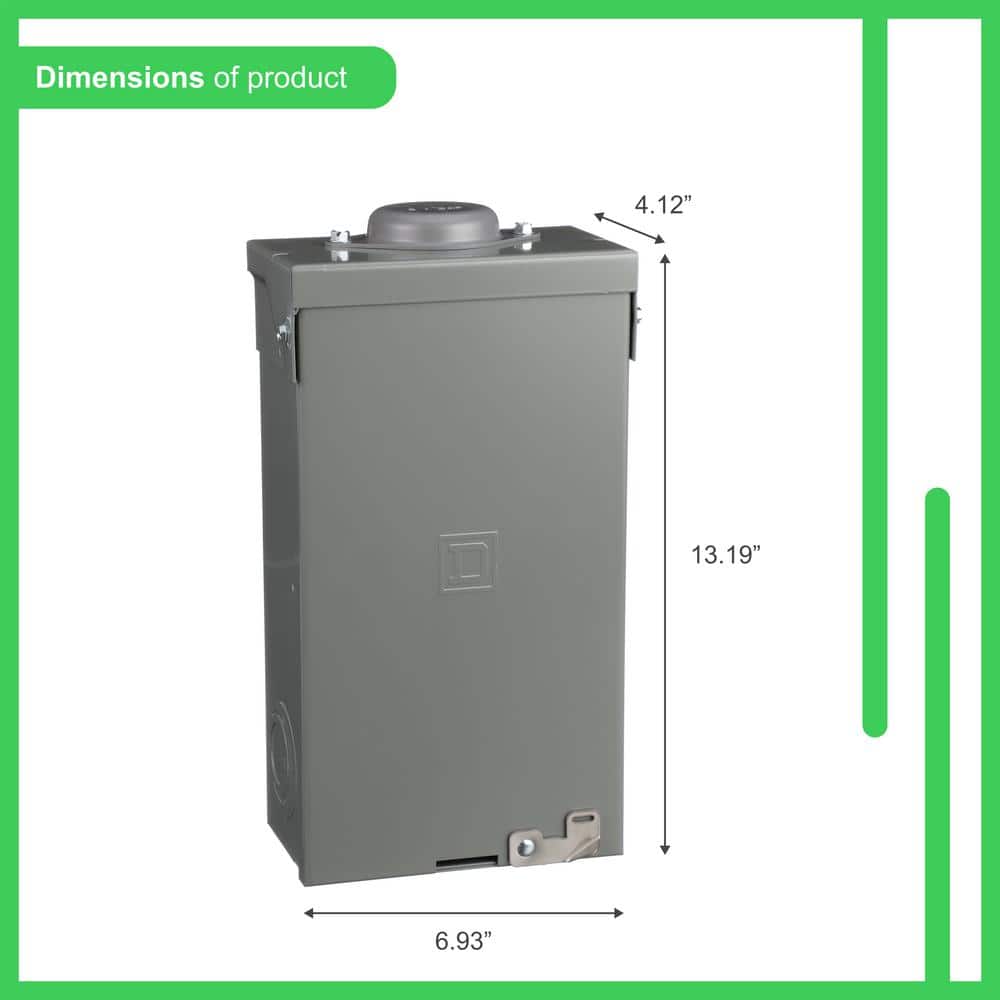

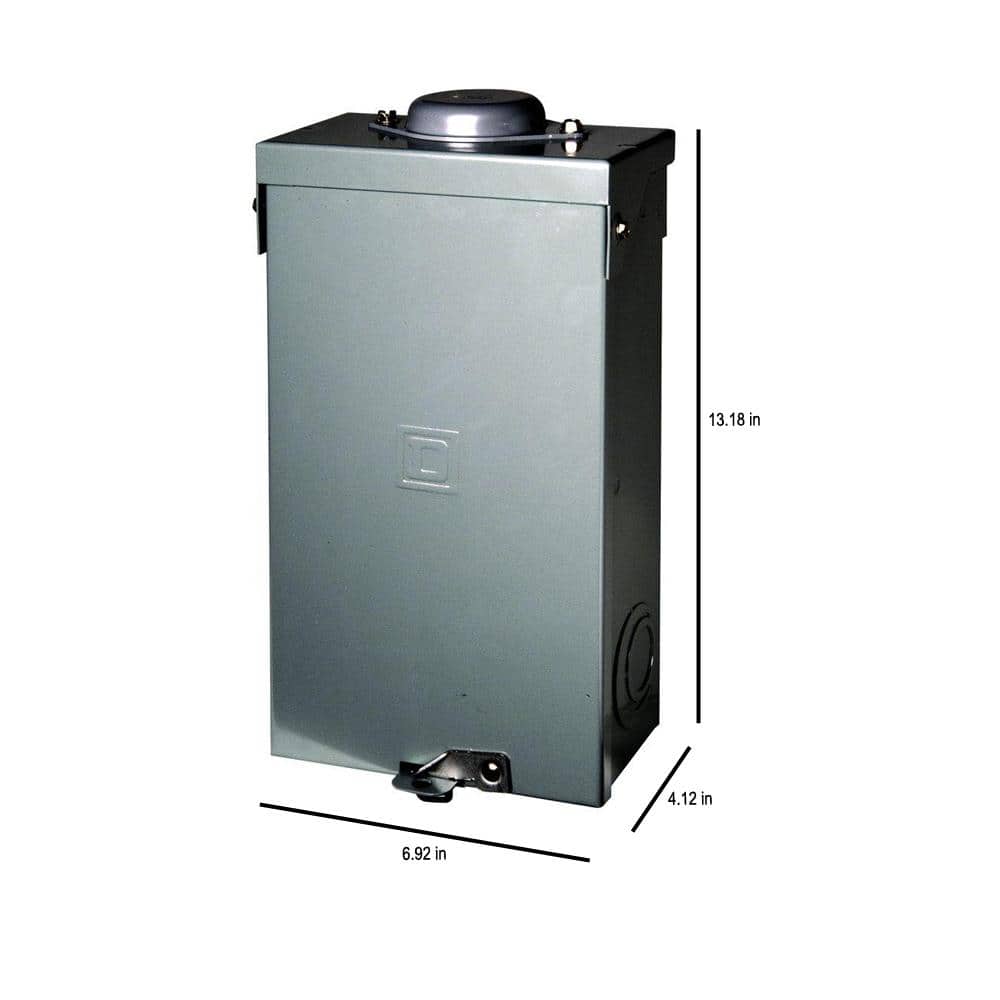

- Surface Mount Design: Compact 13.18 x 6.92 x 4.12 in. housing with top hub/bottom knockout options
- QO Series Compatibility: Works with Square D QO 2-pole breakers; ground bar PKOGTA-2 and B-hubs sold separately
Please check the Product Data Sheet Here
Specifications Table:
| Specification | Details |
|---|---|
| Series | QO |
| Maximum Amperage | 100 A |
| Poles | 2 |
| Voltage | 120/240 V AC |
| Phase Type | Single phase |
| Breaker Box Type | Main Breaker Panel |
| Electrical Product Type | Load Center and Breaker Kit |
| Indoor/Outdoor | Outdoor |
| NEMA Rating | Type 3R |
| Mounting Type | Surface |
| Included | Circuit breaker and cover (QO2100 2-pole 100A, 10 kA interrupt rating) |
| Number of Circuits | 1 |
| Number of Spaces | 0 |
| Number of Pieces | 1 |
| Bus Bar | Copper |
| Top Hub | 2-1/2 in. type B hub (sold separately) |
| Bottom Knockout | 1-1/2 in. maximum knockout |
| Certifications | UL Listed; ANSI certified |
| Product Height | 13.18 in |
| Product Width | 6.92 in |
| Product Depth | 4.12 in |
| Product Weight | 8.91 lb |
Frequently Asked Questions (FAQ):
Q: Is this enclosure suitable as service entrance equipment?
A: It can be used as an entrance device for compliance up to 2017 NEC; otherwise it is a non‑service entrance device. Check local code and inspector requirements.
Q: What voltage and phase does it support?
A: 120/240 VAC, single phase.
Q: Is a ground bar included?
A: No. The PKOGTA-2 ground bar kit is sold separately.
Q: What is the interruption rating of the included breaker?
A: 10 kAIC.
Q: Can I use single‑pole QO breakers in this enclosure?
A: No. It is not for use with single‑pole QO breakers; compatible with QO 2‑pole breakers.
Streamlined Exterior Power Control
This minimal, slate-gray enclosure offers a clean, unobtrusive profile for outdoor power management. The crisp lid and compact proportions keep visual noise low while delivering dependable functionality. Style it beside HVAC or pool equipment, aligning the top hub for a tidy conduit run and a cohesive exterior system. A refined essential that elevates everyday utility with quiet confidence.
Choose this QO outdoor breaker enclosure for a reliable, rainproof 100A exterior disconnect that installs cleanly and meets code with confidence.
