Schneider Electric
Square D Homeline 200 Amp 40-Space 80-Circuit Indoor Main Breaker Qwik-Grip Plug-On Neutral Load Center with Surge SPD Value Pack
Published price — same for everyone
In stock
SKU HOM4080M200PQCSVP
The price on the page is the price.
Find it, price it, order it — without a phone call. Questions on spec, quantity, or freight? Contact us.
Buying more than one thing? Start your list — however you have itFreight and delivery are calculated at checkout — no surprise charges.
Details
Homeline 200A 40-Space Indoor Main Breaker Load Center w/ Surge SPD
This Square D Homeline load center delivers 200A service with 40 spaces/80 circuits in a compact NEMA 1 indoor cabinet. Featuring Plug-On Neutral and Qwik-Grip wire entry for faster, cleaner installs, it includes a 50kA whole-home surge protective device and a selection of Homeline breakers.
Key Features:

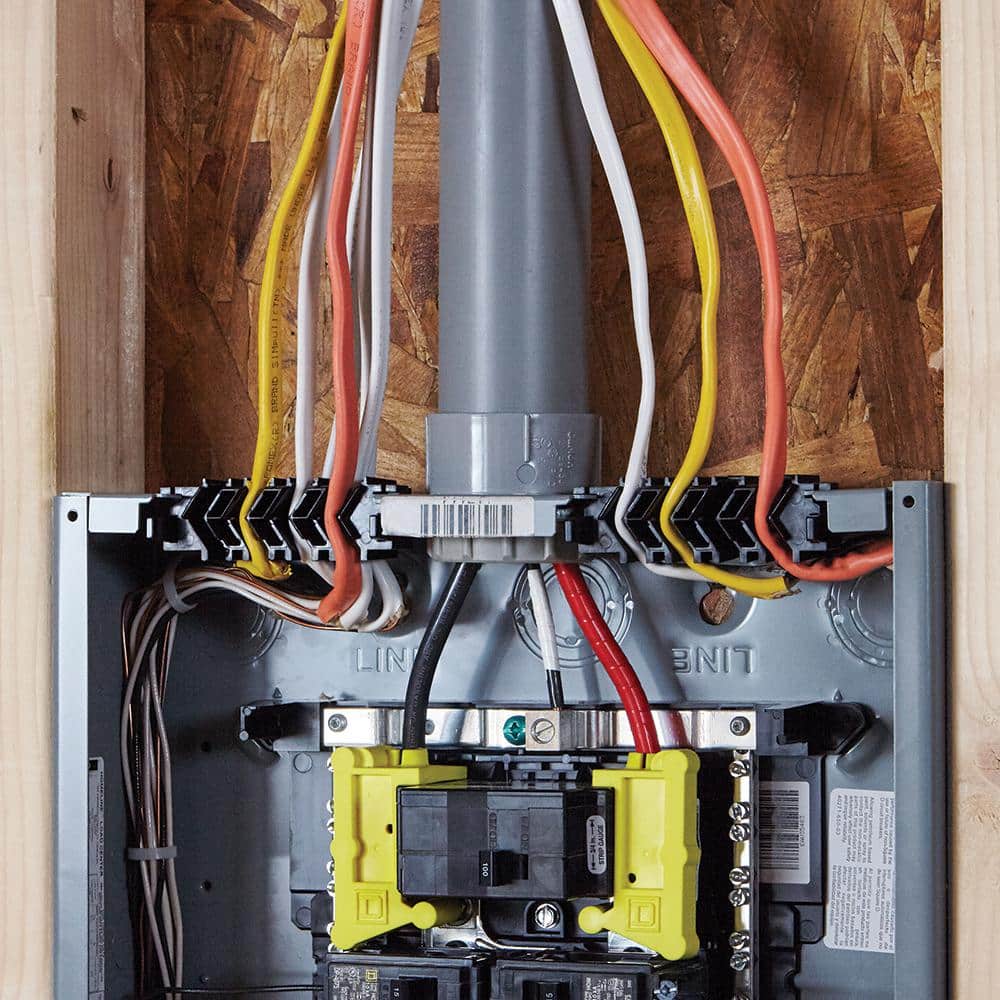

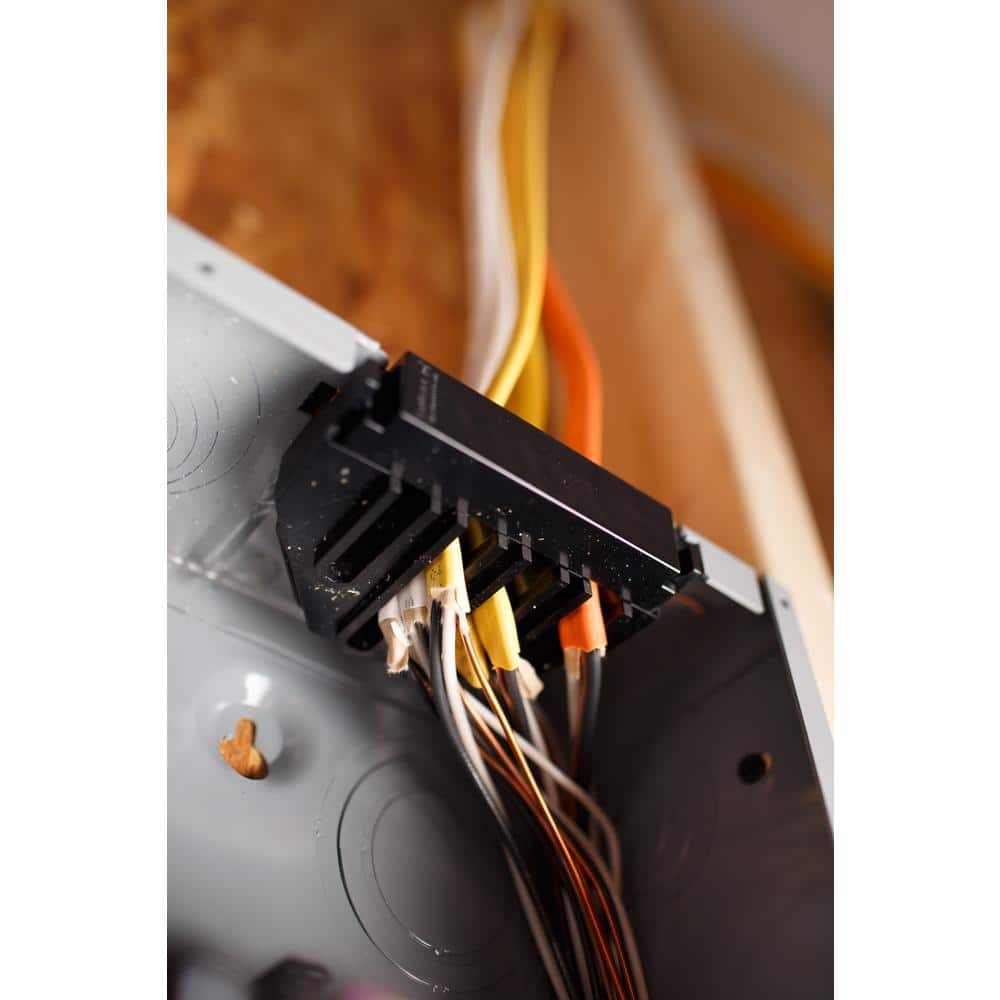

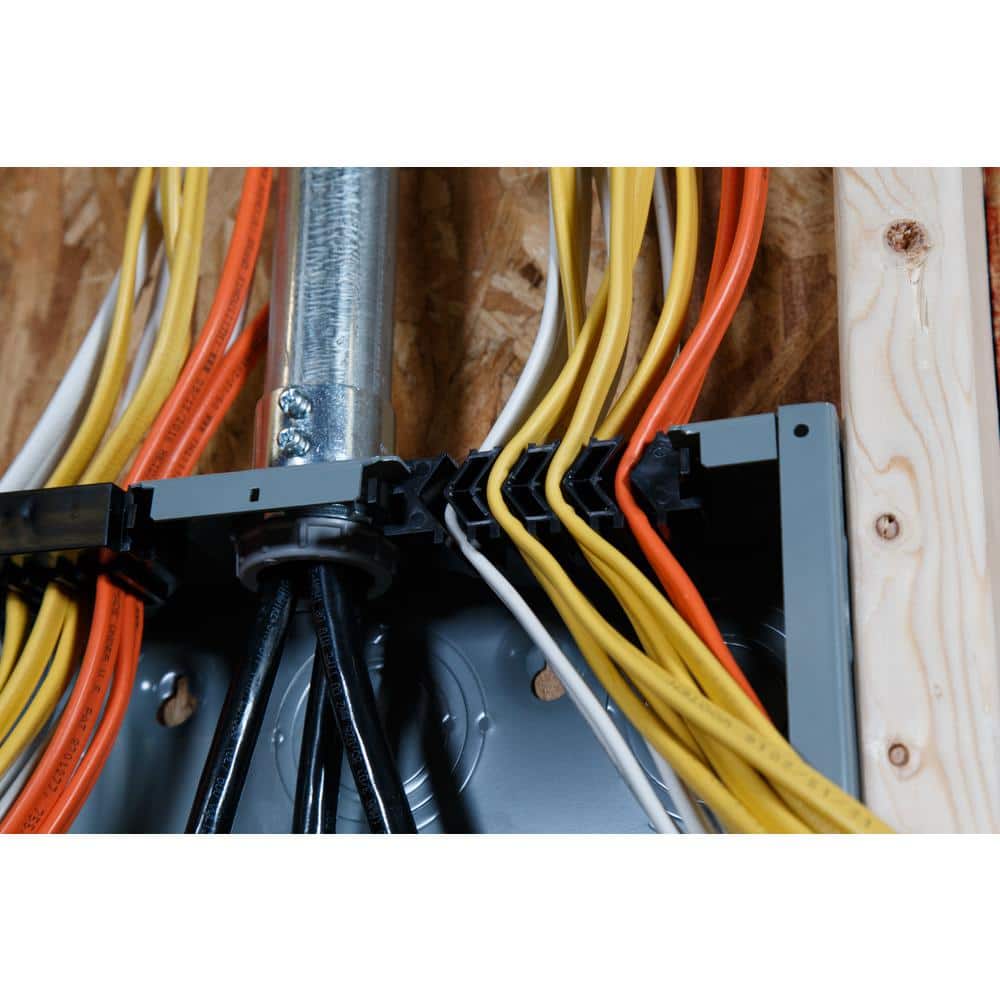

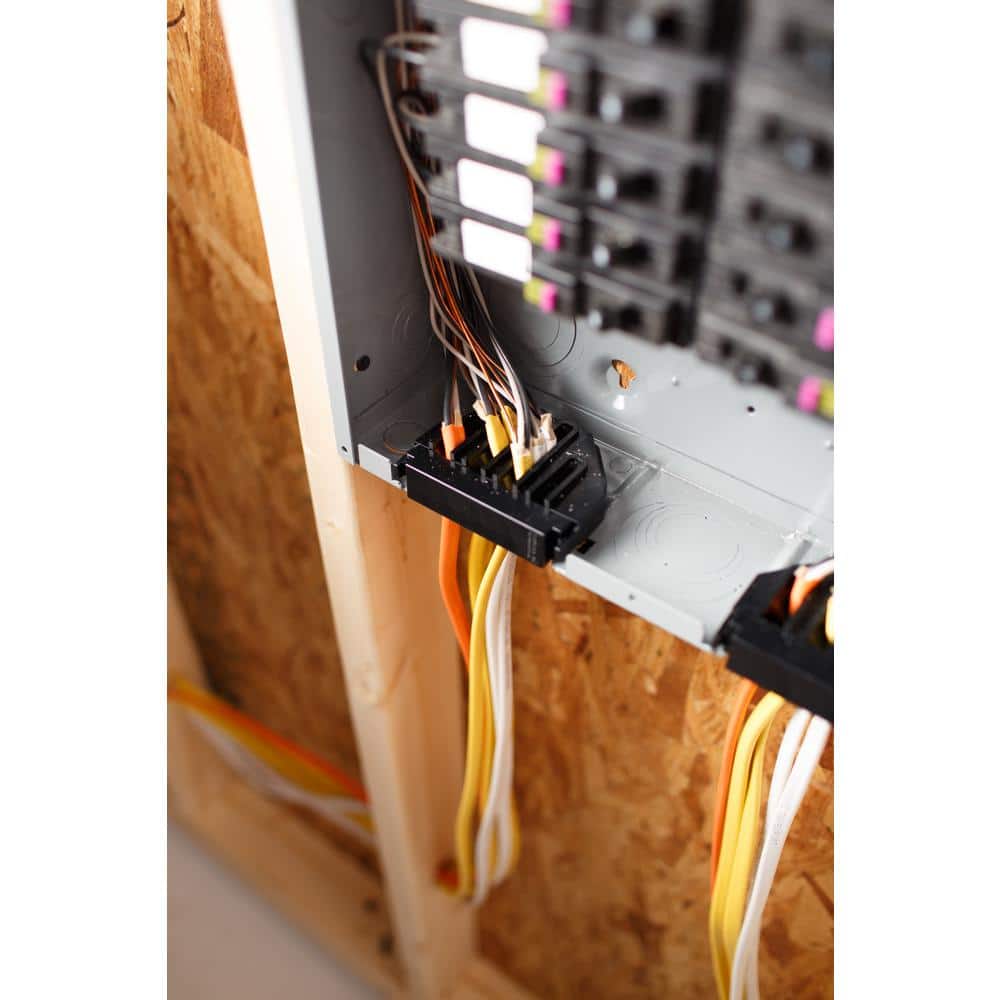

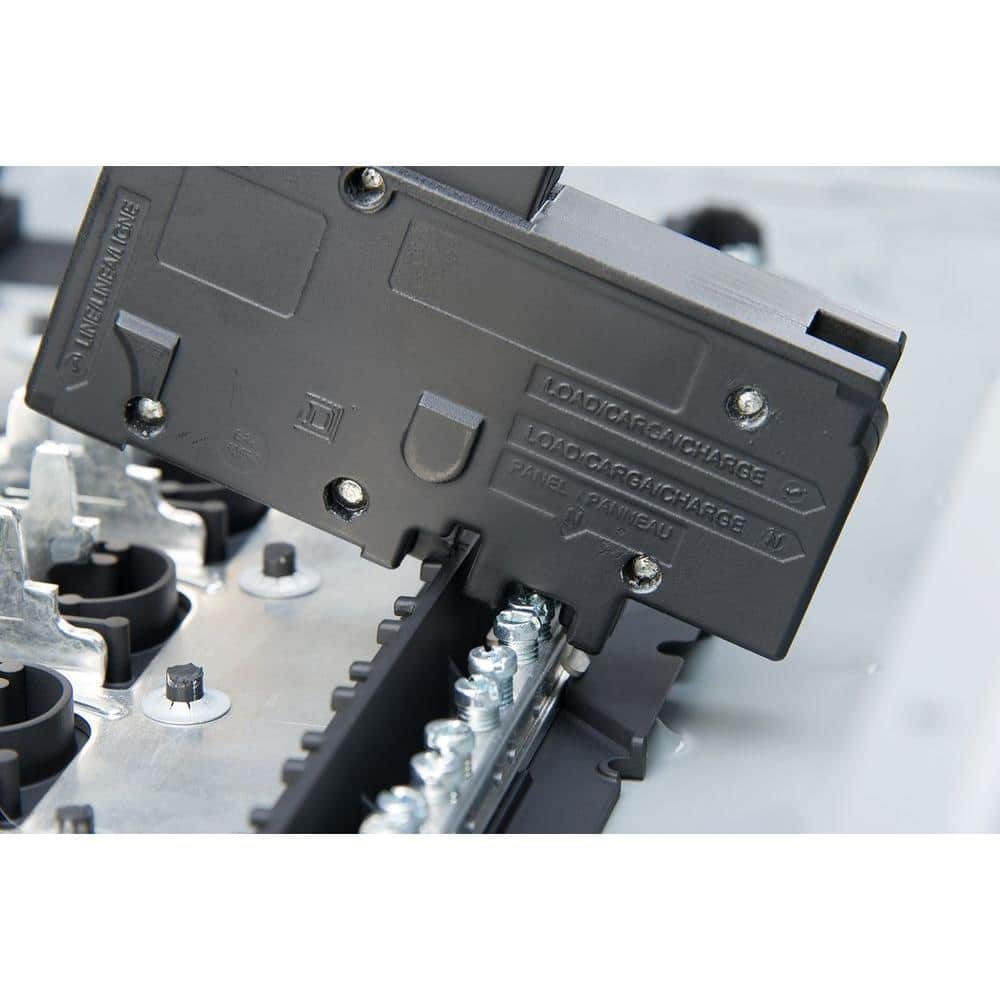

- Fast Installation: Plug-On Neutral and Qwik-Grip eliminate pigtails and reduce wiring time

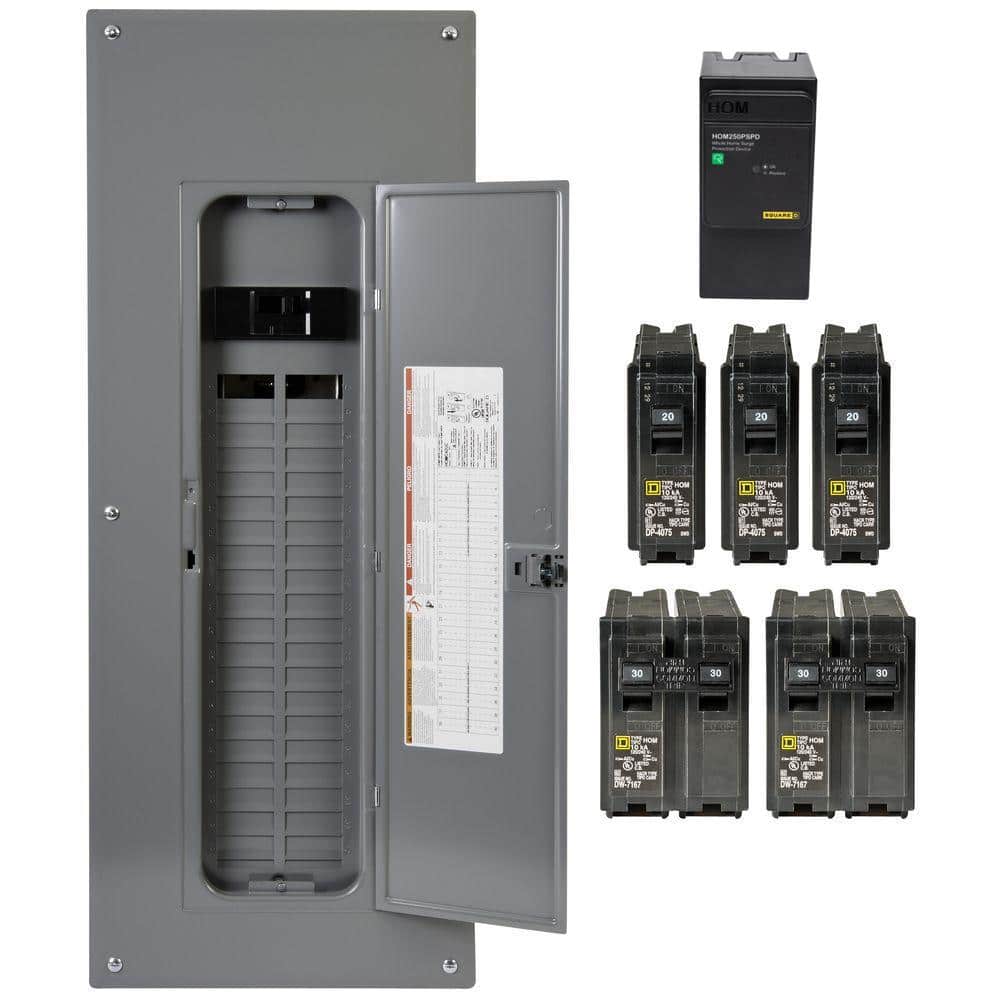

- Complete Value Pack: Includes cover, HOM250PSPD surge device, (3) HOM120 and (2) HOM230 breakers
- High Capacity & Flexibility: 40 spaces/80 circuits; accepts full-size, tandem, or quad breakers

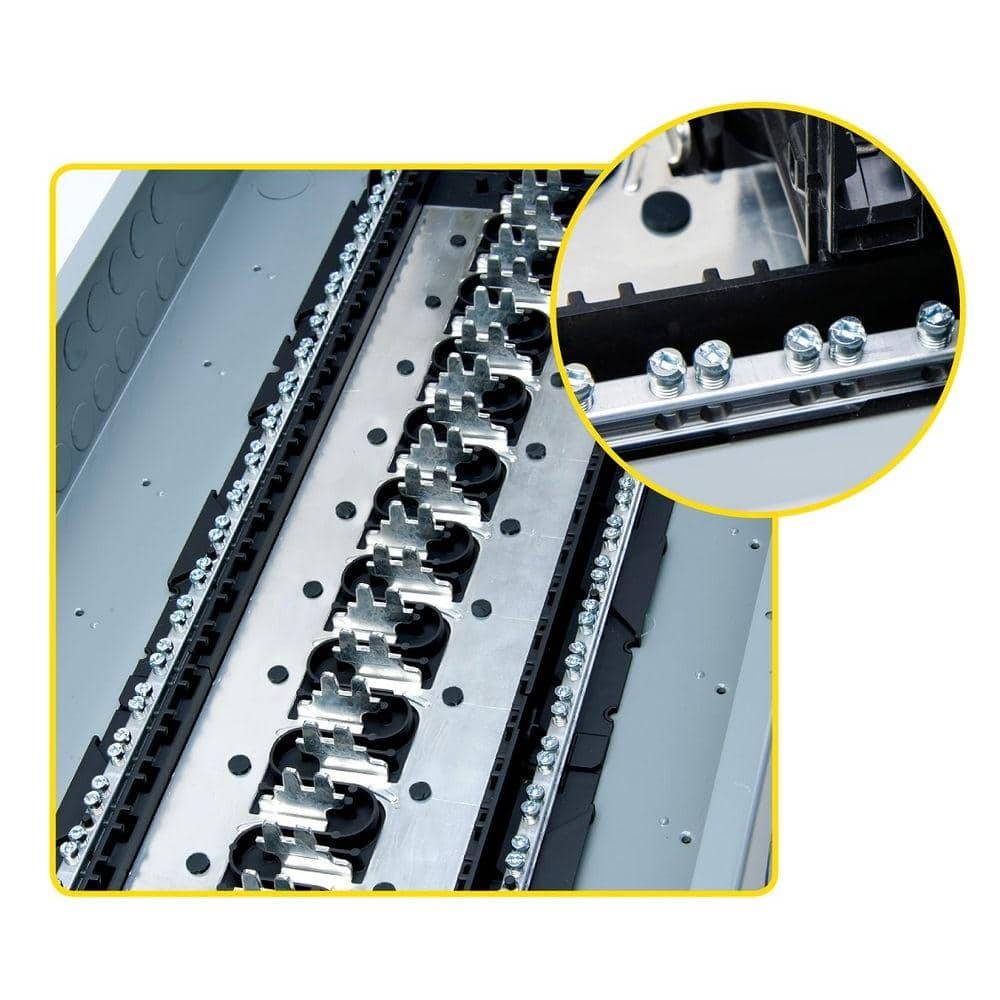

- Durable Build: Thermoplastic interior with plated aluminum bus bar; UL Listed
- Versatile Mounting: Flush or surface mount; overhead or underground feed
Please check the Product Data Sheet Here
Specifications Table:
| Specification | Details |
|---|---|
| Series | Homeline |
| Breaker Box Type | Main Breaker Panel |
| Maximum Amperage | 200 A |
| Number of Spaces | 40 |
| Number of Circuits | 80 |
| Voltage | 120/240 V AC |
| Indoor/Outdoor | Indoor |
| NEMA Rating | NEMA 1 |
| Mounting Type | Flush or Surface |
| Connection Type | Plug-On Neutral |
| Included Components | Cover, HOM250PSPD surge device, (3) HOM120 20A single-pole breakers, (2) HOM230 30A double-pole breakers |
| Bus Bar Material | Aluminum (plated) |
| Short Circuit Current Rating | 22,000 AIR |
| Surge Protection | 50,000 A/phase max; 5-year warranty; $50,000 downstream equipment protection |
| Feed Type | Overhead/Underground (by rotating device) |
| Ground/Neutral Bars | Accept up to (3) #10–14 equipment grounds; multiple ground bar mounting locations |
| Certifications | UL Listed |
| Product Height | 39.37 in |
| Product Width | 14.25 in |
| Product Depth | 3.75 in |
| Product Weight | 40.11 lb |
| Phase | Single phase |
Frequently Asked Questions (FAQ):
Q: What breakers are compatible?
A: It is listed only for Square D Homeline branch circuit breakers, including Plug-On Neutral AF/GF devices.
Q: Is this panel for indoor use?
A: Yes, it is NEMA 1 rated for indoor installations.
Q: What surge protection is included?
A: A HOM250PSPD Plug-On Neutral whole-home SPD rated 50,000A per phase with 5-year warranty and $50,000 downstream equipment protection.
Q: How many circuits can it support?
A: Up to 80 circuits across 40 spaces; each space can accept full-size, tandem, or quad breakers as permitted.

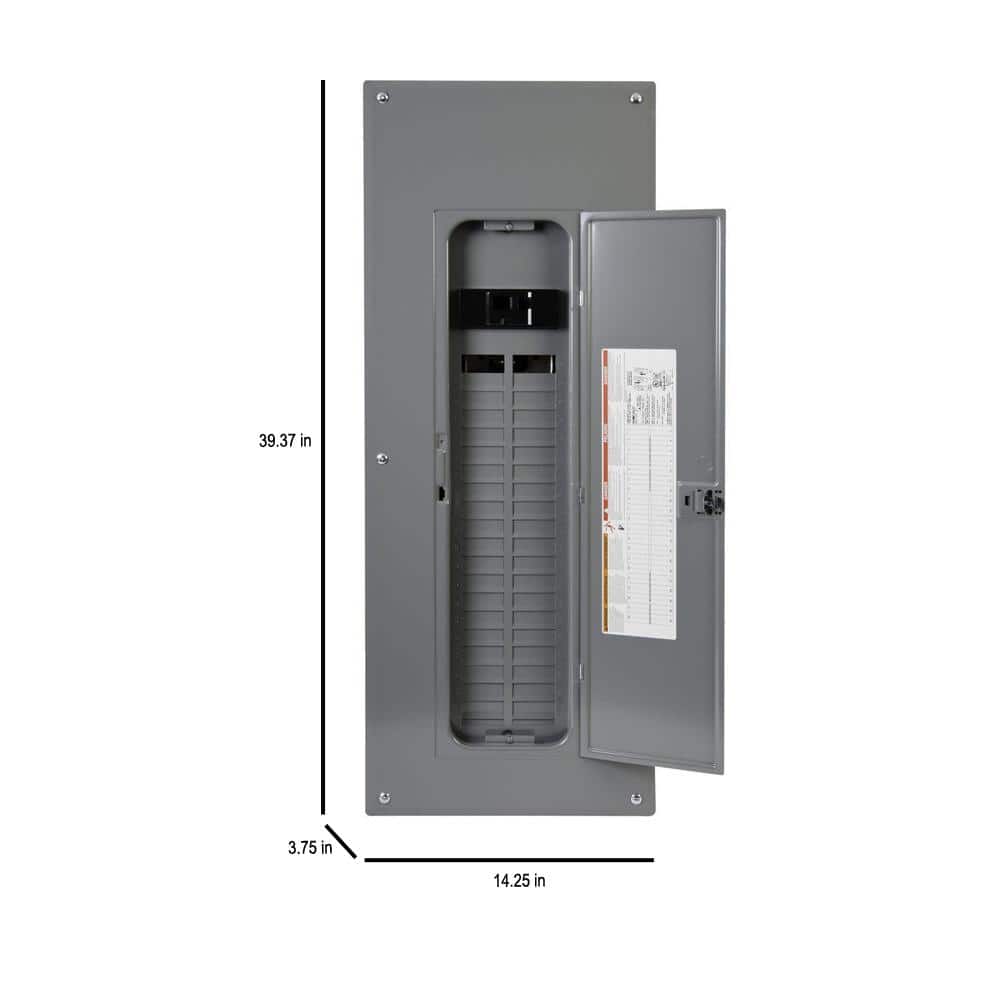

Q: What are the panel dimensions?
A: Approximately 39.37 in H x 14.25 in W x 3.75 in D.
Streamlined Power, Subtle Presence
This Homeline panel tucks neatly into a wall with a satin-steel presence that feels purposeful and refined. The plug-on neutral architecture keeps the interior visually clean—no messy pigtails—so your mechanical room feels as curated as the rest of the home. Pair it with a tidy wire management layout and labeled circuits for an architecturally crisp utility space. Reliable surge protection and a sleek cover make it an essential cornerstone of modern, luxury living.
Upgrade to fast, clean power distribution with built‑in whole‑home surge protection—add this Homeline value pack to your project today.
